Emergency Eyewash Stations
emergency eyewash station

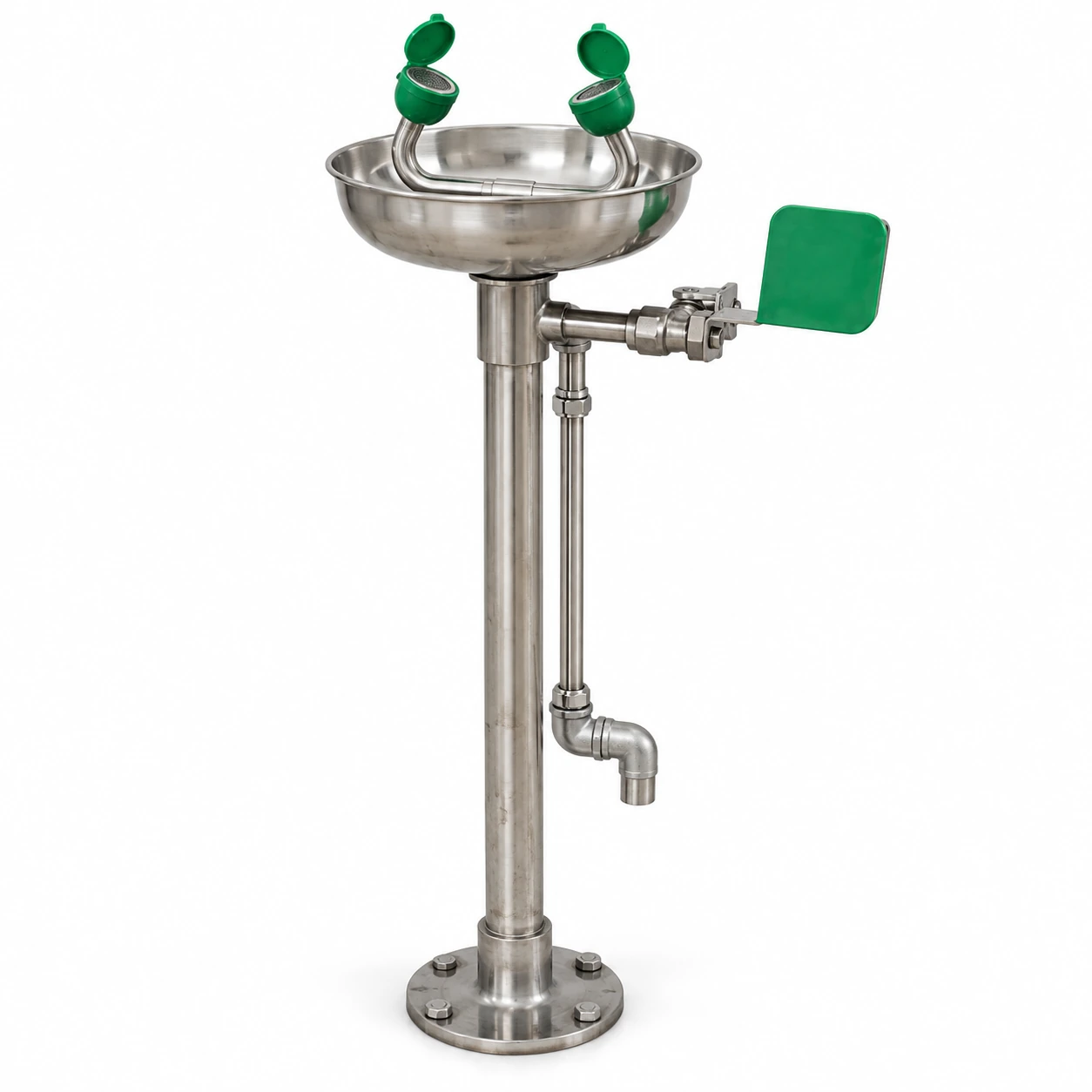

| Mounting | Wall bracket, floor-anchored pedestal or supported self-contained reservoir |
|---|---|
| Bowl diameter | 280 mm ABS or approximately 283 mm stainless steel, according to fixture construction |
| Reservoir capacities | 34.1 L, 35 L or 60.6 L gravity-fed assemblies |
| Materials | 304 stainless steel bowl; coated support pipe or stainless steel construction; polyethylene reservoir options |
| Activation | Stay-open hand paddle for fixed units; pull-down tray for gravity-fed units |
| Supply connection | Fixed units: 1/2-inch NPT or Rp 1/2, matched to the selected valve and site pipework |
| Waste connection | Fixed bowl: 1-1/4-inch connection or tailpiece; reservoir units require a suitable discharge arrangement |
| Accessories | Protective nozzle covers, identification sign, emergency-rated tempering valve and compatible replacement heads |
Select a complete matched assembly. Reservoir sizes, bowl materials and pipe threads belong to different configurations; the approved equipment drawing defines the supplied combination.
Mounting, materials, connections and supporting accessories can be configured for the workplace and installation conditions.
An emergency eyewash station brings controlled flushing fluid to a worker who may be unable to see clearly or operate a normal tap. A useful purchase combines an accessible fixture with a dependable fluid supply, simple activation and a maintenance arrangement that keeps it ready between incidents.
Begin with the exposure, then choose the fixture
A compact bowl is suitable only when the required protection is eye flushing. An eye/face wash has a different coverage duty, and a body splash may require an emergency shower as well. Adding more pressure to a small eyewash does not turn it into either device. Review the substances, handling tasks and exposed body areas before choosing the equipment.
Fixed workplace or changing work area?
A plumbed station suits a permanent position with a reliable water service. A self-contained station carries its own fluid where pipework is unavailable, but introduces reservoir servicing and replenishment duties. A small personal rinse bottle is supplementary equipment rather than a substitute for a primary station.
Specify the flushing duty, not just a green sign
Where ANSI/ISEA Z358.1 is the specified acceptance standard, an eyewash must deliver at least 1.5 L/min for 15 minutes, with a suitable pattern for both eyes and tepid fluid in the 16–38°C range. These criteria apply to the selected equipment and its installed supply. They cannot be established from bowl diameter or appearance. The ISEA equipment selection guide explains the relevant equipment categories and checks.
The access route is part of the installation
A station behind stored cartons, a locked door or an operating machine can be unusable when needed. Assess the actual route from the hazard, including temporary deliveries and changes between shifts. Place the control where the user can find and activate it without first removing a separate cover or rearranging tools. Protect the heads from workplace contamination without making that protection an obstacle.
Plan where discharged water will go and how nearby electrical equipment will be protected. Drainage or waste collection must not obstruct the approach. For corrosive substances, the safety data sheet and workplace assessment may call for a closer position or additional equipment; a convenient plumbing point alone is not a sufficient location decision.
Readiness continues after installation
Commissioning should verify the spray pattern, sustained delivery, temperature and operation under the site's actual supply conditions. Routine maintenance then keeps the nozzles, covers, valves and fluid in usable condition. A visible inspection record helps the responsible team identify missed checks and resolve faults before the station is needed.
A useful purchasing brief
Provide the exposure area, required equipment standard, mounting surface, water service and drainage arrangement. Include any need for eye/face coverage, a shower, frost protection or accessible use. shengtongJH coordinates the equipment configuration and supply scope so that the station, installation fittings and maintenance parts can be considered together. Discuss the proposed location and equipment requirement.
