Cleanroom Doors / Windows
cleanroom doors from china
| Door format | Single leaf; equal or unequal double leaf |
|---|---|
| Nominal door sizes, W × H × T (mm) | 900 × 2100 × 42; 1828 × 2100 × 42 |
| Leaf finish | Powder-coated steel, stainless steel or aluminium skin |
| Frame | Aluminium profile or formed steel; matched to the wall system |
| Sealing | Perimeter gasket; bottom drop seal option |
| Glazing and hardware | Flush vision panel; lever or push plate; closer and access-control options |
Nominal door sizes are not clear-passage or wall-opening dimensions. Frame envelope, handing and usable opening are defined by the selected doorset drawing.
Door construction, opening method, accessories and shipment packing can be configured for the destination project.
Buying cleanroom doors from China involves more than selecting a leaf finish. The useful deliverable is a complete, identifiable doorset package that can be received, assembled and installed against the destination opening schedule.
Decide what travels assembled

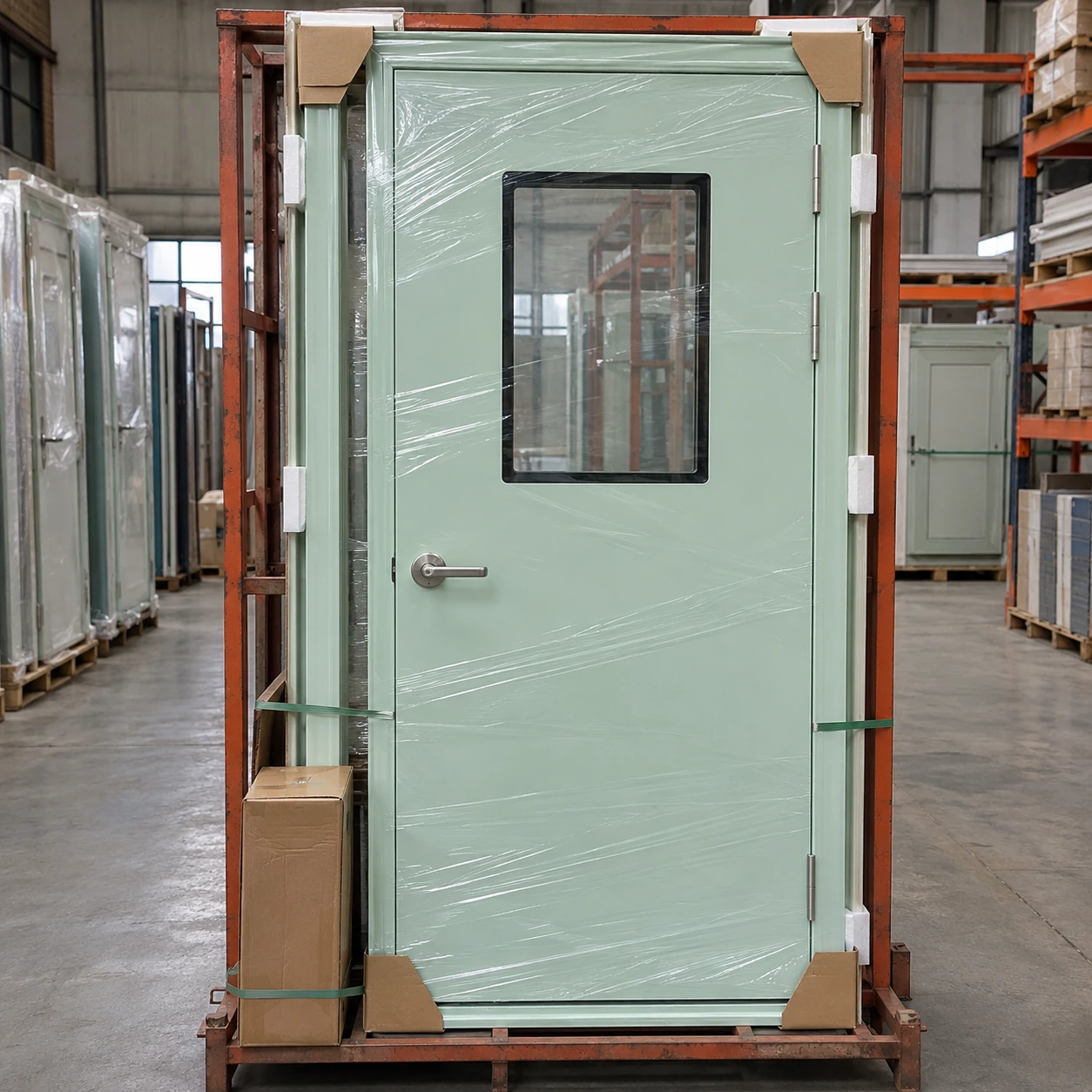

A fully fitted door and frame can preserve their relationship during delivery, but the packed unit may be difficult to handle through the destination building. A knock-down frame uses less space and may simplify access, while moving more alignment and sealing work to the installer.
The choice should follow the receiving route and the skill available on site. If components are separated, joint details, handed parts and the reassembly sequence need to be clear. Shipping an unlabelled bundle of frame sections transfers avoidable uncertainty to the installation team.
Use one opening identity across the package
Drawing
Shows the clear passage, overall frame, wall opening, handing and finish assigned to the door.
Physical parts
Leaf, frame, glazing and hardware remain associated with the same opening, including items removed for transport.
Records
Packing list, component list and installation instructions use the same identifiers so receiving and installation can be reconciled.
Avoid specification gaps between suppliers
The wall supplier may assume the frame includes reinforcement, while the door supplier may assume it is already built into the panel. That gap should be closed before manufacture. The interface needs a defined load path, fixing detail and finished perimeter treatment.
For automatic doors, the operator and leaf must be selected together. Power supply, sensors, interlock contacts and alarm inputs should be identified rather than described only as an automatic option.
Protect more than the visible face
Hinge edges, projecting hardware and frame corners are vulnerable during handling. Support should prevent the assembly from twisting, with loose components packed so they cannot strike the leaf. Storage conditions at the receiving site also affect the finish and seals.
Receiving records should distinguish transport damage from an installation mismatch. Photographs and package identification are useful when a problem needs to be traced.
Match evidence to the destination use
A supplier's general brochure does not establish the performance of every door construction. Fire, smoke, leakage or chemical-compatibility requirements should be tied to the offered assembly. The destination importer and project team determine the applicable conformity and approval route.
shengtongjh acts as a procurement integrator, coordinating the selected doors, materials and supply information. Installation, commissioning, local approvals and any service arrangement should be explicitly included or allocated in the order.
For the specific fabrication details of a coated-metal leaf, see China steel cleanroom doors. For an opening that cannot accept a standard frame, resolve the custom interface before packing is planned.
Door construction, opening method, accessories and shipment packing can be configured for the destination project.
