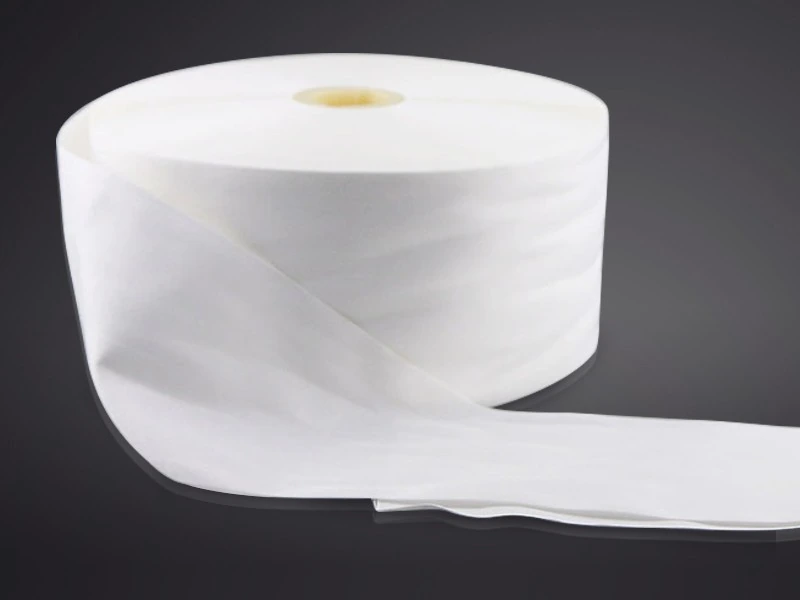

Roll presentation for HS909Q
Photos show product, fabric and converting views from this roll range. Final roll size and core follow the approved order.
Cleanroom Wiper Rolls
HS909Q High-Density Cleanroom Wiper Roll
| Product code | HS909Q |
|---|---|
| Fabric / surface | High-density microfiber; Straight pattern |
| Fabric weight | 170 g/m² |
| Cloth thickness | 0.48 mm |
| Edge finish | Ultrasonic or heat-cut |
| Custom roll sizes | Width 8–250 mm; length 10–200 m, subject to fabric and machine fit |
| Core interface | 25.2 mm bore shown; core sizes 25–76 mm listed. Confirm bore and core length by drawing. |
| Clean-processing options | Class 10 / 100 / 1000; agree supply protocol |
| Water absorption (listed) | ≥300 — unit and test method require confirmation |
| Packaging | 1 roll/bag; box and carton quantity by order. Range packing: 10 rolls/box, 8 boxes/carton. |
| Documentation | Request current RoHS report for the selected supply |
| Applications | LCD panels; optical products |
Clean-processing labels describe supply options, not an ISO class or sterility claim. Confirm the absorption test and the selected roll specification before order.
HS909Q combines high-density microfiber with a straight surface pattern. Its fabric weight distinguishes it from other high-density rolls, while individual bagging supports controlled handling.

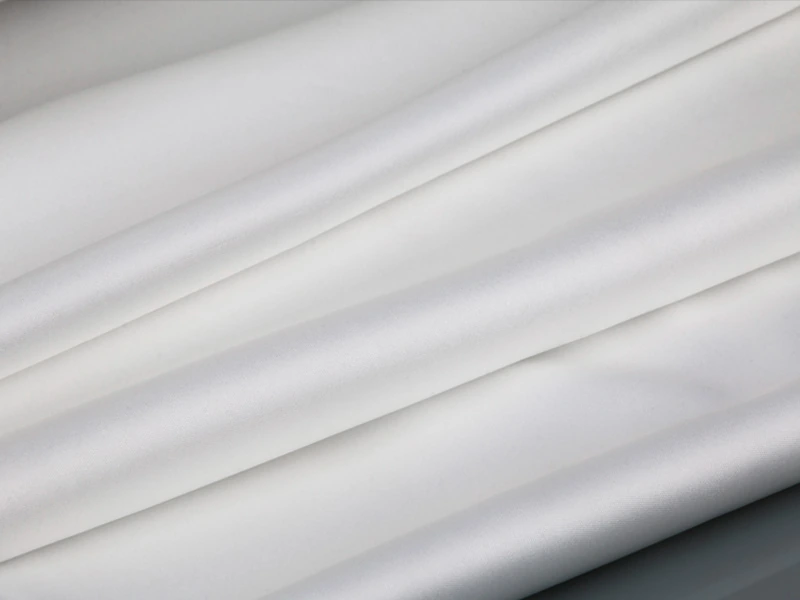

High-density microfiber with a distinct fabric weight
HS909Q is a straight-pattern, high-density microfiber roll for LCD-panel and optical-product cleaning. Its listed thickness is close to HS909D, while the fabric weight is lower. Thickness and basis weight describe different aspects of the cloth and should remain separate on an approved material specification.
What the packaged roll tells you
Individual packaging helps protect the roll during storage and handling. Inspect the seal and label before opening, then handle the exposed cloth in the intended work area. Packaging appearance does not demonstrate a particular cleanliness result; agree the required supply condition and test data with the order.
What the cleaning trial tells you
Run the actual surface, liquid and contact head. Look for liquid distribution, pickup of the target residue and the condition of the surface after drying. Keep the advance distance consistent while comparing materials so used-cloth exposure does not distort the result.
Record the useful stopping point
When defining a roll-change procedure, include the usable leading and trailing sections and the point at which the process must stop. A nominal length does not mean every last section can be used by every machine. An agreed winding presentation helps operators load repeat supplies consistently.
Compare within the high-density range
Use HS909D as a separately specified alternative when reviewing fabric bulk and contact behavior. Keep the chosen code, clean-processing option and dimensional drawing together for purchasing and incoming inspection.
HS909Q roll specifications and packing can be customized to the approved cleaning setup and transfer procedure.
