Roll presentation for DP-1009F-2

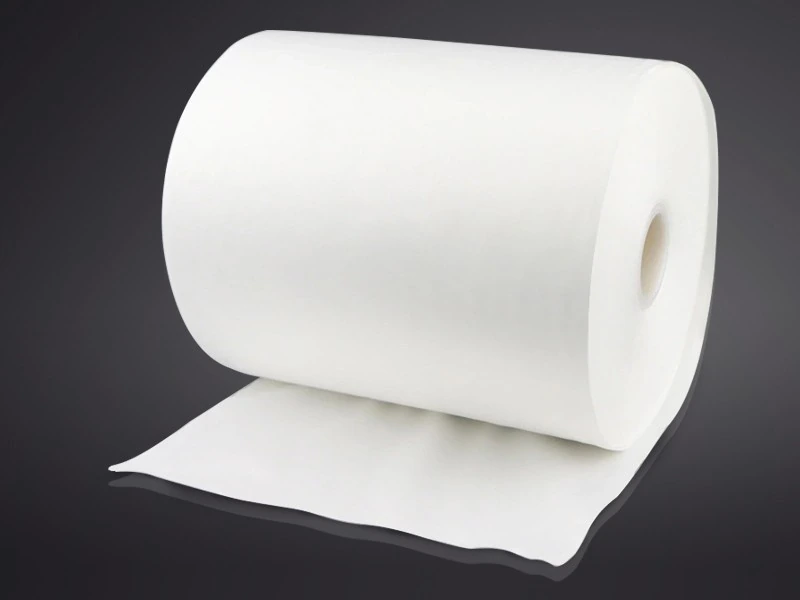

Photos show product, fabric and converting views from this roll range. Final roll size and core follow the approved order.
Cleanroom Wiper Rolls
DP-1009F-2 Polyester Wiper Roll
| Product code | DP-1009F-2 |
|---|---|
| Fabric / surface | Polyester cloth; Mesh pattern |
| Fabric weight | 275 g/m² |
| Cloth thickness | 0.85 mm |

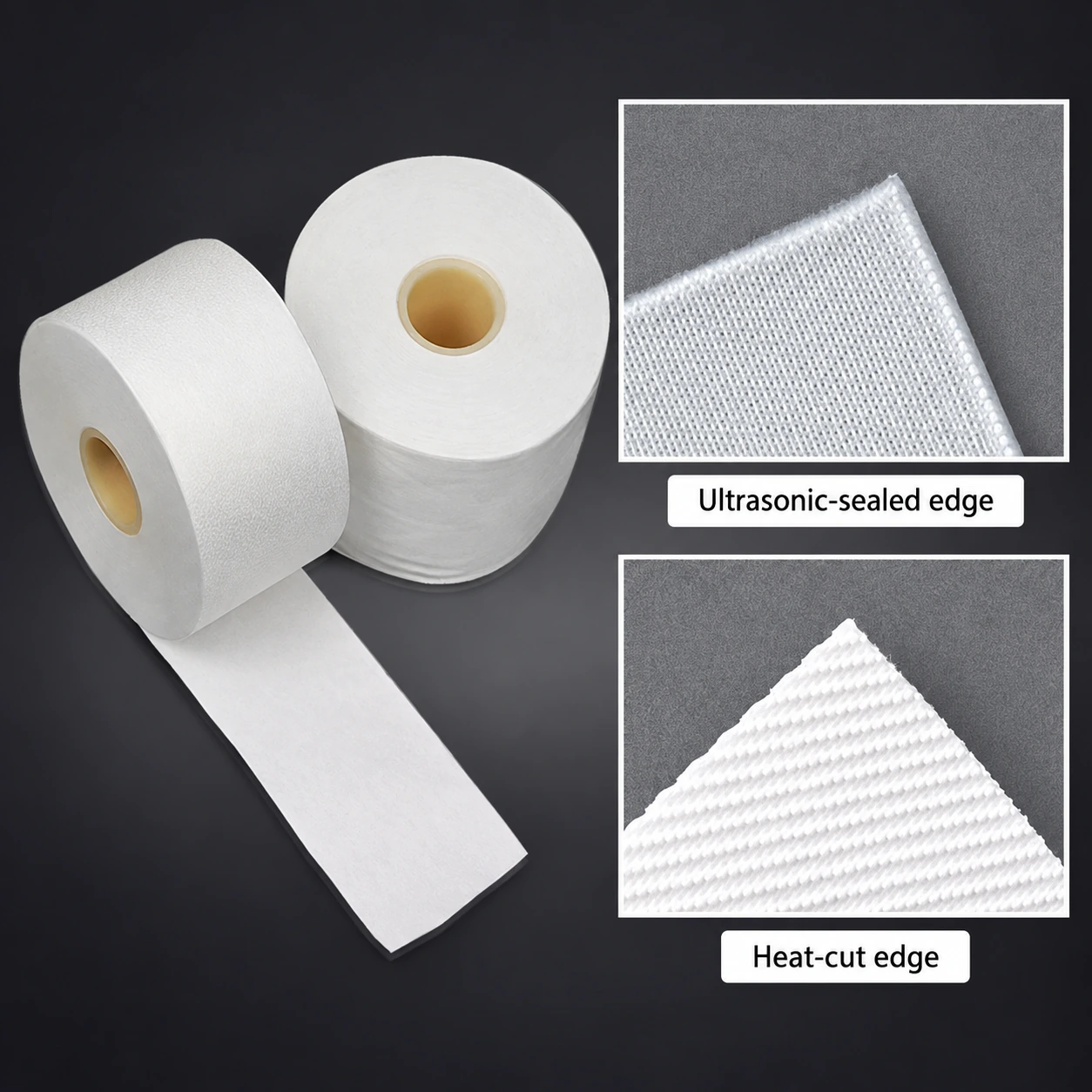

| Edge finish | Ultrasonic or heat-cut |

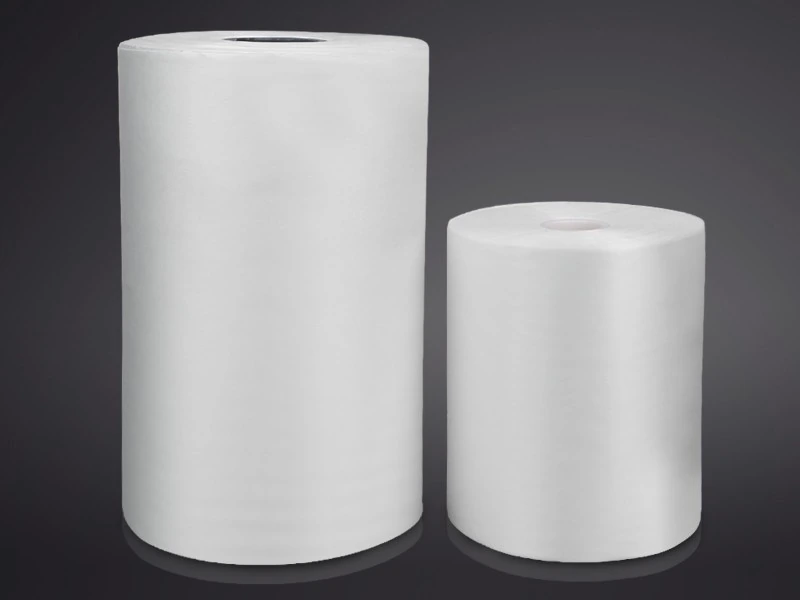

| Custom roll sizes | Width 8–250 mm; length 10–200 m, subject to fabric and machine fit |
| Core interface | 25.2 mm bore shown; core sizes 25–76 mm listed. Confirm bore and core length by drawing. |
| Clean-processing options | Class 100 / 1000; agree supply protocol |
| Water absorption (listed) | 230 — unit and test method require confirmation |

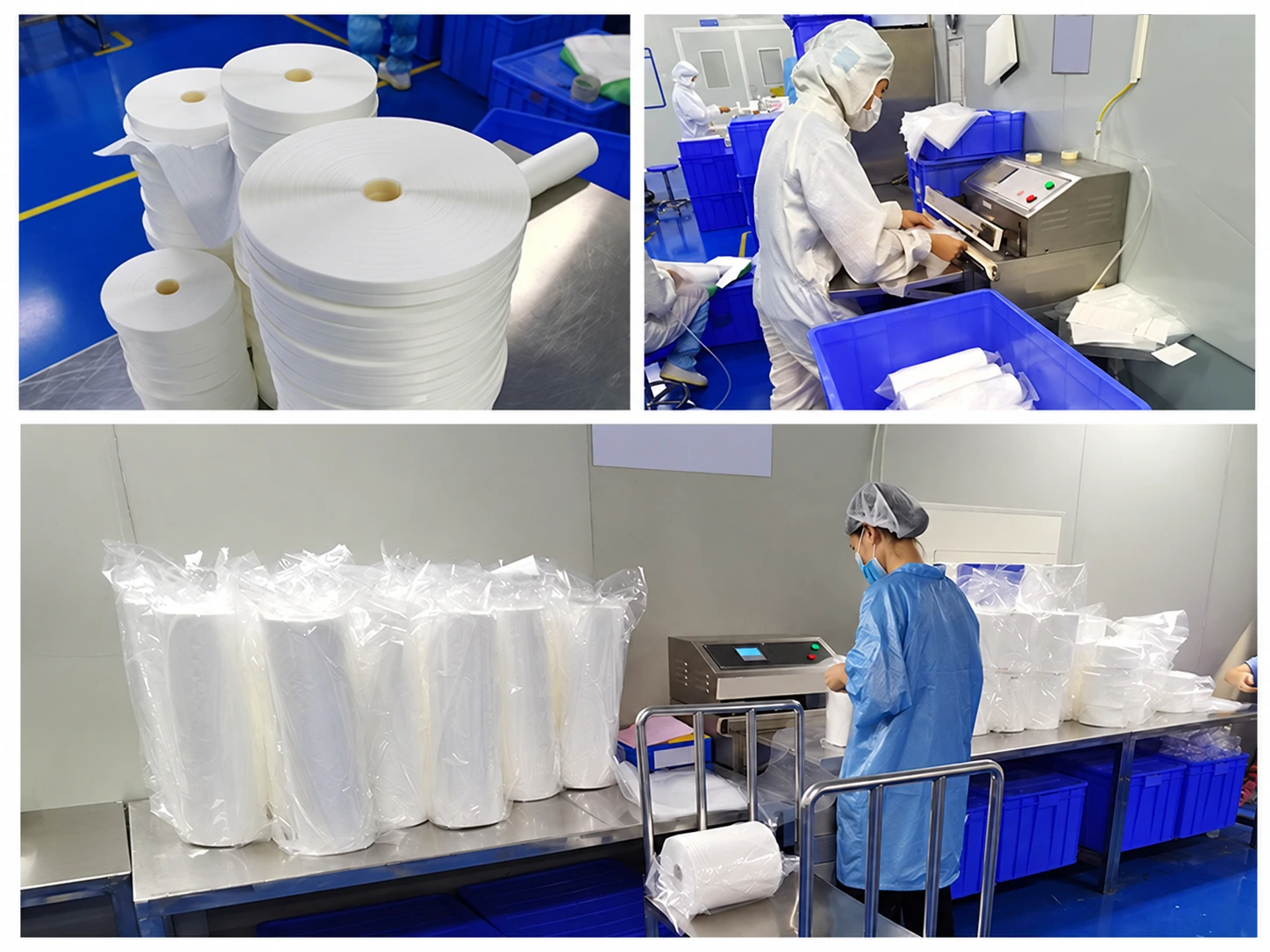

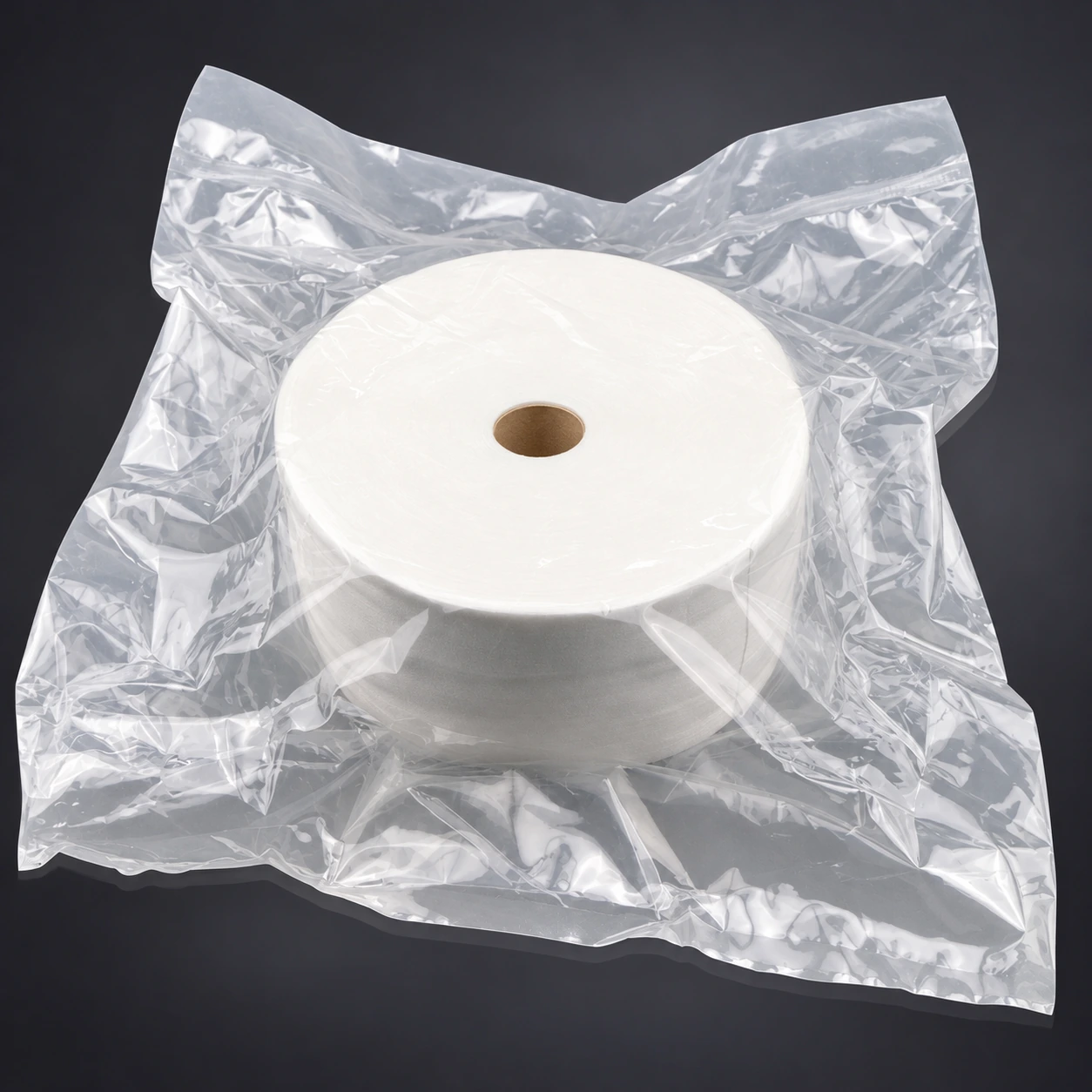

| Packaging | 1 roll/bag; box and carton quantity by order. Range packing: 10 rolls/box, 8 boxes/carton. |
| Documentation | Request current RoHS report for the selected supply |
| Applications | Optical products; precision electronics |
Clean-processing labels describe supply options, not an ISO class or sterility claim. Confirm the absorption test and the selected roll specification before order.

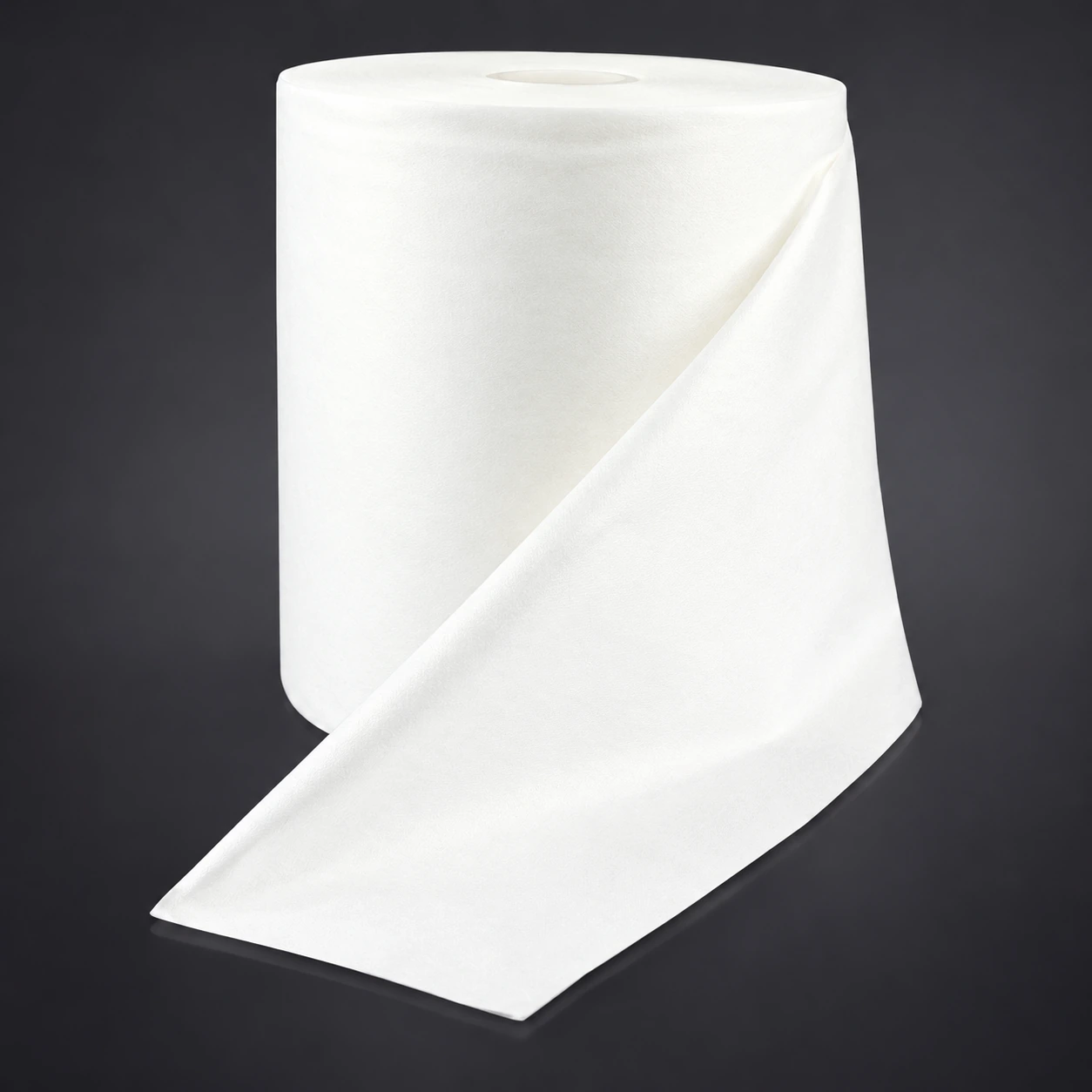

DP-1009F-2 is a substantial mesh-pattern polyester roll for optical and precision-electronics cleaning. Include both supply and take-up clearance when choosing this thicker fabric.
A substantial polyester web
DP-1009F-2 is the heaviest and thickest cloth listed among these fourteen roll products. The mesh-pattern polyester construction is offered for optical products and precision electronics. Its physical bulk makes machine clearance a central part of selection, especially when replacing a much thinner wiping web.
Check both the new roll and the used roll
A supply roll may fit at loading while the take-up roll reaches its clearance limit before the cloth is consumed. Confirm usable space on both sides of the machine. The nominal roll length alone does not describe the outside diameter, and wet or loosely wound used cloth may occupy a different volume.
Head clearance
Review the cloth path through narrow slots and beneath the contact head. Include joins, folds or lead-in arrangements required by the machine.
Liquid dose
Set wetting from the cleaning result and remaining surface film. A thicker fabric should not be assigned a liquid dose solely by comparison with a thinner roll.
Surface finish
Evaluate the mesh face and sealed edge on the actual coated or polished part before approving repeated contact.
Choose the material for the task
For a lighter polyester option, compare 1009W. Keep the selected fabric code tied to the cleaning procedure so a change in roll supply does not silently change the machine contact conditions.
DP-1009F-2 converting dimensions and packaging can be customized to the cleaning equipment and use conditions.
