Rounded polyester head
Fabric Swab 070BPRTS
| Model | 070BPRTS |
|---|---|
| Head material | Double-layer polyester |
| Head width × length | 4 × 12 mm |
| Overall length | 70 mm |
| Handle | PP; 2.8 mm wide |
| Handle colours | Blue / green / other options |
| Packing | 100 per inner pack; 500 per bag; 50 bags per carton |
Dimensions are nominal. Confirm the supplied configuration for close-fitting applications.
Contact shengtongjh for configuration and packing options suited to your cleaning process.

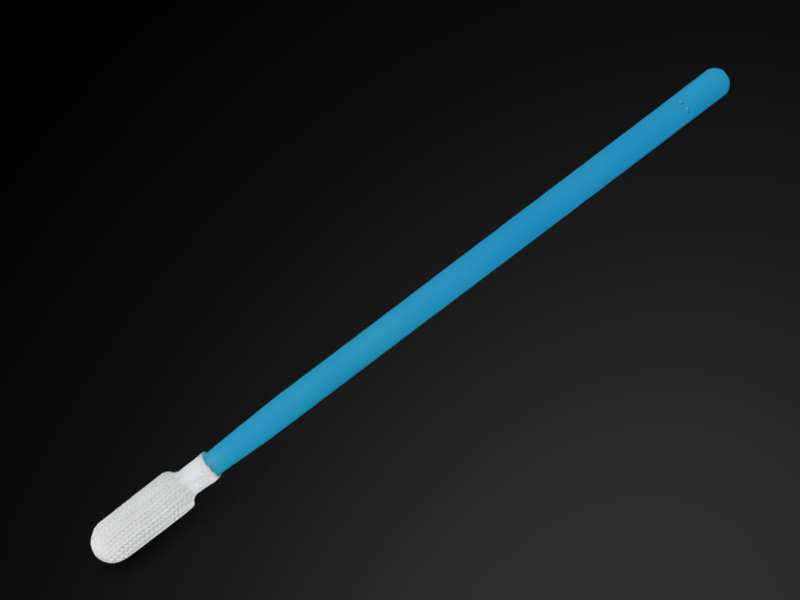

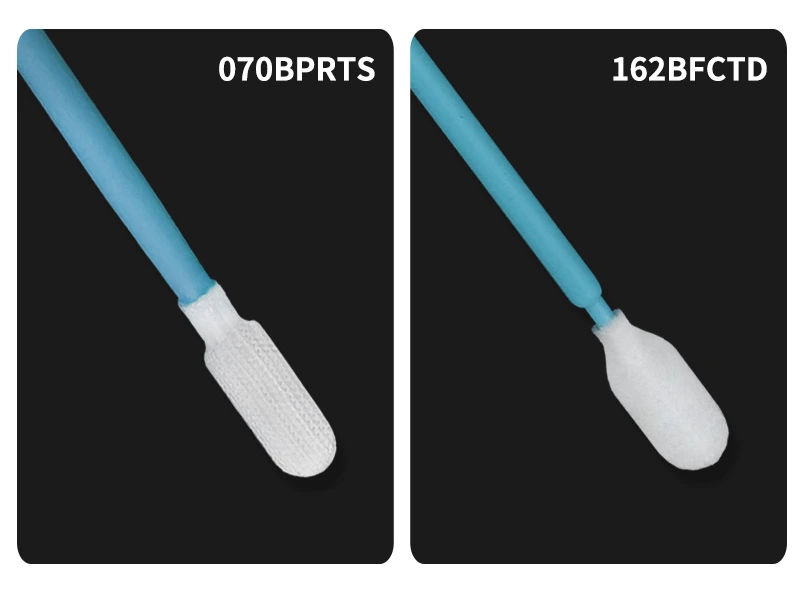

070BPRTS features a rounded double-layer polyester head. Its fuller profile offers a different contact shape from the narrow flat fabric tips used for confined edges and slots.
Let the rounded profile follow the surface
The head can be presented end-on for a small contact patch or at an angle for side contact. This helps the operator adjust to a shallow curved surface without using a pointed tip as a scraper. Keep pressure light enough that the support does not become the dominant contact.
Rotation is useful only while the head stays clean
Turning the handle between passes can expose a cleaner portion of fabric. It does not restore a loaded head. Once the swab has collected enough material to smear or transfer it, use a new one and keep the contaminated head away from the clean supply.
When cleaning around a circular recess, establish a clear direction and endpoint. Uncontrolled scrubbing can repeatedly move the same residue around the feature. Inspect the surface after drying under the method used for the actual assembly.
For a shallow cavity
Verify that the rounded head can move and withdraw without being squeezed tightly by the walls.
For a fine corner
A narrower pointed profile may provide better visibility. Do not compensate for an oversized head by applying additional force.
Product images and details
Contact shengtongjh for configuration and packing options suited to your cleaning process.
