Double-ended rounded tips
Double-Ended Paper Stem Swab BB-002
| Model | BB-002 |
|---|---|
| Type | Double-ended paper-stem swab |
| Nominal head diameter | 2.5 mm |
| Overall length | 110 mm |
| Handle width | 3 mm |
| Handle colour | White |
| Packing | 25 per bag; 100 bags per box; 20 boxes per carton |
Dimensions are nominal. Confirm the supplied configuration for close-fitting applications.
Contact shengtongjh for configuration and packing options suited to your cleaning process.
BB-002 is a paper-stem swab with an absorbent cleaning tip at each end. The rounded tips provide local contact for accessible parts, while the central stem gives a clear handling area.
Two tips need a clear handling method
A double-ended swab provides two working ends, but the unused end stays clean only if it is protected during the first operation. Hold the central stem without touching either tip. If the second end contacts a glove, bench or dirty part, do not treat it as a fresh cleaning surface.
For a wet-then-dry task, use the ends only according to a defined process that prevents fluid and contamination transferring between them. Separate swabs are preferable when the two stages must remain strictly isolated.
Paper stem behaviour matters
Keep the stem out of standing fluid and avoid prolonged soaking. Evaluate stiffness and head attachment with the intended cleaner and exposure time. A paper stem is a handling component, not proof of suitability for every solvent or a particular cleanliness class.
Check fit on the actual part
Use the listed dimensions as a starting point and confirm the supplied configuration for any close-fitting fixture. The rounded head should move freely over the intended surface. If access requires bending the stem or forcing the tip, choose a more suitable profile.

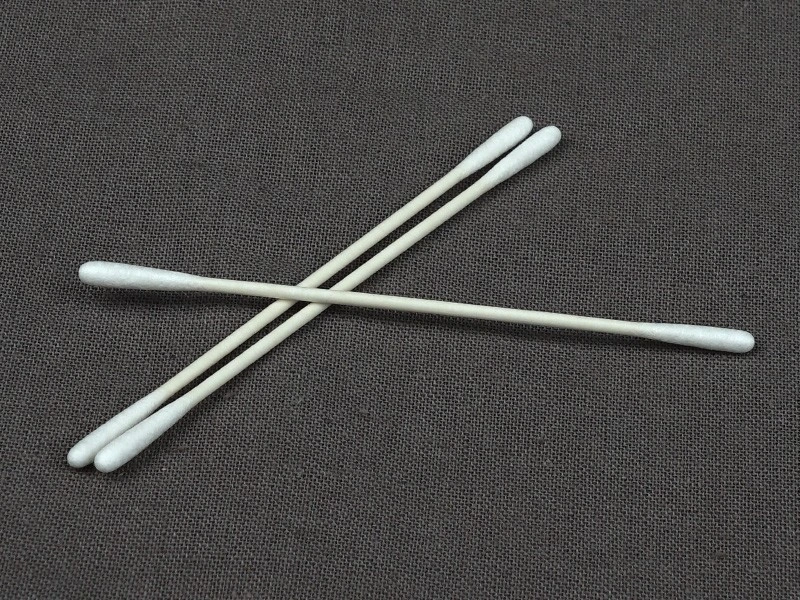

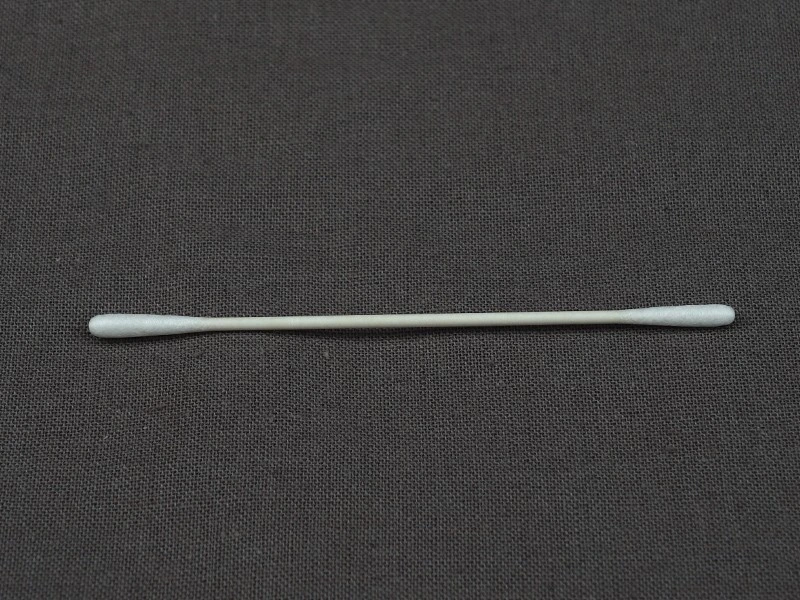

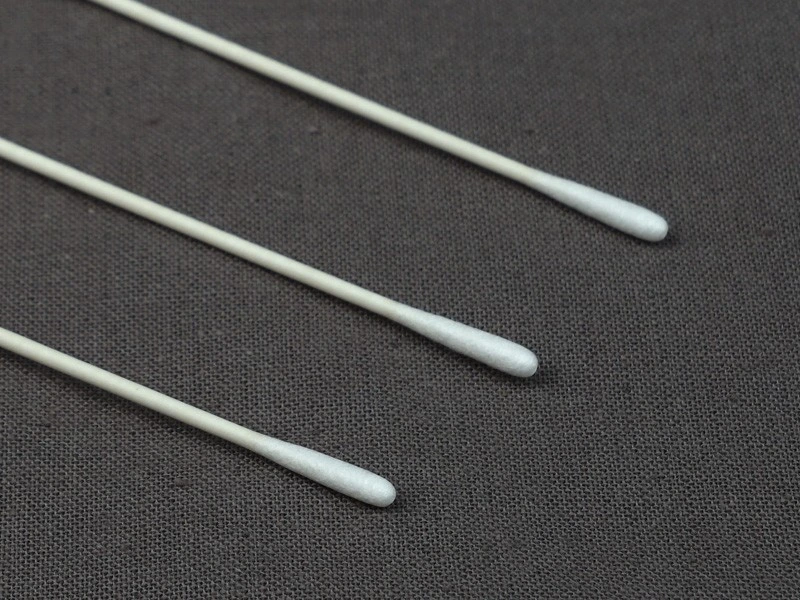

Product images and details
Contact shengtongjh for configuration and packing options suited to your cleaning process.
