Cleanroom Packaging & ESD Products

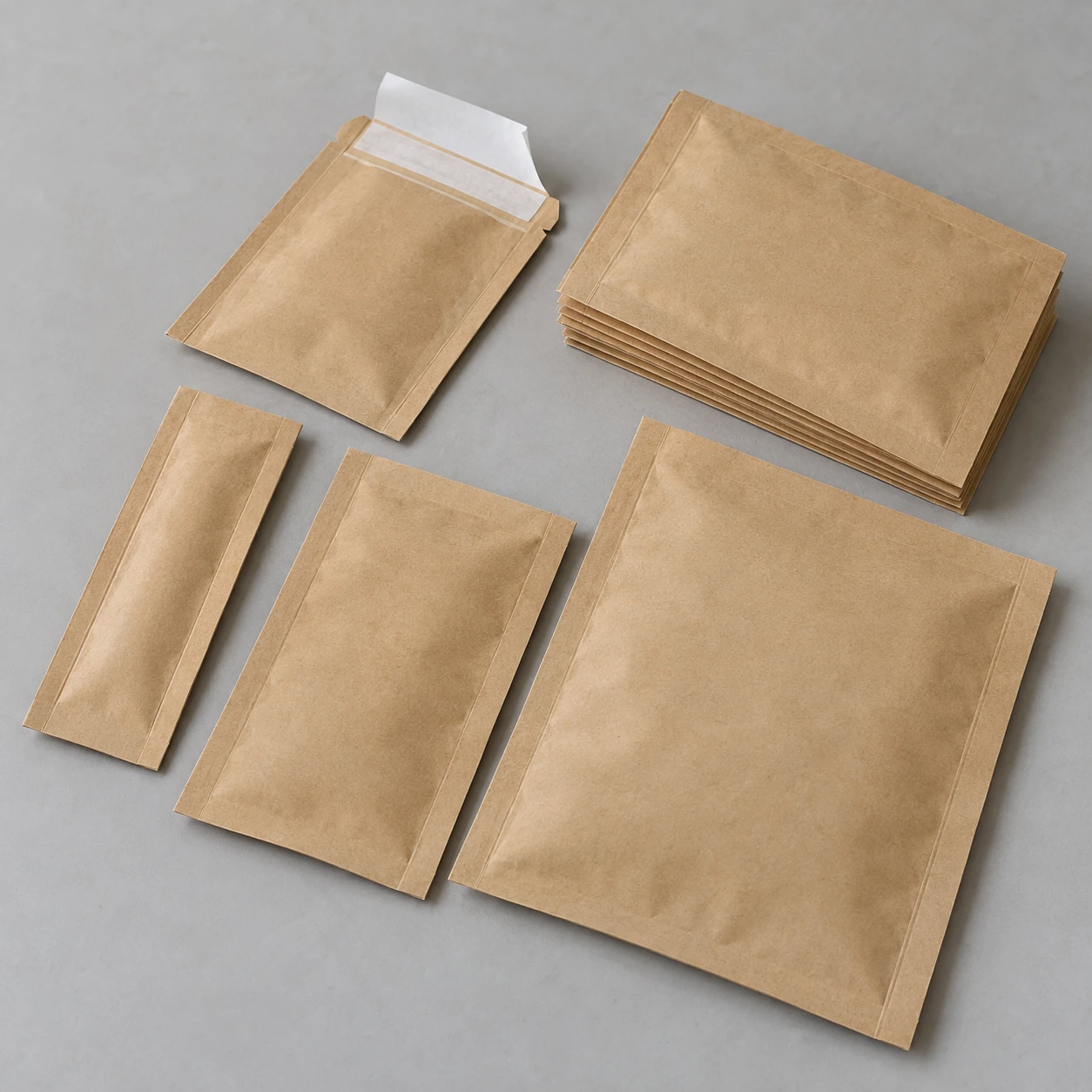

dry heat sterilizer pouches
| Brand | shengtongJH |
|---|---|
| Product type | Single-use dry-heat-compatible self-sealing pouch |
| Material option | Dry-heat-rated kraft paper with a compatible adhesive closure |
| Nominal flat sizes, W × L (mm) | 75 × 150; 100 × 200; 130 × 200 |
| Usable packing area | Smaller than the nominal flat size after allowing for seams, closure and item thickness |
| Temperature specification | Material grade and permitted exposure selected against the approved dry-heat cycle |
| Indicator option | Process-specific dry-heat indicator; response criteria supplied with the selected indicator |
| Supply format | 100-piece pack option; pouch size and pack quantity agreed with the order |
The selected pouch's instructions define its permitted process and storage conditions. A material temperature rating alone does not establish a sterile barrier or validate the packed load.
Pouch dimensions, closure, indicator and pack quantity can be customized to suit the item and its approved processing requirements.
Dry heat sterilizer pouches are packaging components selected to tolerate the approved dry-heat exposure and protect compatible contents after processing. The pouch material, closure, indicator and packed item must work together. A bag intended for steam or another sterilization method needs explicit dry-heat suitability before it can be substituted.
Start with the whole packaging system
The paper or film is only one part of a pouch. The side seams, adhesive, release liner, printed indicator and label area can have different limits. A bag may remain visibly intact after heating while its closure or barrier properties have changed. Selection therefore needs the complete pouch specification and instructions, rather than a generic statement that the raw material withstands heat.
Dry-heat-rated kraft products and purpose-made nylon products are available for different equipment and exposure conditions. They are not automatically interchangeable. Ordinary storage bags and familiar paper-and-film steam pouches should not be assumed compatible with a dry heat sterilizer.
Fit the item without stressing the seams
Allow for thickness
A flat bag width does not describe the space remaining around a thick item. The item should fit without forcing the sides apart or crowding the closure. Sharp edges may need compatible protection that is included in the qualified packaging arrangement.
Keep the closure usable
The flap needs a clean, uncreased sealing area. An oversized item that reaches into the closure can create channels or uneven adhesion. Choosing the next appropriate size is usually more practical than folding a pouch around a load it was not designed to hold.
Nominal dimensions also need a consistent supplier definition: confirm whether the quoted length includes the flap and how the usable area is measured. This prevents a replacement order with the same apparent size from having a smaller packing area.
Indicator colour is not a release decision
A chemical indicator shows a specified response to processing conditions. It does not prove that every item in the pouch is sterile. The CDC guidance on sterilization monitoring explicitly separates chemical indicator exposure from proof of sterilization. Use the site's approved physical, chemical and biological monitoring requirements where applicable.
The indicator must also match the method. A steam indicator printed on a bag cannot be treated as a dry-heat indicator simply because the bag was heated.
Packaging changes the thermal load
Adding a pouch, stacking several packs or changing the wrapped contents can change heat transfer. A process established for unpackaged items cannot be transferred to wrapped items without the required assessment. Keep the loading arrangement and packaging configuration within the approved equipment and process instructions.
After processing, seal damage, punctures or wetting can compromise the intended barrier. Storage and handling conditions should follow the selected packaging system. A single-use pouch is not made suitable for reuse by resealing it or covering a damaged area with tape.
Order a pouch that can be traced
For repeat procurement, keep the material grade, nominal and usable dimensions, closure method, intended cycle, lot identification and packaging instructions together. Substituting a similar-looking bag without those details can change the process even when its colour and size appear unchanged.
shengtongJH coordinates packaging sourcing against the required application. Include item dimensions and the approved equipment and process requirements in the pouch enquiry so that compatibility can be reviewed before a material or size is selected.
Pouch dimensions, closure, indicator and pack quantity can be customized to suit the item and its approved processing requirements.
