Cleanroom Lighting
cleanroom lighting
| Ceiling module formats | 600 × 600; 300 × 1200; 600 × 1200 mm (nominal W × L) |
|---|---|
| Mounting | Recessed grid or prepared aperture; surface-mounted alternatives for limited ceiling voids |
| Light source | White LED; output and distribution selected for the task and mounting height |
| Optical face | Smooth opal, prismatic or toughened-glass arrangement according to cleaning and glare requirements |
| Housing and access | Coated metal enclosure; room-side or ceiling-side service access |
| Controls | Fixed output or compatible dimming; emergency provision specified separately |
Module dimensions describe ceiling formats, not installation cutouts or complete fixture sizes. The selected housing, support arrangement and ceiling opening must be checked together.
Lighting formats, optics, mounting details and control arrangements can be customized to suit the work process and ceiling construction.

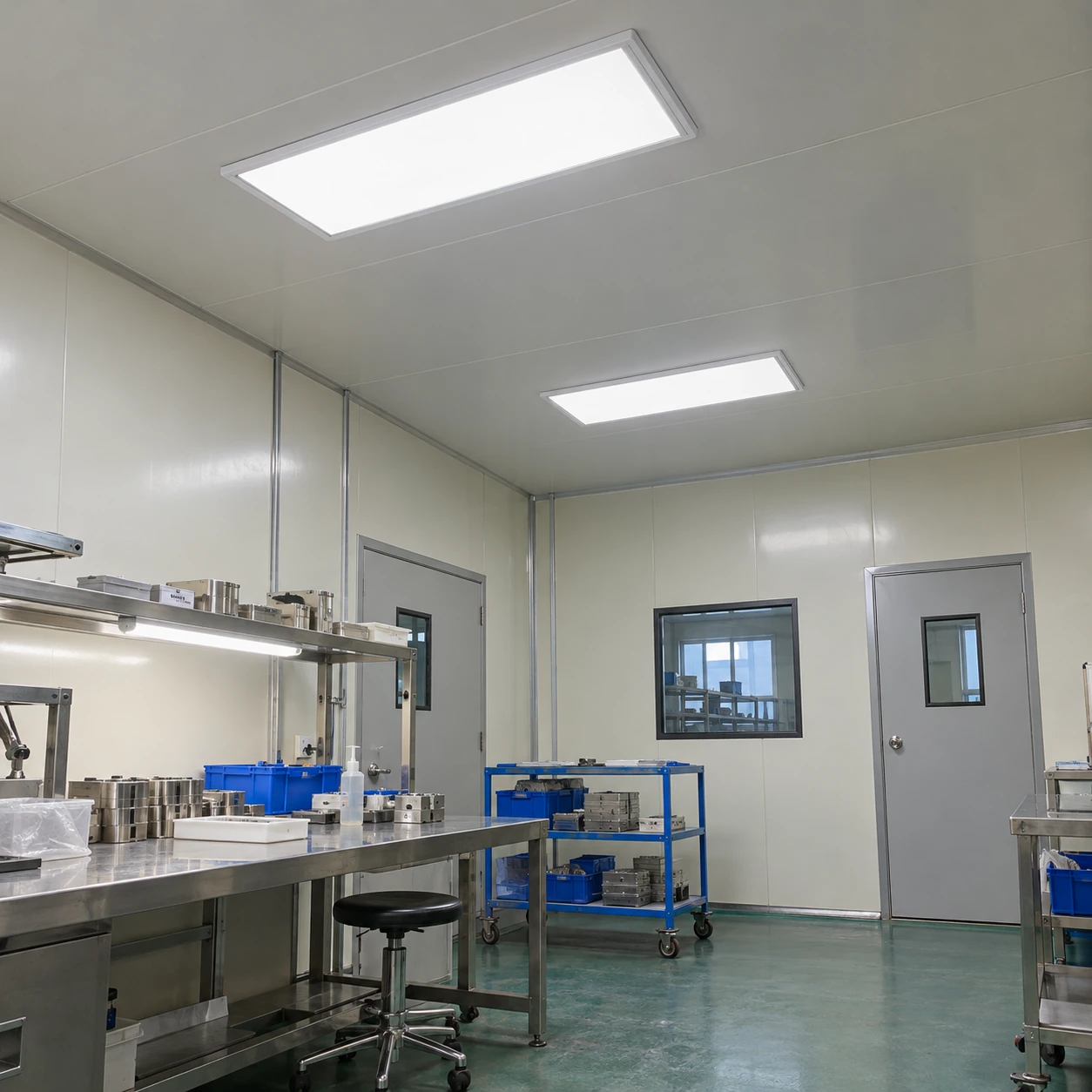

Cleanroom lighting has to illuminate the work while fitting the room's ceiling, cleaning routine and maintenance arrangements. A bright luminaire alone does not ensure a useful working environment: its position, optical distribution and surrounding surfaces determine what an operator can actually see.
Start with the surface being inspected
A packing table, a vertical equipment label and a glossy component present different visual tasks. If the layout is chosen only to make the floor look bright, an operator may still work in shadow or see reflections that hide scratches and contamination. Define the important task surfaces, their height and the direction from which they are viewed.
Use the selected luminaire's photometric data with the room dimensions, surface reflectances and equipment positions. This turns a lamp quantity into an assessable lighting layout. The required illuminance, uniformity and glare limits should come from the work being performed and the applicable project criteria, rather than from one universal cleanroom value.
Coordinate the ceiling before ordering
Lights share the ceiling with filtration, access panels, detection devices and structural members. Moving a fixture late in the project can leave a workstation poorly lit or create an awkward opening beside a filter terminal. Position the ceiling services together, allowing space for both installation and future removal.
Where the ceiling void is shallow, a surface-mounted body may be easier to fit. Its exposed sides and perimeter then become part of the cleaning route. A recessed body reduces projection into the room but needs a compatible support and sealing detail above the visible face.
Make the perimeter easy to maintain
A smooth diffuser is only one part of a cleanable fixture. Examine the frame edge, fasteners, cable entries and the joint to the ceiling. Narrow recesses or damaged finishes can be harder to wipe than the broad illuminated surface.
Select the lens, gasket and finish for the actual cleaning products and methods. An enclosure ingress rating addresses a defined protection test; it does not establish resistance to every disinfectant or prove that a completed room meets its particle classification.
Plan access around production
A failed driver is a different service event from replacing a damaged diffuser. Room-side access can simplify work where there is no service void, but may require protecting or stopping the process below. Access from above depends on a safe, usable maintenance route; a ceiling panel is not automatically a working platform.
Identify the components that can be replaced, how the frame is retained when opened and how the seal is restored. This information is more useful to maintenance staff than a long source-life claim with no access plan.
Lighting formats, optics, mounting details and control arrangements can be customized to suit the work process and ceiling construction.
