Return Air Grilles

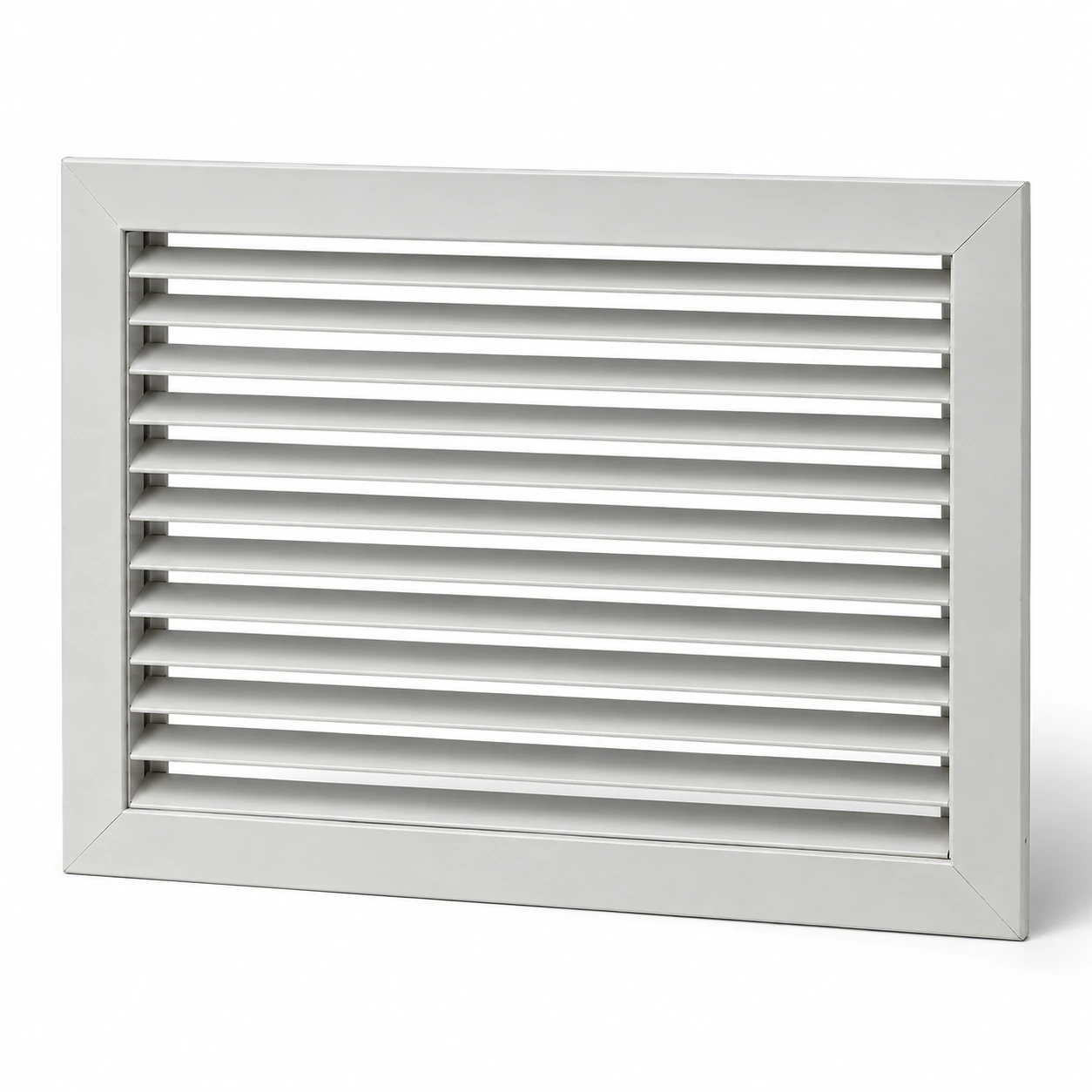

modern return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening options | 300 × 300 / 400 × 200 / 600 × 300 / 600 × 600 mm |
| Face style | Straight bars, simple slots or fixed angled louvers |
| Material | Extruded aluminium or coated steel |
| Border choice | Slim surface border or project-specific recessed frame |
| Finish options | White, light grey, dark grey or anodized aluminium |
| Core access | Removable central core or accessible face fixings |
| Rear interface | Open-backed return plenum or matched rectangular neck |
| Filtration | Separate filter location or an integrated serviceable filter frame |
| Cleaning | Finish and edge details matched to routine maintenance |
| Selection data | Compare pressure loss and sound at the required airflow |
A slim visual profile does not imply a larger free area. The final face pattern and frame arrangement determine the usable air path.
Face proportions, border, mounting arrangement and finish can be customized to the commercial interior and return-air system.
A modern return air grille can have a restrained face and clean frame without becoming a fragile decorative panel. For commercial and industrial interiors, the useful balance is simple appearance, accessible cleaning and a correctly selected airflow path.
Use simple geometry for a durable result
Regular bars and a modest border can sit comfortably within a workshop office, production support area or commercial corridor. The face should be chosen with the surrounding panel joints and access covers in mind. A restrained pattern usually remains easier to coordinate when the interior is altered later.
Do not reduce the border until the mounting method is understood. A concealed frame can give a lighter appearance, but it still needs a stable fixing surface and a defined removal sequence.
Keep the return visible as a service item
A grille still needs to be cleaned. Avoid details that permanently bury fasteners under sealant or paint. If the face also provides filter access, leave enough room for the door and the replacement filter. A tidy appearance should not require a technician to damage the finish during every service visit.
Appearance does not replace airflow selection
A narrow-slot face can look less conspicuous than an open grid, but it may create more resistance at the same gross size. Compare the selected pattern at the required flow, including any filter and rear plenum. If the face needs to be larger, resolve that during design rather than increasing fan speed to overcome a restrictive finished detail.
Choose a finish that belongs in the space
In frequently cleaned areas, surface durability and compatibility with cleaning products matter more than a fashionable colour. Dark finishes can reveal pale dust; very glossy coatings can emphasize dents or uneven mounting. Request a suitable finish for the actual maintenance routine. shengtongJH can combine a straightforward industrial grille with the required border and fixing details without presenting decorative styling as a technical performance upgrade.
Face proportions, border, mounting arrangement and finish can be customized to the commercial interior and return-air system.
