Return Air Grilles
filter return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening choices | 12 × 12 / 16 × 20 / 20 × 25 in |
| Opening equivalents | 304.8 × 304.8 / 406.4 × 508 / 508 × 635 mm |
| Holder depth choices | Nominal 1 in / 2 in, matched to actual filter |
| Face material | Powder-coated steel or aluminium |
| Access construction | Hinged or removable louvered face |
| Filter media | Selected panel or pleated media appropriate to system duty |
| Filter dimensions | Actual width, height and depth confirmed independently |
| Seal options | Holder gasket or perimeter sealing as selected |
| Fasteners | Accessible latches or retained fixings |
| Installation | Commercial wall or ceiling arrangement as specified |
| Pressure allowance | Grille plus clean and loaded filter resistance reviewed |
Filter grade and replacement interval depend on the selected media and operating conditions. A grille size does not define filter efficiency.
Filter seat, access direction, face finish and opening can be customized to the filtration duty and maintenance route.

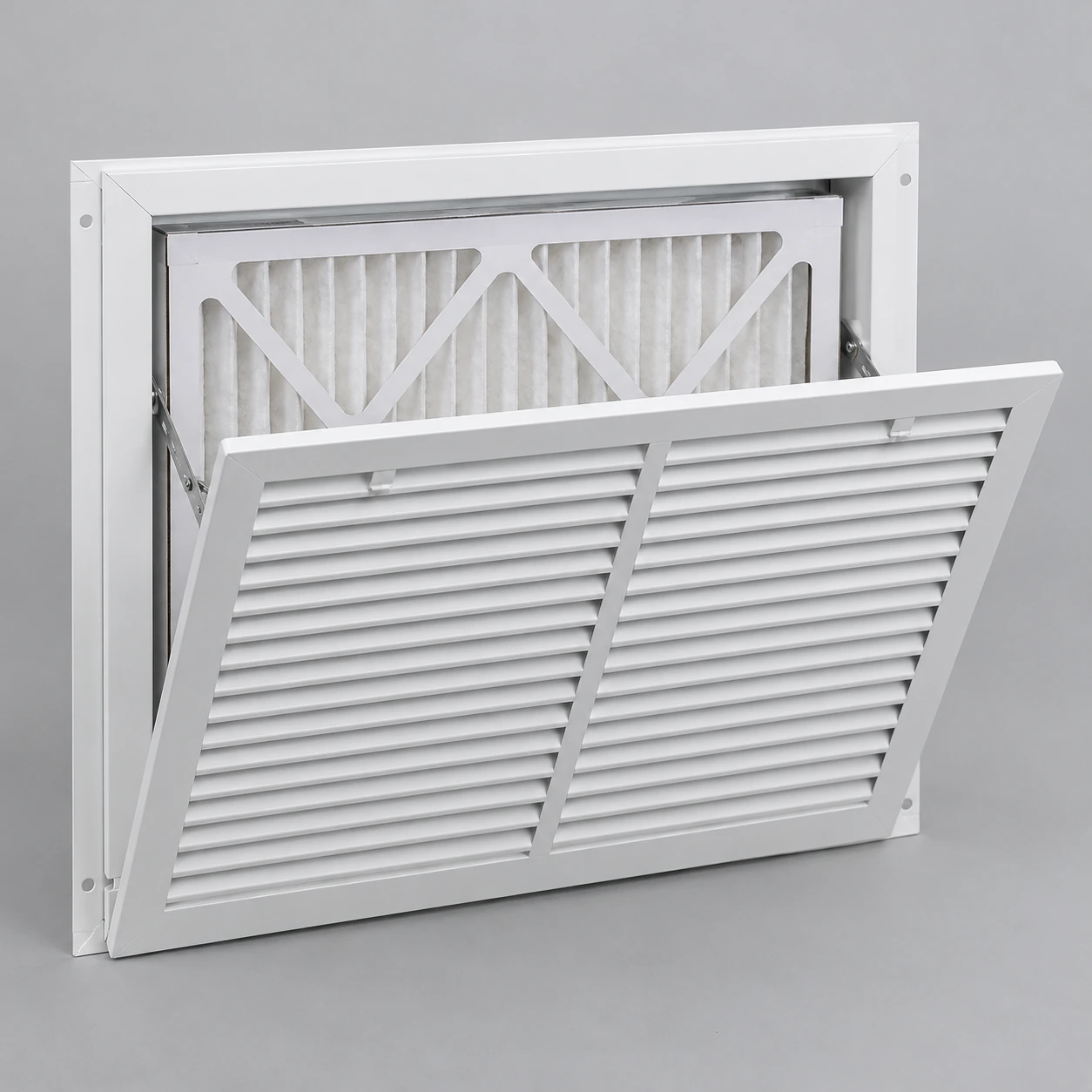

A filter return air grille combines an air inlet face with a serviceable filter holder. The value is convenient access to a defined filtration point, provided the filter fits correctly and its resistance is compatible with the air system.
Buy the holder and filter as a matched pair
A panel filter has actual dimensions that can differ from its nominal description. The holder must locate it without crushing the frame or leaving a path around the edge. Confirm both the filter size and the space available to insert it before selecting the grille assembly.
If replacement media will be purchased locally, agree a practical filter format at the start. An unusual seat may make future changes difficult even when the original installation fits neatly.
Account for the loaded condition
The filter adds resistance to the return path, and that resistance changes as material collects. The fan selection and maintenance plan should allow for the chosen media rather than considering only a clean grille. Upgrading to a more restrictive filter without reviewing the system can reduce useful airflow.
Control bypass at the seat
The frame should hold the filter in its intended position during normal operation. Correct seals and retention help keep air passing through the media. A loose panel rattling behind the louvers is a fit or retention problem, not a normal consequence of filtration.
Make changes straightforward
Allow the face to open fully and provide enough clearance to withdraw the filter without bending it. The maintenance route should keep collected dust away from occupied areas and equipment. Mark the approved filter type in the site's service record rather than relying on memory when the next order is placed.
shengtongJH can coordinate the grille, holder and initial filter supply. State whether future media availability, latch access or a specific filtration requirement is the main priority so the purchase solves the service problem as well as the opening dimensions.
Filter seat, access direction, face finish and opening can be customized to the filtration duty and maintenance route.
