Return Air Grilles

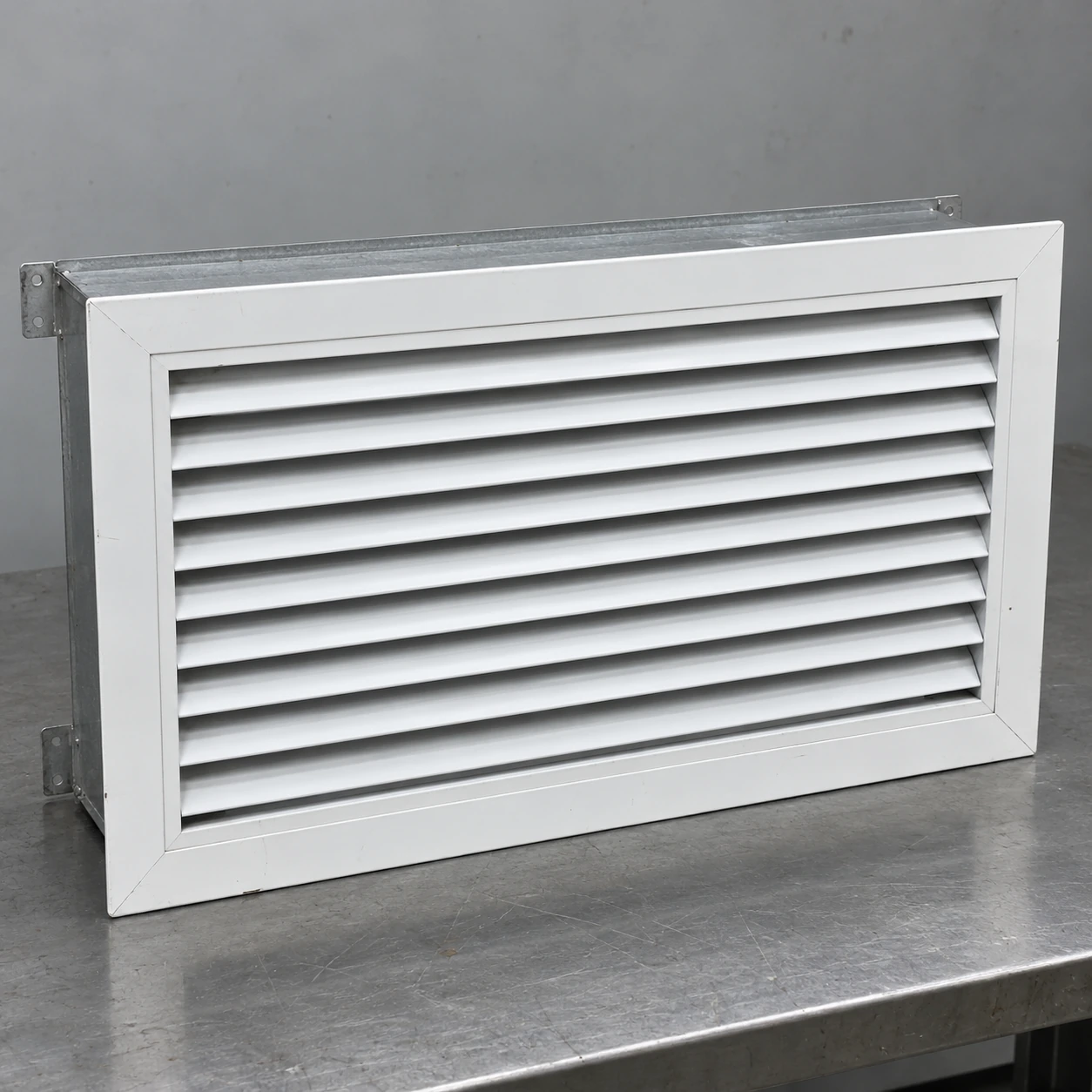

aircon return air grille
| Brand | shengtongJH |
|---|---|
| Common nominal opening options | 12 × 24 / 16 × 24 / 20 × 30 in |
| Metric opening equivalents | 304.8 × 609.6 / 406.4 × 609.6 / 508 × 762 mm |
| Material choices | Aluminium / powder-coated steel |
| Face choices | Fixed louvers, bar core or selected perforated panel |
| Mounting | Wall, ceiling fascia or commercial equipment enclosure |
| Access | Removable core or hinged service face |
| Filter arrangement | At grille or equipment according to air-system design |
| Finish | White, grey or specified powder coat |
| Connection | Rear neck or plenum interface matched to unit |
| Seal provision | Perimeter or rear connection seals where required |
| Selection conditions | Unit return airflow, available pressure and maintenance clearance |
The grille is a passive air-distribution component. It has no cooling capacity of its own and must be selected with the connected commercial unit.
Opening, face pattern, access hardware and connection details can be customized to the commercial air-conditioning installation.
An aircon return air grille forms the intake interface between a commercial space and its air-conditioning return system. Its job is to admit the required air through a serviceable opening, with the filter and equipment connection arranged to suit the unit.
Give the unit a defined return path
A commercial air-conditioning unit needs air to reach its inlet without unnecessary restriction or unintended bypass. The visible grille is one part of that route. The space behind it, any filter, the return plenum and the unit connection all influence how the system operates.
When a room is uncomfortable, replacing the face with a different-looking grille may not address the cause. Inspect the complete return route for obstructions, disconnected joints or a dirty filter before deciding what needs to change.
Put the filter where it can be serviced
A grille-mounted filter can make routine service convenient in some commercial layouts. In others, the equipment's own filter is the appropriate service location. Establish the intended arrangement before ordering the face so that a second filter is not added without accounting for its resistance.
Where the grille opens for maintenance, check the space needed to remove the filter and clean the interior. The decorative opening is not necessarily large enough for more substantial equipment repairs, which may need a separate access panel.
Air approach
Keep furniture, stored materials and permanent displays away from the active face. A well-selected grille cannot admit the intended air if its front is regularly blocked.
Moisture
Investigate condensation at cold connections behind the grille. Insulation and enclosure details need attention; changing the visible finish alone will not correct the underlying moisture condition.
Maintenance
Choose fixings and finishes suited to regular cleaning. Keep a record of the filter and grille assembly so replacement parts can be ordered without guessing from a photograph.
Opening, face pattern, access hardware and connection details can be customized to the commercial air-conditioning installation.
