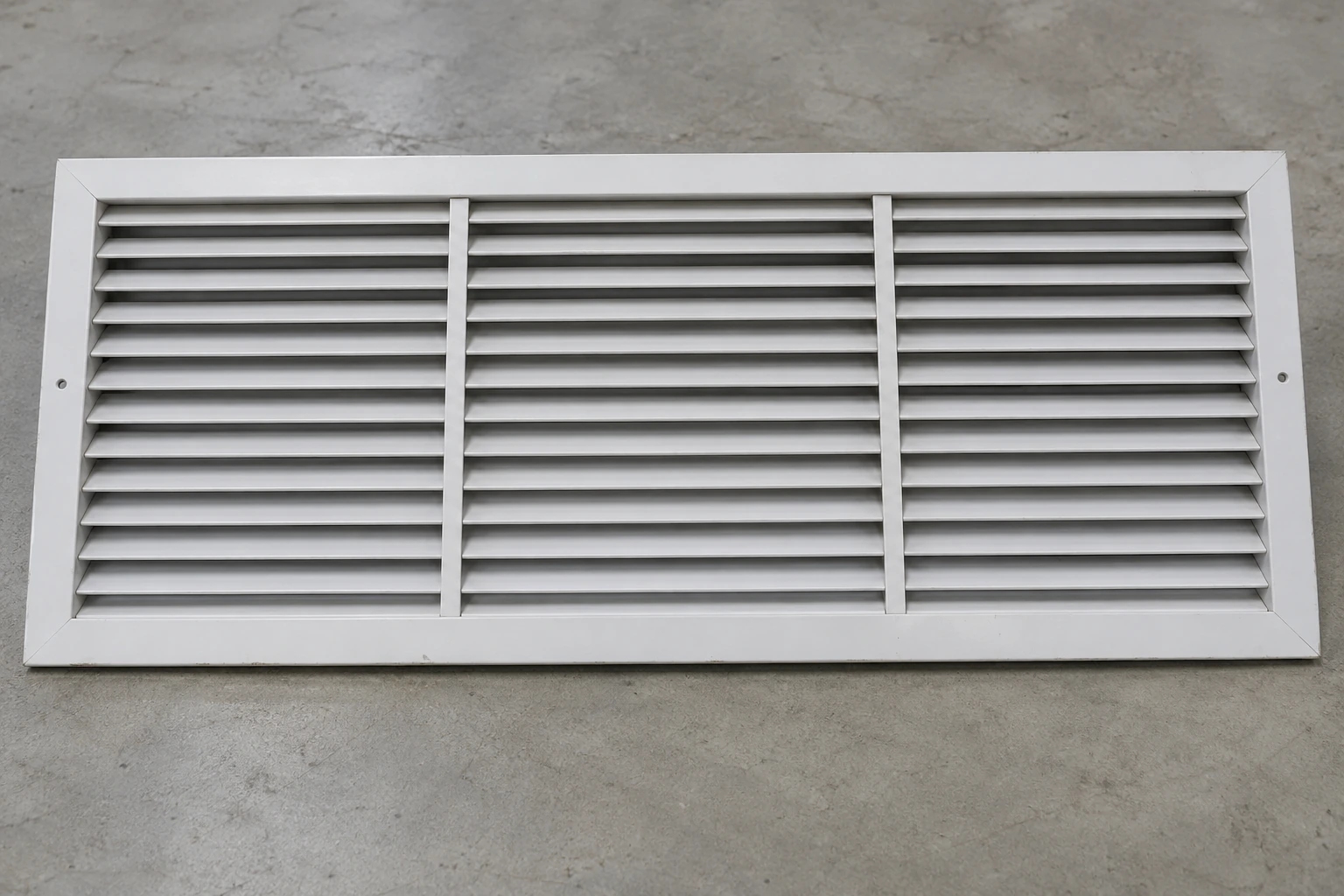

30x20 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 30 × 20 in / 762 × 508 mm |
| Orientation | Landscape opening |
| Material options | Coated steel or aluminium |
| Core | Fixed-blade or open-grid construction as selected |
| Frame | Perimeter support matched to wall, ceiling or plenum |
| Access method | Removable or retained hinged arrangement |
| Filter provision | Holder and replacement panel matched separately |
| Finish | White, grey or required coating |
| Handling | Core construction and retention selected for service position |
| Air design | Flow, face free area and rear connection resistance |
Face area does not define a load rating or guaranteed airflow. Confirm the actual frame, core support and performance data for the selected assembly.
Core support, access, mounting and filter provision can be customized to the broad return connection and maintenance conditions.
A 30x20 return air grille provides a broad landscape opening for a larger return connection. Its frame support and service method should be considered alongside the air performance of the complete assembly.
Make the larger face easy to handle
A broad return grille can provide a useful service opening, but a large loose core may be awkward to remove above equipment or from a ceiling. Decide how the panel will be retained and handled before selecting the fastening. The maintenance method should suit the mounting height and the space available in front of the face.
Where a hinge is used, its arrangement and catch should be appropriate for the complete panel. Do not assume that a larger version can use every detail of a smaller face without reviewing the construction.
Support the frame independently
The perimeter should remain square and stable while the core is removed. Provide suitable backing or a mounting frame rather than relying on the finish material alone. Rear ductwork and plenums should have their own intended support.
Keep the plenum useful
The broad opening needs a connected return route that can accept the required flow. A narrow rear throat, abrupt transition or internal obstruction can remain the main restriction even when a larger grille is fitted.
Choose filtration with maintenance in mind
A larger face may use one panel or a divided filter arrangement depending on the selected holder. Specify that arrangement and the actual replacement dimensions rather than deriving them from the opening label. Check the filter resistance at the design flow and leave room to remove each panel.
At procurement, combine the dimensional drawing, mounting position and airflow requirement. This lets the face, support and service parts be sourced as an assembly that can be installed and maintained without improvised changes.
