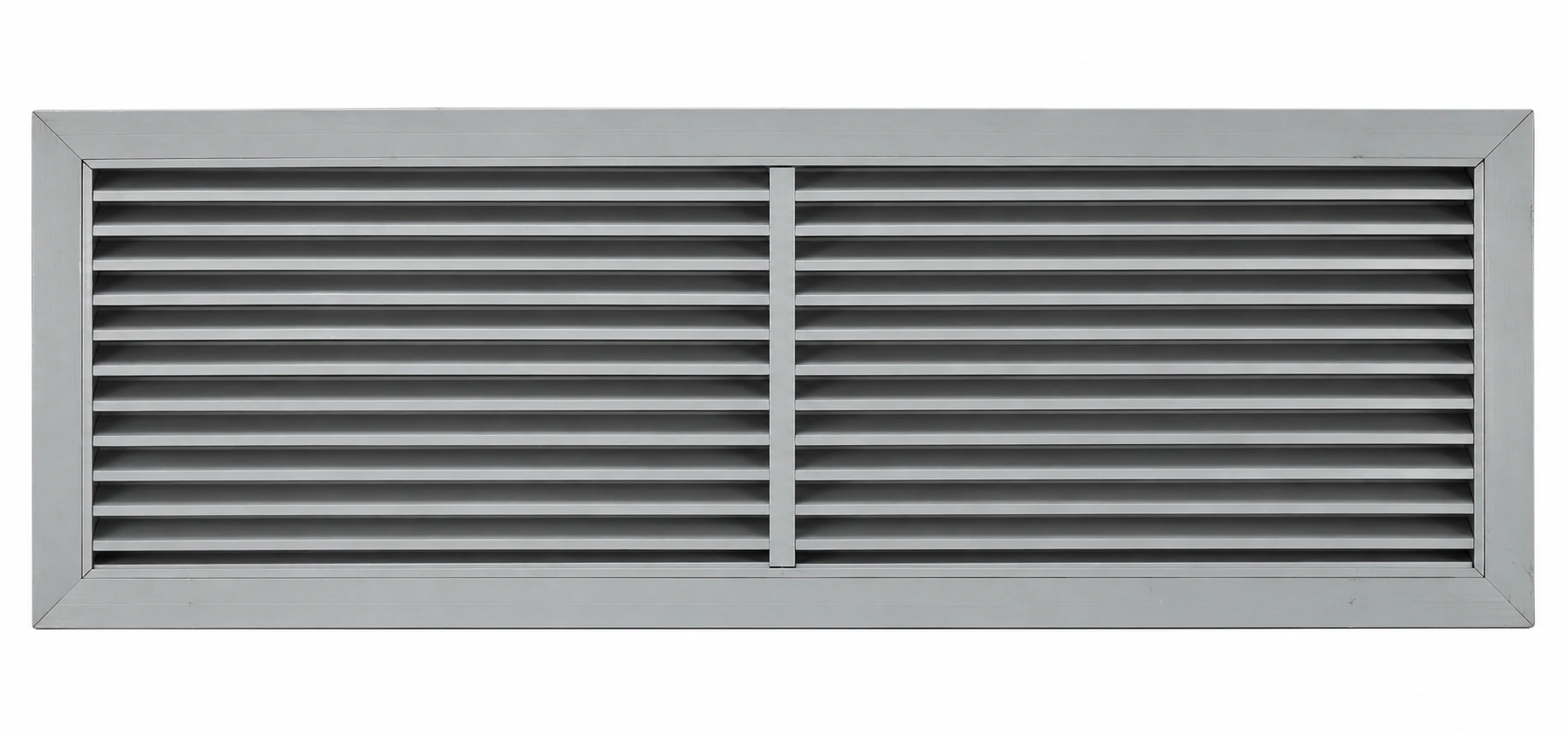

30x14 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 30 × 14 in / 762 × 355.6 mm |
| Orientation | Landscape opening |
| Material options | Aluminium or powder-coated steel |
| Blade form | Fixed horizontal blades |
| Core support | Construction selected for the width and removal method |
| Frame | Surface border or project-matched recess |
| Access | Fixed or removable centre |
| Filter arrangement | Separate holder if required by design |
| Finish | Grey, white or selected coating |
| Selection basis | Required airflow, actual free area and rear connection geometry |
Frame span and support details depend on the selected construction. A wide nominal opening does not by itself establish airflow or structural performance.
Blade core, frame, access and finish can be customized to the wide opening and return-box arrangement.
A 30x14 return air grille provides a wide, relatively shallow nominal opening. It can suit a horizontal service band where the layout allows width but limits available height.
Let the whole width take part
A broad return face needs a rear arrangement that allows air to use its width. If a small branch joins one end of a very shallow box, the path through the face may be uneven. Coordinate the depth and connection position of the return box instead of treating the wide grille as a way to hide a restricted throat.
For a new installation, show the space behind the face in section as well as plan. A pipe or structural member crossing immediately behind the blades can remove much of the usable passage despite a generous front opening.
Keep the long border straight
The supporting opening should provide an even fixing surface along the frame. Pulling a long border against an uneven wall can distort the face or create contact between the core and frame. Agree the perimeter support rather than depending on extra screws to correct poor alignment.
Choose a manageable core
A removable wide centre needs a clear withdrawal path and sufficient support during handling. Consider nearby ceiling trims, cabinet doors and lighting. If access is frequent, a serviceable retained arrangement may be preferable to repeatedly removing the entire outer frame.
Use the width as a design input
Specify the opening, border and rear connection with the design return flow. The construction can then be selected for pressure loss, sound and handling. A different blade or grid pattern may change the free area, so a face substitution should be checked against the operating duty instead of accepted solely because its outside dimensions match.
Blade core, frame, access and finish can be customized to the wide opening and return-box arrangement.
