24x30 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 24 × 30 in / 609.6 × 762 mm |
| Frame | Steel or aluminium perimeter with reinforcement as selected |
| Core options | Fixed louvers, removable louver core or open grid |
| Visible face size | Nominal opening plus agreed border dimensions |
| Material finish | Powder-coated steel or coated/anodized aluminium |
| Mounting support | Stable continuous perimeter fixing surface |
| Core retention | Captive fasteners or retained access detail |
| Filter provision | Optional holder with separate filter dimensions |
| Rear space | Plenum depth and component withdrawal clearance |
| Performance basis | Required flow with core, filter and connection losses |
Panel reinforcement and retention depend on construction and mounting orientation. The nominal size does not imply a structural or airflow rating.
Frame reinforcement, access method, filter holder and finish can be customized to the large opening and maintenance arrangement.

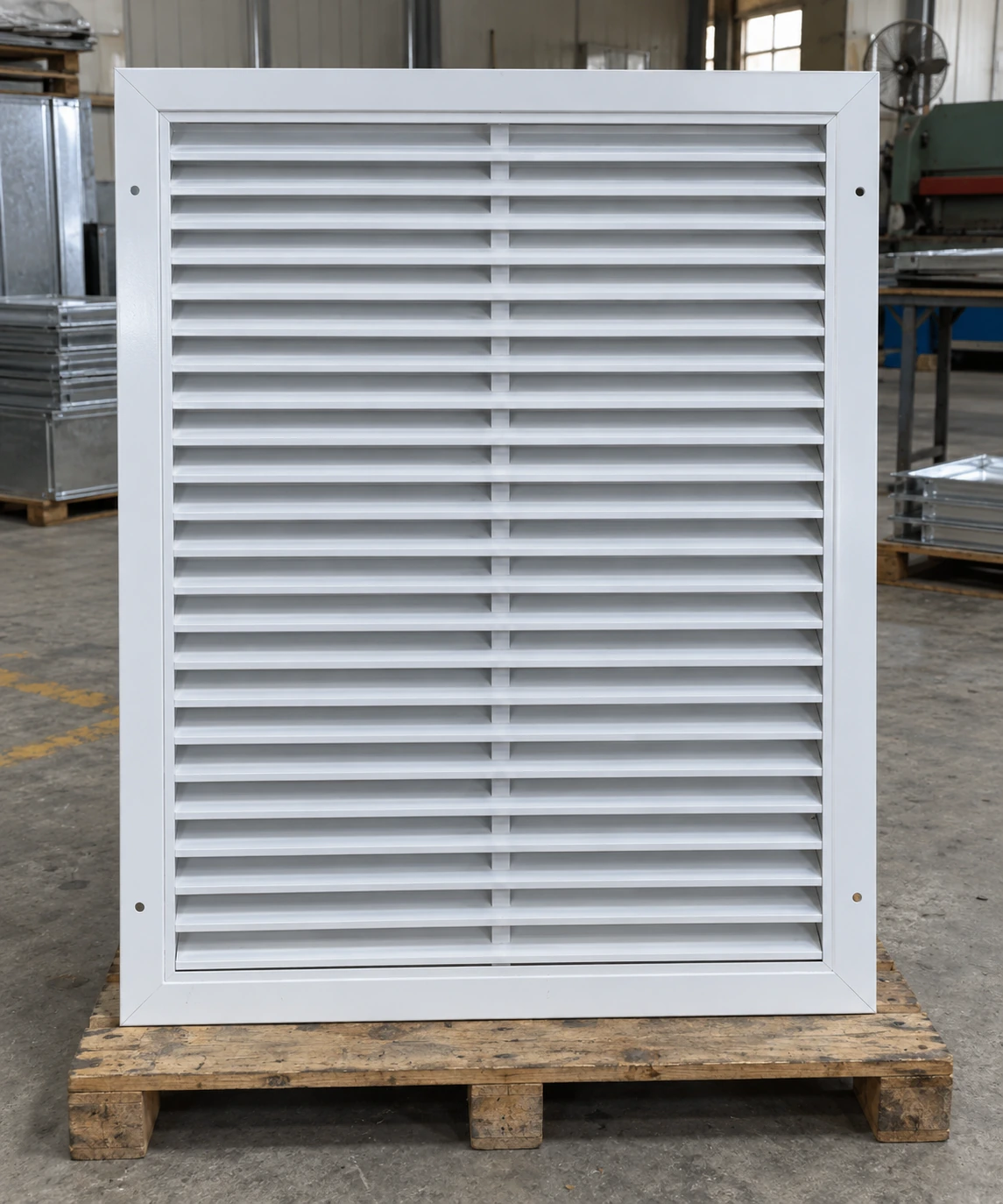

A 24x30 return air grille is a large portrait opening selection. Its frame, core retention and service method deserve attention because a larger panel can be harder to handle and more sensitive to uneven mounting support.
Keep a large face flat without forcing it
A large grille should seat against a sound, reasonably even support. Pulling it tight with a few screws can distort the border or core if the opening is out of plane. Check the mounting surface and provide the selected fixing pattern before final finishes are completed.
Where the core is removable, its alignment with the frame matters after repeated servicing. A retained panel should locate positively rather than depend on friction at a bent edge.
Handling
Consider how maintenance staff will support the panel while releasing it. A hinged or captive arrangement may reduce loose-part handling, but it needs an appropriate opening envelope and secure retention.
Plenum
A large face should not conceal a sharply restricted rear throat. Coordinate the transition and any internal supports so the whole opening has a useful path to the return duct.
Filtration
If a filter is included, check its rigidity, holder and withdrawal route. Larger media panels need a suitable retaining arrangement; the grille louvers are not a substitute for a filter support frame.
Leave a maintainable installation
Keep access clear of shelving, doors and other services. For an overhead location, use a support and retention design intended for ceiling installation. The maintenance method should be part of the procurement scope, not a decision left until the face must first be removed.
Provide shengtongJH with the opening, mounting plane, rear depth and intended core type. Those details help coordinate a practical assembly and avoid ordering a large face that fits visually but cannot be serviced conveniently.
Frame reinforcement, access method, filter holder and finish can be customized to the large opening and maintenance arrangement.
