Return Air Grilles

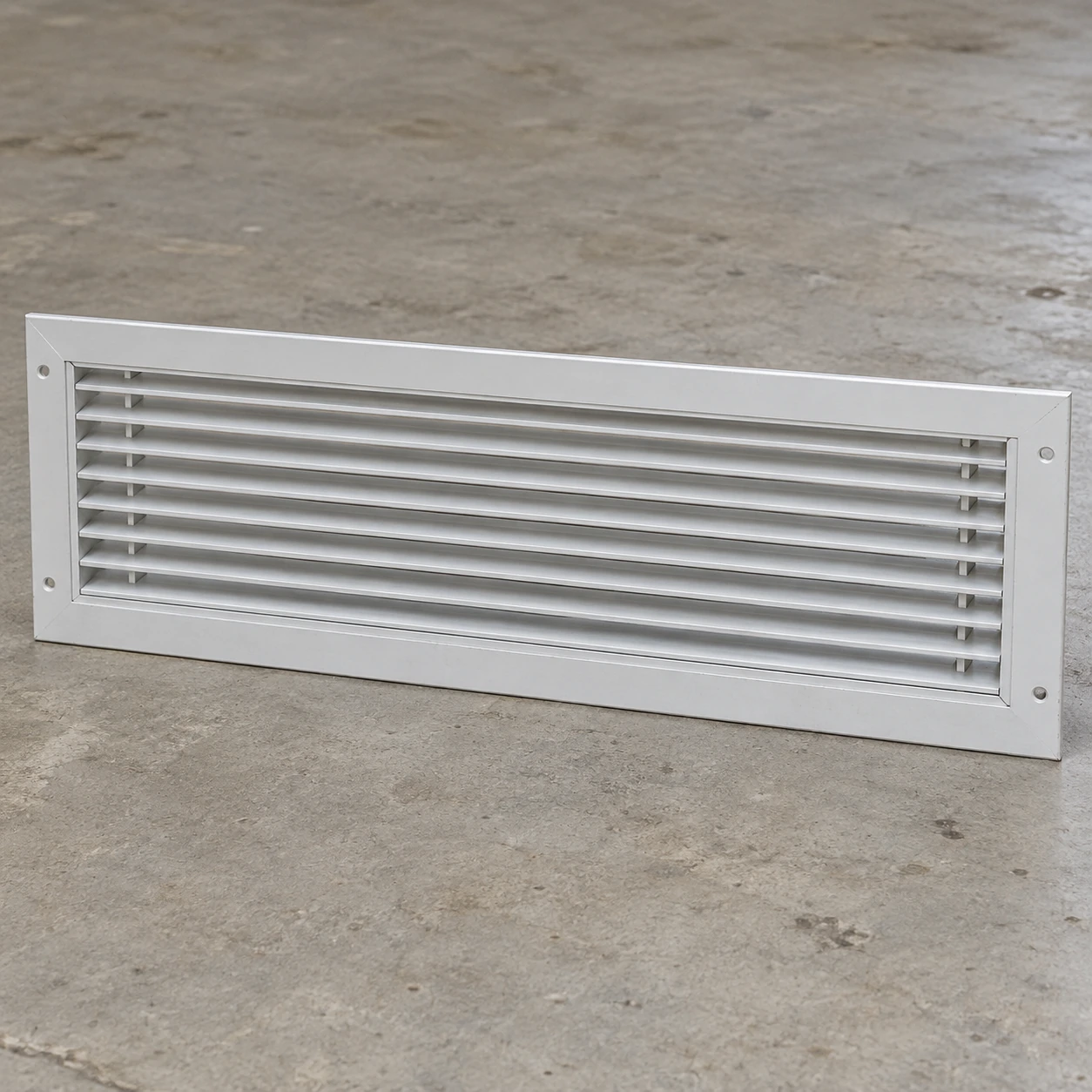

24x12 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 24 × 12 in / 609.6 × 304.8 mm |
| Application configuration | Commercial fan-coil bulkhead or return-air fascia |
| Material | Aluminium face and frame or powder-coated steel |
| Face choices | Fixed louvers or removable bar core |
| Mounting border | Surface flange or coordinated recessed frame |
| Finish | White / light grey; other powder-coat colours by selection |
| Filter location | At grille or at equipment, as required by system design |
| Access hardware | Removable core or hinged face |
| Rear clearance | Based on neck, filter and service withdrawal needs |
| Fixings | Frame attached to structural backing around the opening |
| Air selection | Matched to fan-coil return requirement and total inlet resistance |
A grille that fits the bulkhead is not automatically large enough for the connected unit. Confirm the complete return path and equipment requirements.
Border, core, access mechanism and filter arrangement can be customized to the fan-coil bulkhead and service plan.
A 24x12 return air grille can fit a shallow commercial bulkhead or equipment fascia. It must provide an adequate return path while preserving access to the filter and the parts of the fan-coil installation that require routine service.
Keep the intake and access functions clear
A fan-coil bulkhead often needs an air inlet and a maintenance opening in the same small area. Decide whether the grille serves both purposes. A removable face may provide filter access, but more substantial service work may require a separate panel or a larger opening.
Do not assume the narrow grille opening allows removal of a fan, motor or drain-pan component. Check the equipment service instructions and the actual direction in which parts must move.
Choose where filtration belongs
Some units already have a filter at the equipment inlet. Adding another filter behind the visible grille changes the resistance the fan must overcome. Decide the filtration arrangement as a system choice instead of adding a second filter simply because a frame is available.
Prevent hidden bypass paths
The return air should follow the intended route into the equipment. Gaps in an enclosure or poorly fitted return connections can draw air from an unintended service void. Coordinate the grille, plenum and equipment joint so that the visible face is part of a defined air path.
Where the bulkhead contains cooled surfaces, examine insulation and moisture conditions independently of the grille finish. A painted metal face cannot solve condensation caused by an uninsulated cold connection behind it.
Allow the face to come off cleanly
Keep mounting fasteners clear of permanent sealant and decorative trim that would have to be cut at every visit. Retained or hinged access can reduce handling effort in commercial corridors, provided its swing path remains clear. Agree these details with the ceiling or bulkhead installer before the finishing work closes the available space.
Border, core, access mechanism and filter arrangement can be customized to the fan-coil bulkhead and service plan.
