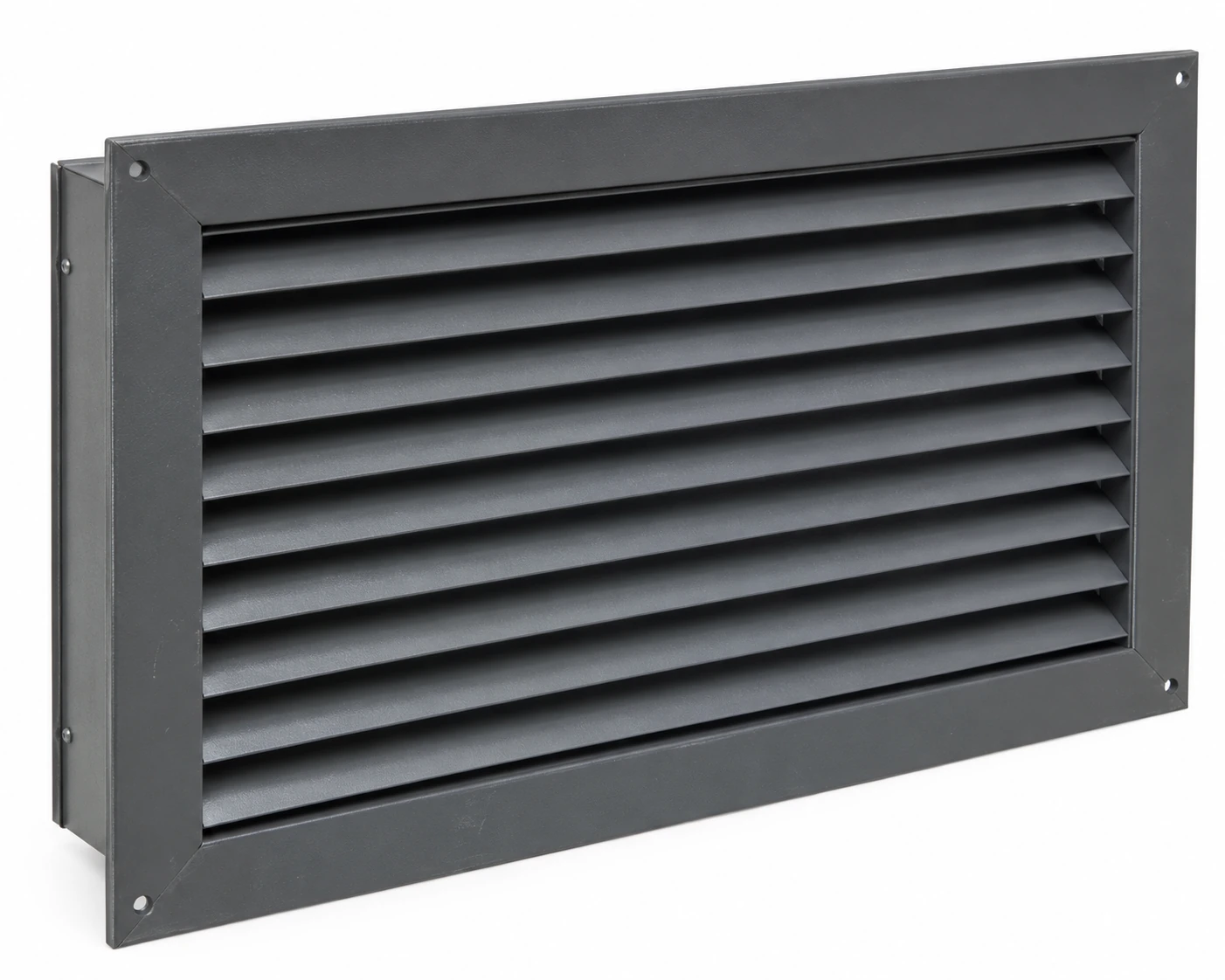

20x16 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 20 × 16 in / 508 × 406.4 mm |
| Orientation | Landscape opening |
| Material choices | Coated steel or aluminium |
| Blade arrangement | Horizontal inclined louvres |
| Border | Surface flange or project-specific recess |
| Core access | Fixed or removable centre |
| Optional filtration | Compatible holder and panel selected as an assembly |
| Finish | Dark grey, white or specified powder coating |
| Fixing | Supported perimeter mounting |
| Design duty | Return airflow with acceptable pressure drop and noise |
A rotated grille may have the same area but a different hinge, blade or fixing arrangement. Agree orientation and outer frame dimensions before ordering.
Blade sightline, border, access method and coating can be customized to the horizontal return position.
A 20x16 return air grille uses a landscape opening for horizontal wall or equipment interfaces. The width-height order identifies the fit, while blade and access orientation need to be specified separately.
Record orientation beyond the two dimensions
A landscape opening tells the installer which direction the long side runs. It does not tell the supplier which way the blades should face or where an access edge should sit. Include these details when the grille is mounted near a corridor, equipment casing or wall corner.
Changing blade direction to improve the view into the return void can affect the release method of some assemblies. Resolve the complete arrangement before the finish is selected so it does not need to be rotated or altered on site.
Frame coverage
Check that the visible border covers the cut-out while leaving room for surrounding trim. The mounting surface should support the flange evenly rather than forcing it to bridge an irregular opening.
Rear approach
Keep the air path behind the face clear of brackets and service crossings. A shallow box with a restricted side entry can limit the benefit of the wide opening.
Routine access
Decide whether the core, filter or whole face needs removal. Use a fastening method that supports that task without damaging the wall at each visit.
Keep performance tied to the selected face
Compare the actual blade or grid free area at the required return flow. A different material or colour does not establish a different air capacity, but a changed pattern or filter can affect resistance. Supply the operational requirement with the drawing so shengtongJH can source a compatible construction and the relevant product data rather than infer suitability from appearance.
Blade sightline, border, access method and coating can be customized to the horizontal return position.
