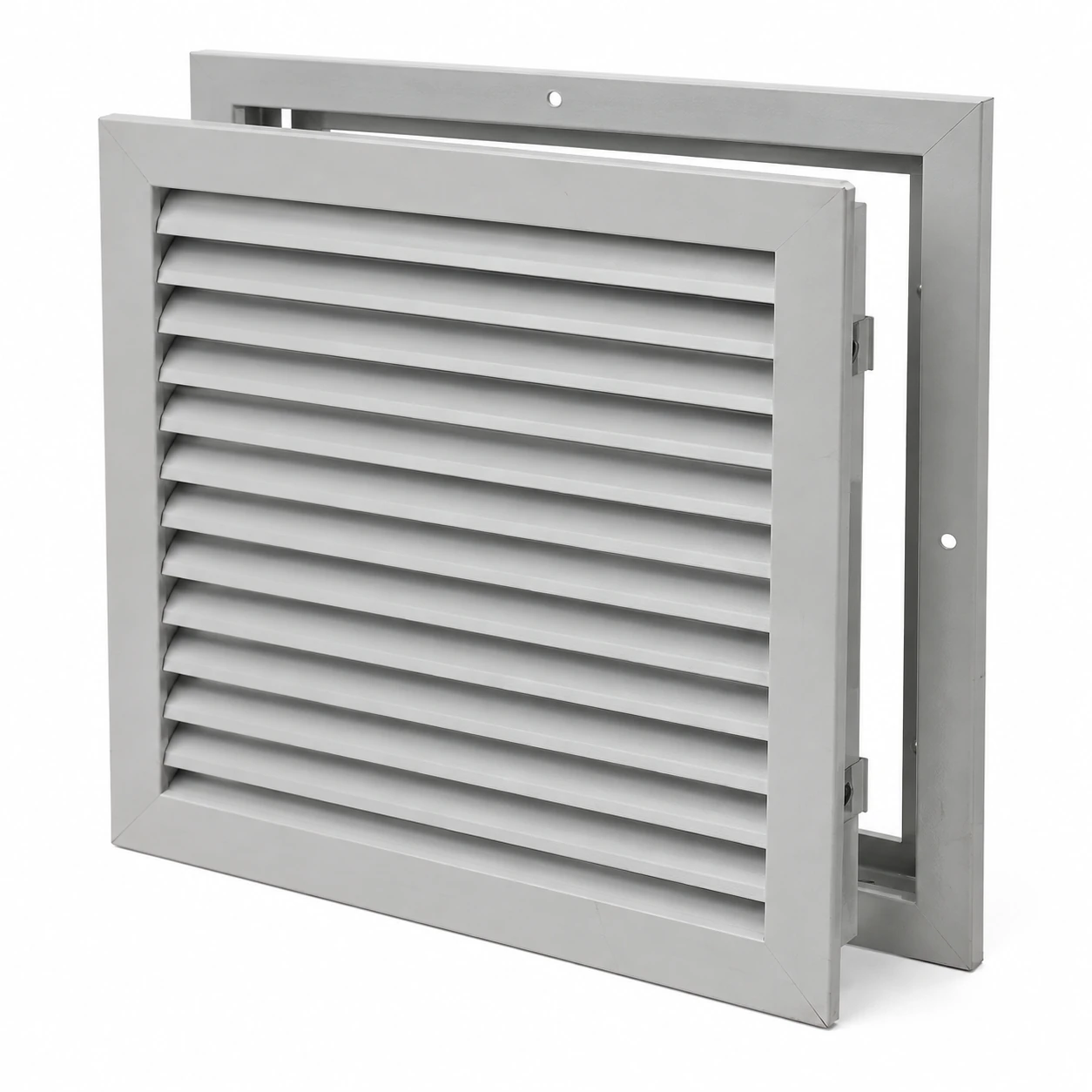

18x18 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 18 × 18 in / 457.2 × 457.2 mm |
| Visible frame | Border dimensions set to the installation detail |
| Material options | Coated steel or aluminium |
| Core choices | Removable fixed-louver core or retained grille face |
| Retention detail | Captive fasteners, latch or screw fixing as selected |
| Installation support | Continuous perimeter support around the opening |
| Finish choices | White, pale grey or anodized aluminium |
| Filter accommodation | Separate filter holder if required; not implied by removable core |
| Rear access | Clearance for core removal and inspection |
| Performance basis | Selected free area and pressure loss at design airflow |
The opening dimensions are not a filter designation. Any filter track and actual filter size must be coordinated independently.
Core retention, frame finish, mounting depth and optional filter access can be customized to the maintenance conditions.
An 18x18 return air grille can provide a serviceable square return opening without requiring the surrounding wall or ceiling finish to be disturbed during routine cleaning. The choice of core retention and mounting frame determines how practical that access will be.
Make cleaning a normal service task
A return face gathers dust carried by room air. A removable core allows the blades and frame recesses to be cleaned more thoroughly, but only if the removal method is understood and accessible. Choose fasteners or latches that can be operated without prying against painted edges.
In busy commercial areas, consider where the removed core will be placed during work. A retained hinged face may reduce handling, while a fully removable core can be easier to wash away from the opening. Each method needs its own clearance and safe working arrangement.
Keep a removable grille secure in service
The core should locate positively in its frame rather than rely on a distorted edge or paint build-up to stay in place. Repeated vibration or careless refitting can reveal a weak retention detail. Specify the mounting orientation and the normal access frequency so the chosen mechanism suits the job.
For a ceiling installation, check the support and retention as an overhead assembly. The fact that the same nominal opening works in a wall does not settle that question.
Separate dust on the grille from filter loading
A dirty face and a loaded filter are related maintenance issues but not the same component. If filtration is elsewhere in the system, keep access to that filter identified. Do not insert an improvised pad behind the grille without checking its support and added resistance.
Keep procurement information useful
Record the opening, outside border, core style and fastening arrangement. That information allows a replacement to fit the same installation and avoids repeated cutting or repainting around the return.
Core retention, frame finish, mounting depth and optional filter access can be customized to the maintenance conditions.
