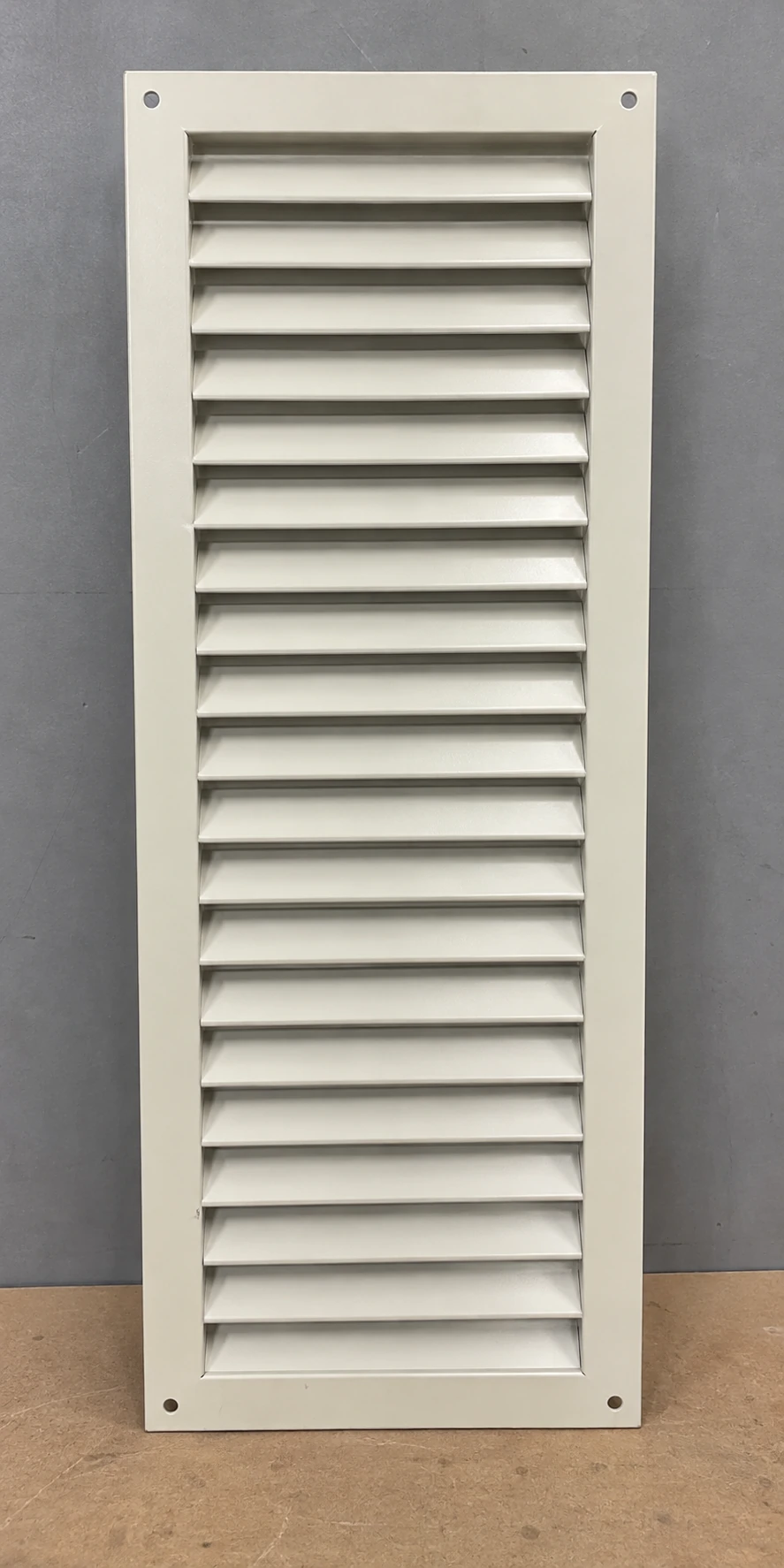

12x24 return air grille
| Brand | shengtongJH |
|---|---|
| Nominal opening W × H | 12 × 24 in / 304.8 × 609.6 mm |
| Orientation | Portrait; reversing width and height changes the interface |
| Visible face | Includes a border outside the nominal opening |
| Construction | Coated steel or aluminium fixed-louver core |
| Mounting | Perimeter screw flange or separate installation frame |
| Blade direction | Horizontal or vertical as coordinated with the room |
| Finish | White, cream or grey powder coating |
| Rear depth | Neck and plenum depth selected for the available service space |
| Filter option | Dedicated filter frame only where specified |
| Access | Removable face clear of nearby switches and door trims |
The nominal opening is not the overall face size. A filter, if included, needs its own actual dimensions and retaining arrangement.
Frame overlap, louver direction, finish and filter provision can be customized to the vertical wall or enclosure opening.
A 12x24 return air grille is a tall rectangular selection when dimensions are stated as width × height. This format can fit a vertical service zone while leaving adjacent wall area available for equipment, doors or access panels.
Use the vertical space without blocking access
A tall return opening can occupy a narrow wall strip between other components. Check the whole strip, including face overlap and fixing positions, before ordering. The grille must clear electrical accessories, panel handles and door trim, not just fit inside the rough opening.
Where a removable core is required, identify how it is withdrawn. A face that lifts upward may clash with an overhead bulkhead even when the installed position looks unobstructed.
Choose the blade direction deliberately
Blade orientation affects what can be seen through the grille and how cleaning is carried out. Fixed angled blades can reduce a direct view into a dark plenum from a selected direction, but they do not make it invisible from every viewpoint. Coordinate that viewing direction with the normal approach to the space.
Do not assume that rotating a landscape grille creates the same installation. Fasteners, hinges and filter retainers may have been arranged for a specific orientation. Specify the intended width, height and installed direction together.
Give the return a clear approach
A tall wall grille placed behind stacked cartons or a movable cabinet can lose much of its useful area. Keep the operational clearance part of the layout so the return remains available after the area is occupied.
Keep the rear connection practical
A shallow wall cavity may need a formed plenum or transition. Provide that depth with the enquiry drawing. The grille cannot compensate for an obstructed cavity or an undersized duct behind it. Treat the face, rear passage and service access as parts of one return route.
Frame overlap, louver direction, finish and filter provision can be customized to the vertical wall or enclosure opening.
