Cleanroom Wipes
Woven Microfiber Cleanroom Wipes S5009 Random Texture 103 g/m²
| Material | Polyester and nylon |
|---|---|
| Construction | Woven random texture |
| Basis weight | 103 g/m² |
| Thickness | 0.25 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥300 — unit/method to confirm |

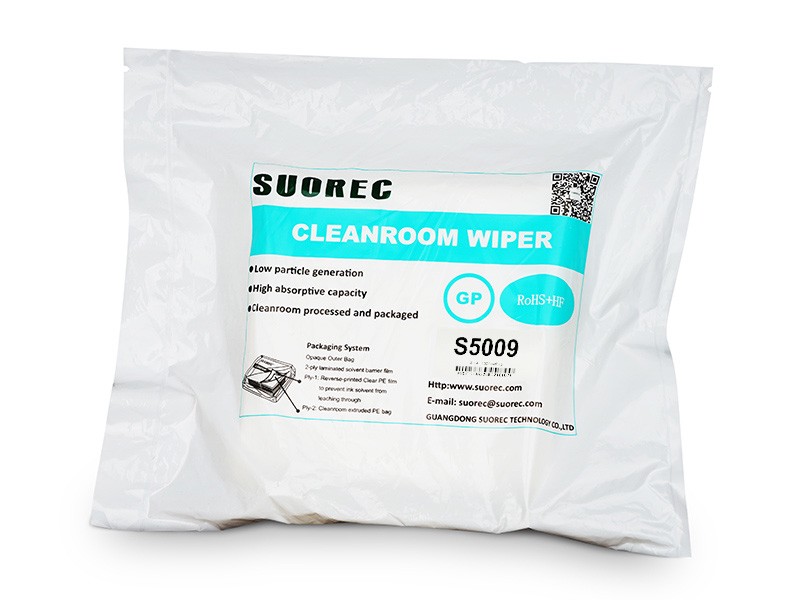

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
S5009 is a woven microfiber wipe with a random-texture surface and polyester-nylon composition. Its textured contact face is intended for evaluating the removal of adhesive traces and greasy films.

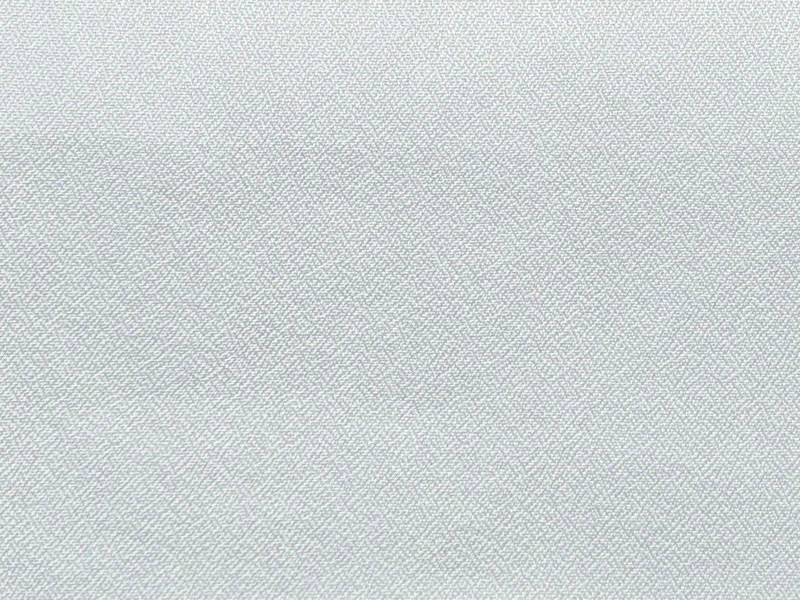

Texture for collecting loosened residue
The surface texture of S5009 provides a different contact feel from smooth plain-weave cloth. It can be evaluated for lifting compatible adhesive residue and oily contamination from production surfaces after the cleaning liquid has loosened the deposit.
Texture does not justify increasing pressure on a delicate finish. Start with controlled contact and replace the working face before trapped particles or sticky residue can be dragged across the part.
Touch-panel and LCD work
Identify the exact cleaning stage and substrate. Cleaning a fixture, removing perimeter adhesive and preparing a bonding face are different tasks, even when they occur at the same workstation.
Measure the useful result
- Residue removed per fresh cloth face.
- Visible film after evaporation.
- Marks or particles under the normal inspection lighting.
- Ease of controlling the fold around the part.
Use these observations to compare S5009 with the plain-weave S309A or twill S4009.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Silicone oil; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Food processing; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
