Cleanroom Wipes
Woven Microfiber Cleanroom Wipes S4009 Twill 110 g/m²
| Material | Polyester and nylon |
|---|---|
| Construction | Woven twill |
| Basis weight | 110 g/m² |
| Thickness | 0.22 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 10; Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥300 — unit/method to confirm |

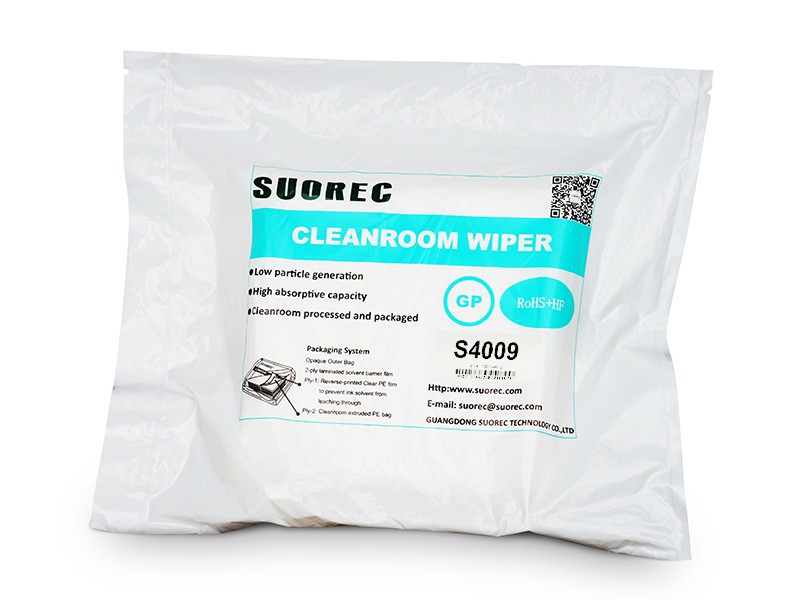

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

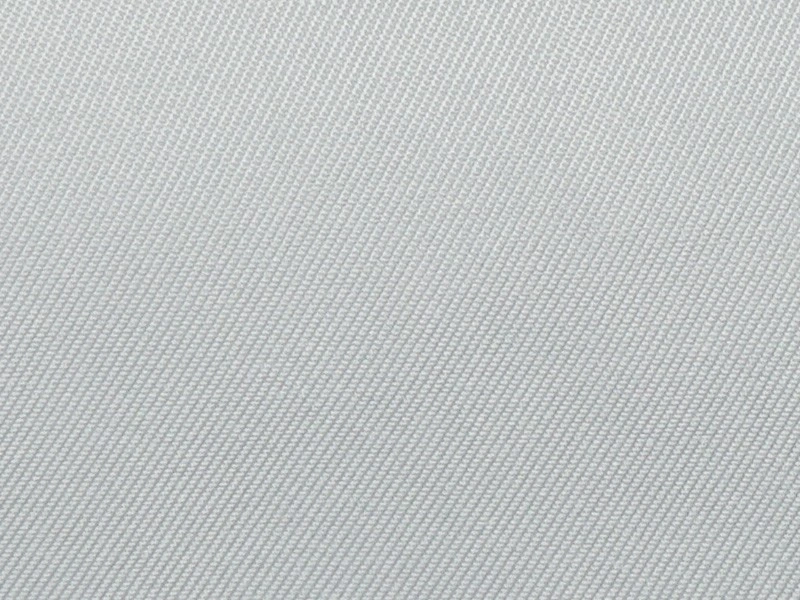

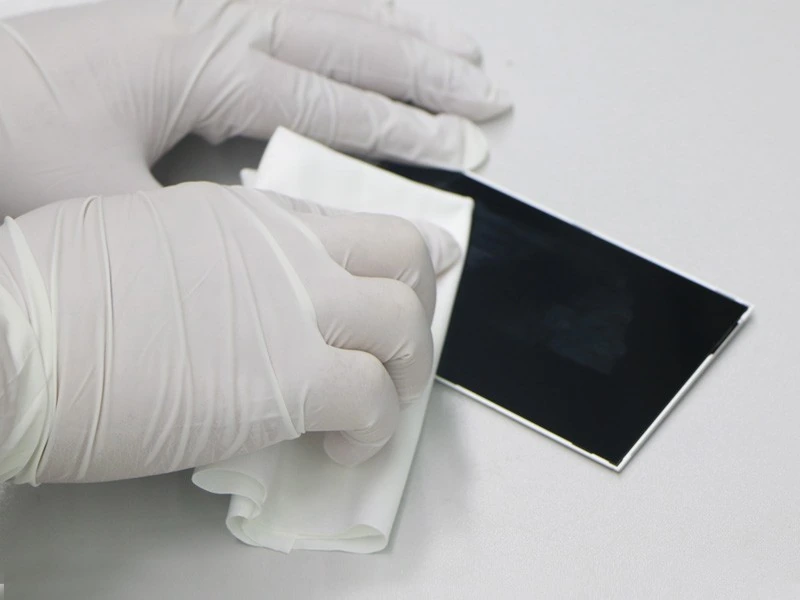

S4009 is a woven polyester-nylon microfiber wipe with a twill structure. It provides a thin contact face for cleaning suitable touch-panel, LCD and precision assembly surfaces.
Assess the twill contact pattern
A twill weave presents a different surface pattern from a plain weave. S4009 is useful to compare where the cleaning task involves thin films or adhesive residue and the operator needs a compact woven cloth.
Keep the cleaning liquid and wiping direction consistent during the comparison. Inspect for both residual film and directional marks after drying rather than selecting solely by how the cloth feels in the hand.
Before bonding
Use the surface-preparation procedure approved for the adhesive or coating. A visually clean surface is not automatically ready for a critical bond.
Around fixtures
Prevent the cloth from catching on sharp edges or dragging residue from a neighbouring area. Fold the sealed rim away from the working face where necessary.
Choose the sheet size around the actual contact area. A smaller sheet can reduce handling clutter, while a larger one supplies additional fresh folded faces between changes.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Ionic contamination; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Medical inspection work areas; Glass products; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
