Cleanroom Wipes
Sub-Microfiber Cleanroom Wipes W4009C 103 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 103 g/m² |
| Thickness | 0.38 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

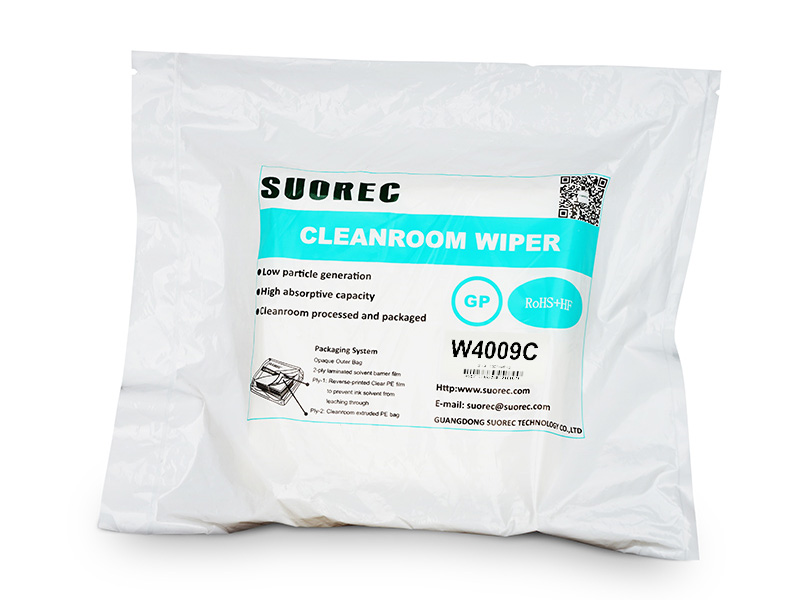

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

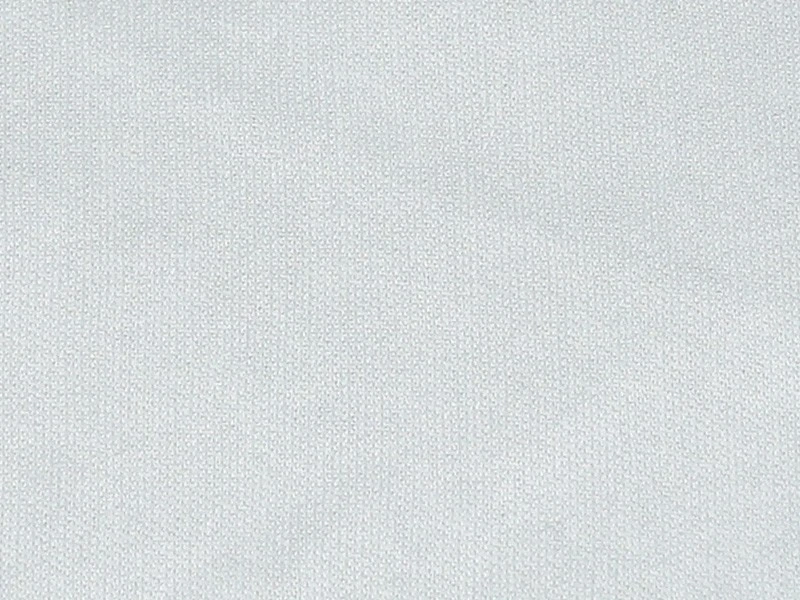

W4009C is a lightweight straight-texture polyester wipe in the sub-microfiber range. It provides a close fabric face for LCD-related work, assembly fixtures and contamination-sensitive surface-cleaning trials.
Make a light wipe work consistently

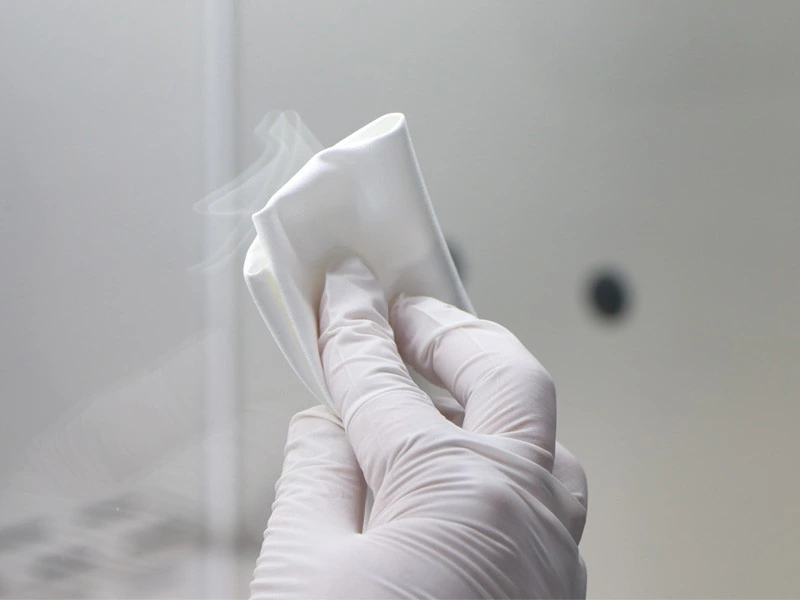

A light cloth is easy to handle, but too much cleaning liquid can cause it to bunch or leave a wet trail. For W4009C, set the wetting amount and folding method together so the working face remains controllable throughout the pass.
On small display-related parts, separate loose-particle removal from the final wet clean. This reduces the chance of dragging hard debris across the finish.
Match the report to the process risk
- Ionic contamination
- Request the ions measured, extraction conditions and applicable limits.
- Halogen-related requirements
- Define the substance limits relevant to the purchasing specification.
- Finished cleanliness
- Confirm that the evidence describes the selected washed and cut product.
These documents answer different questions and should not be treated as interchangeable cleanliness certificates.
Use the approved sheet count and washing option on the order so operators receive a consistent dispensing format.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 100 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Ionic contamination; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Assembly; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
