Cleanroom Wipes
Sub-Microfiber Cleanroom Wipes B4009C 100 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 100 g/m² |
| Thickness | 0.35 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

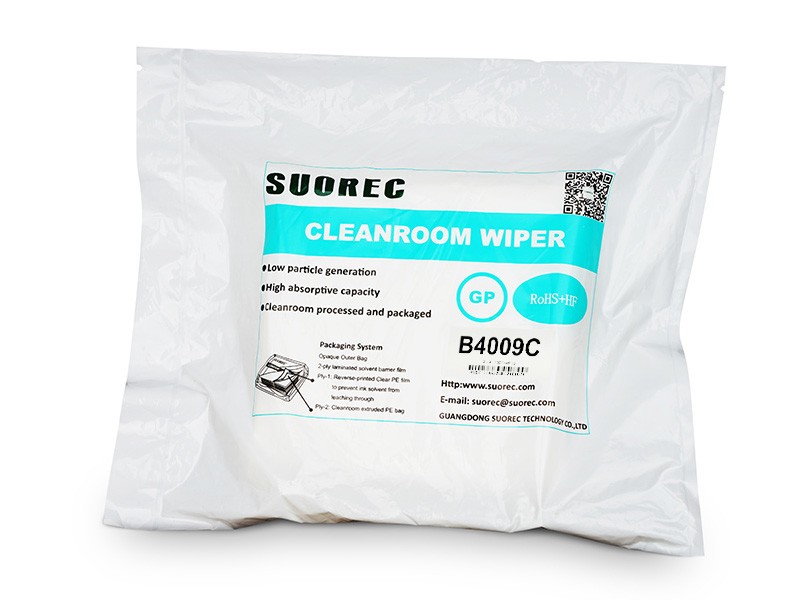

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

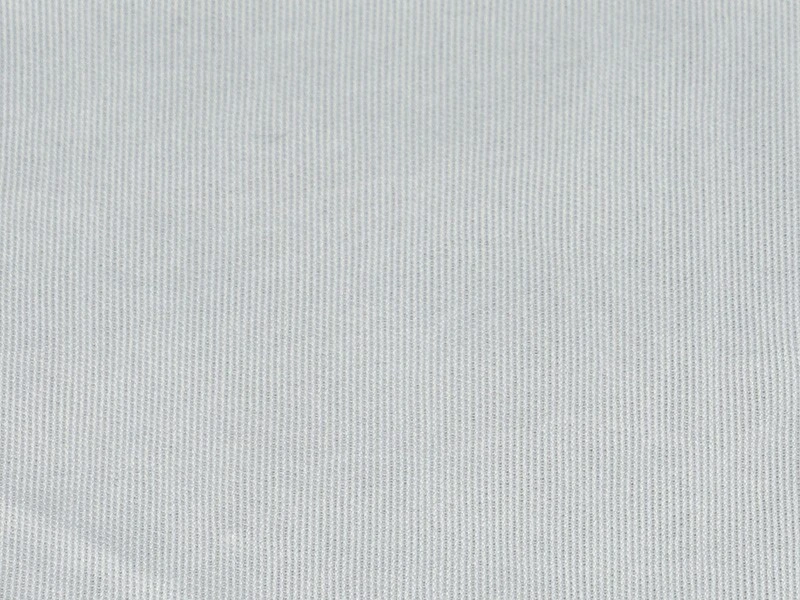

B4009C is a lightweight sub-microfiber polyester wipe with a straight-knit surface. It suits trials involving frequent cloth changes and small, lightly contaminated precision surfaces.
Frequent changes for light cleaning loads
For lightly contaminated parts, a heavy cloth may add bulk without reducing the number of changes required by the process. B4009C offers a lighter construction that can be folded into a small working face and discarded at the defined change point.
Base replacement frequency on the contamination being removed and the acceptance requirement. A white-looking wipe can still contain particles or dissolved residue that should not contact the next part.
Where a light sheet has limits
Large liquid volumes or heavy deposits may require too many sheets. Compare total consumption and the number of passes with a heavier grade before assigning this model to demanding maintenance cleanup.

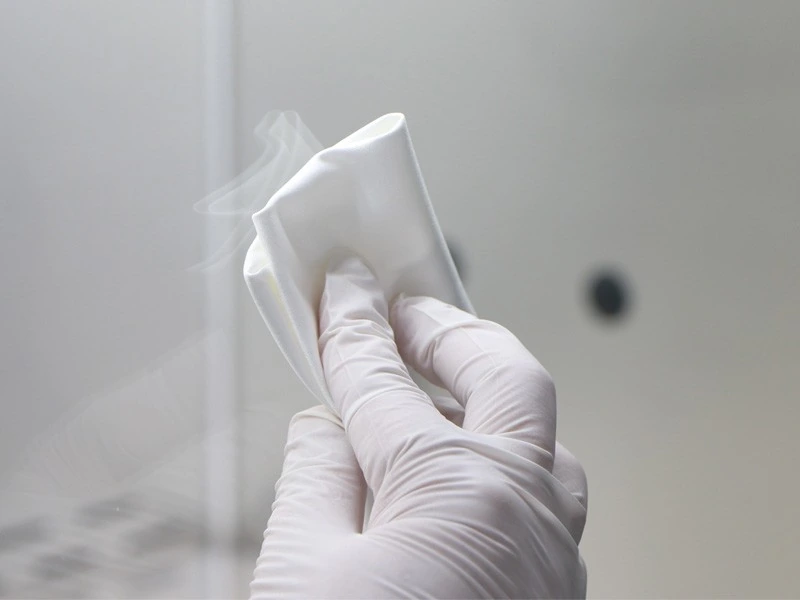

Small LCD and assembly surfaces
Check that the cloth remains flat under the chosen holding method. Use an approved cleaner, keep the cut edge away from the critical face and inspect for streaking after evaporation. The supplied washing designation does not establish sterility or a guaranteed room classification.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 100 | 20 |
| 9 × 9 in | 100 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Liquid particle count (LPC); Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Assembly; Semiconductor processes; LCD panels; Optical products; Precision electronics; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
