Cleanroom Wipes
Sub-Microfiber Cleanroom Wipes 4009A 165 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 165 g/m² |
| Thickness | 0.40 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

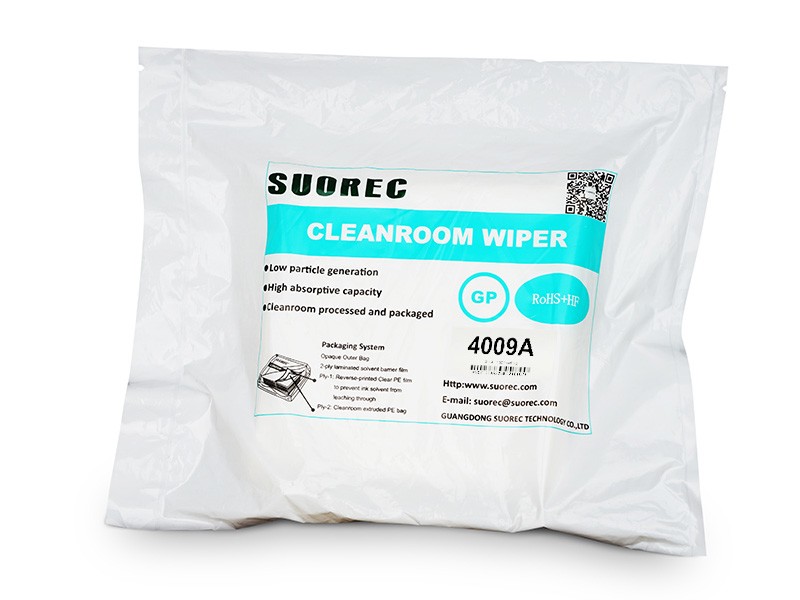

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

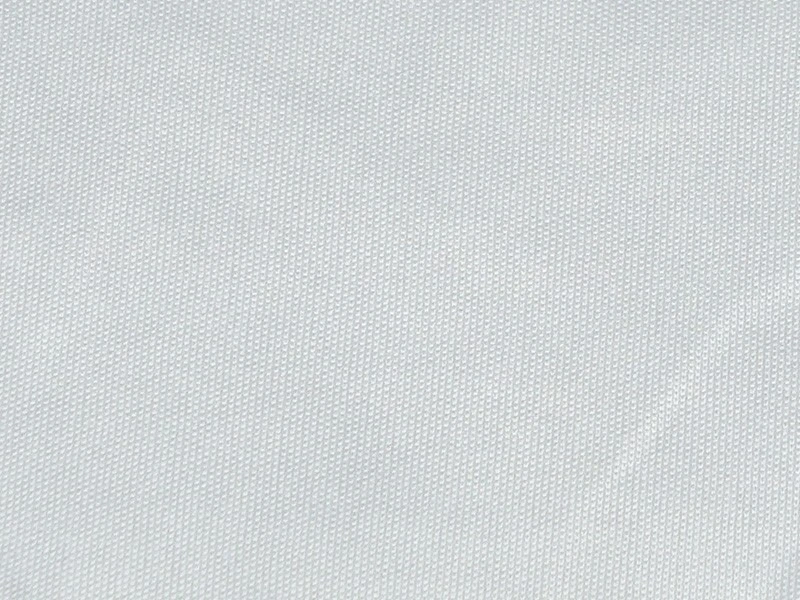

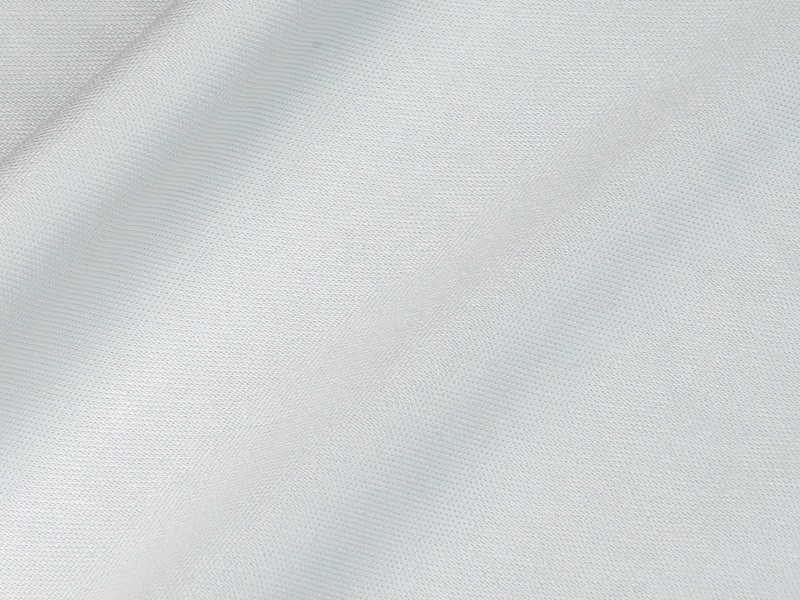

4009A is a sub-microfiber polyester wipe with a close straight-texture knit. It is intended for controlled removal of fine residues on suitable electronics surfaces and production fixtures.
Control fine residues before the next operation
Metallic dust or adhesive residue around an assembly operation needs a defined removal step. 4009A provides a close fabric face for evaluating this work, but a wipe alone cannot establish that a surface is safe for the next process.
For battery-related production, identify whether the contact is with tooling, an enclosure or an exposed electrode. These surfaces have different chemical and contamination requirements. Qualify the exact cleaning step rather than assuming one cloth is suitable throughout the line.
What to check in a cleaning trial
- Visible pickup without pushing residue into edges or recesses.
- The dried surface after the approved cleaner has evaporated.
- Particles and ions against the limits relevant to the part.
- Whether the selected fold keeps the finished edge away from sensitive contact.

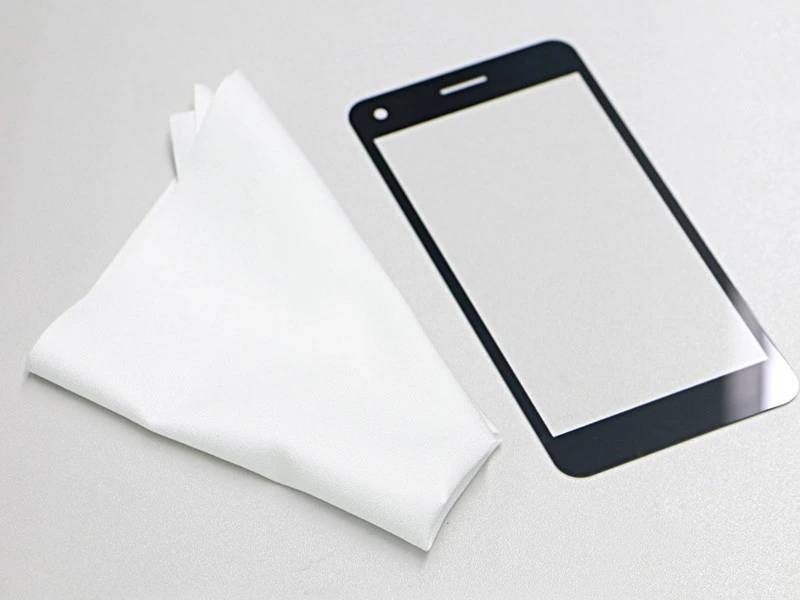

The same close-knit construction can be evaluated for LCD-related fixtures. Keep separate procedures where the contamination and surface finish differ; an accepted tool-cleaning method is not automatically suitable for direct product contact.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
Halogens; Ionic contamination; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Semiconductor processes; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
