Cleanroom Wipes
Polyester Cleanroom Wipes B1009C Mesh 130 g/m²
| Material | Polyester yarn |
|---|---|

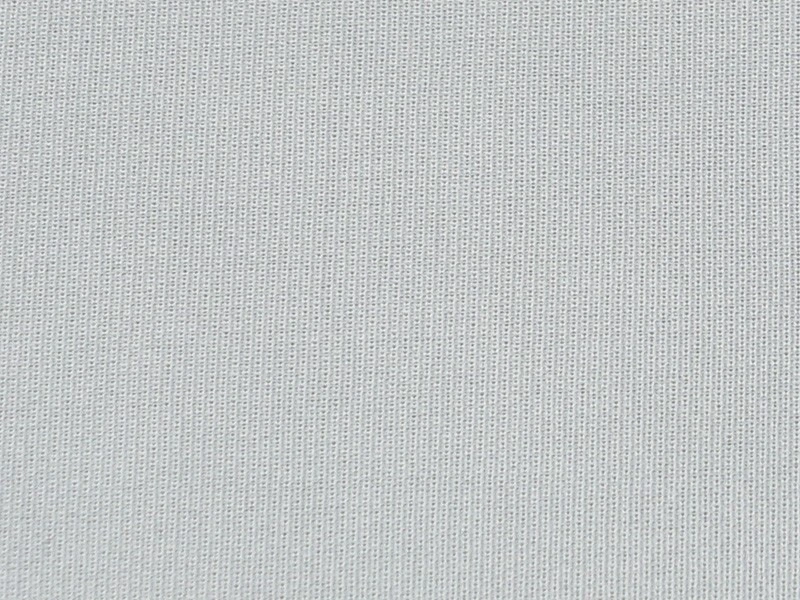

| Construction | Knitted mesh |
| Basis weight | 130 g/m² |
| Thickness | 0.40 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

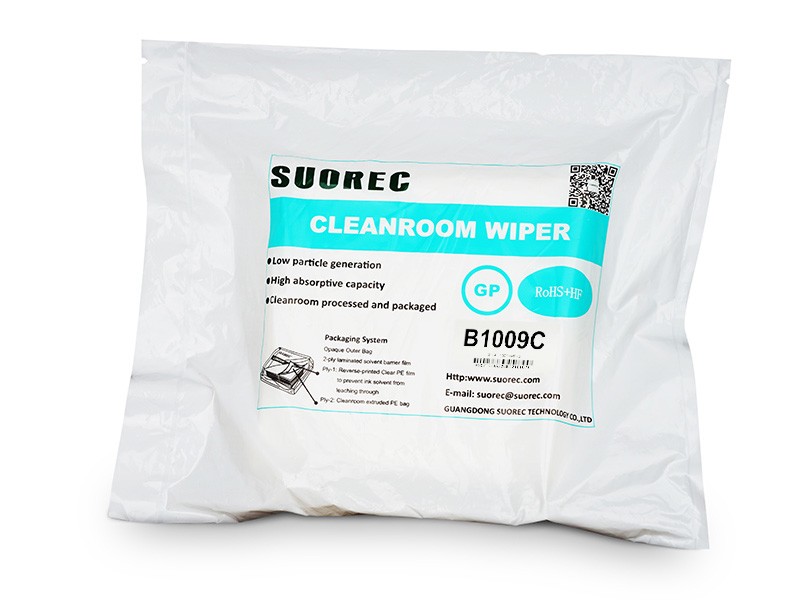

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
B1009C is a polyester mesh wipe intended for particle pickup around PCB exposure equipment and controlled assembly work. Its flexible open texture offers a practical alternative to a close straight-knit face.
Manage dust around the exposure area
Cleaning the workpiece alone leaves nearby fixtures as a source of recontamination. B1009C can be evaluated for benches, accessible equipment and approved glass surfaces as part of a defined clean-to-dirty sequence.
Use the mesh deliberately

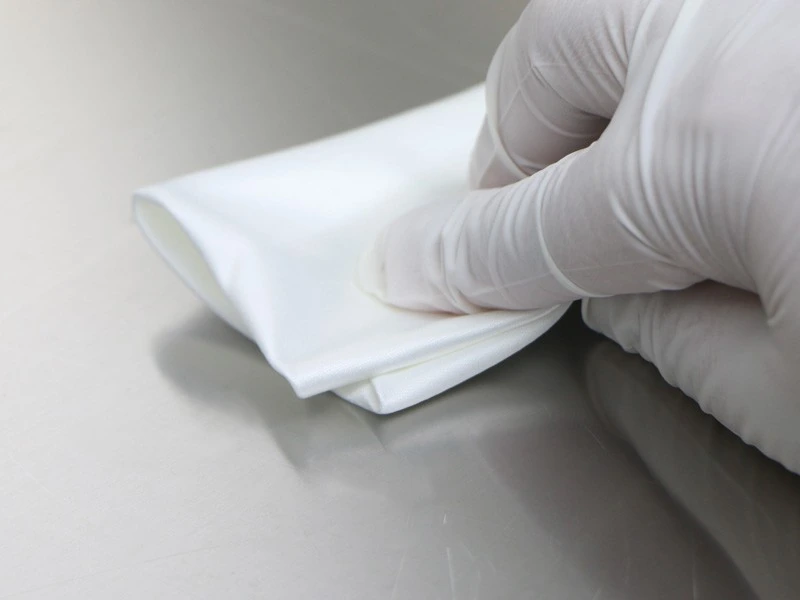

The open texture provides spaces for collected particles. Keep a flat working face, avoid bunching the sheet and replace it when the fold is loaded. A heavily loaded cloth should not be used as a final polishing wipe.
Silicone-sensitive assembly
Where bonding or coating performance is sensitive to silicone residues, request the relevant test method and acceptance limit for the finished wipe. The availability of a test report should not be interpreted as a universal guarantee for every adhesive or optical coating.
Choose the edge treatment around how the cloth will be held. Folding a laser-sealed rim away from the contact surface can be preferable to allowing it to trail across a delicate part.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Silicone oil; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Assembly; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
