Cleanroom Wipes
Polyester Cleanroom Wipes 5009 Straight Texture 175 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 175 g/m² |
| Thickness | 0.40 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

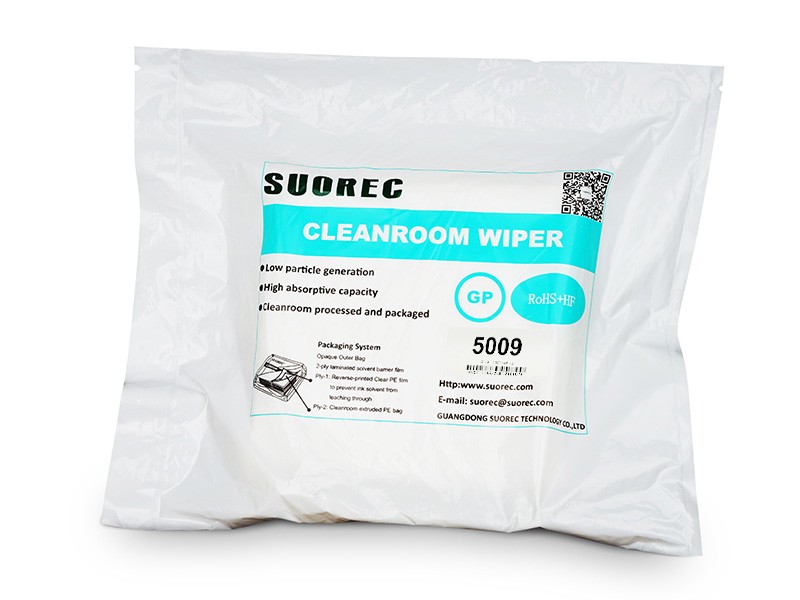

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
5009 is a substantial straight-texture polyester wipe for LCD-related cleaning and other operations requiring a closely knitted working face. It supports a firm fold for controlled contact on small accessible surfaces.
A substantial cloth for small display work

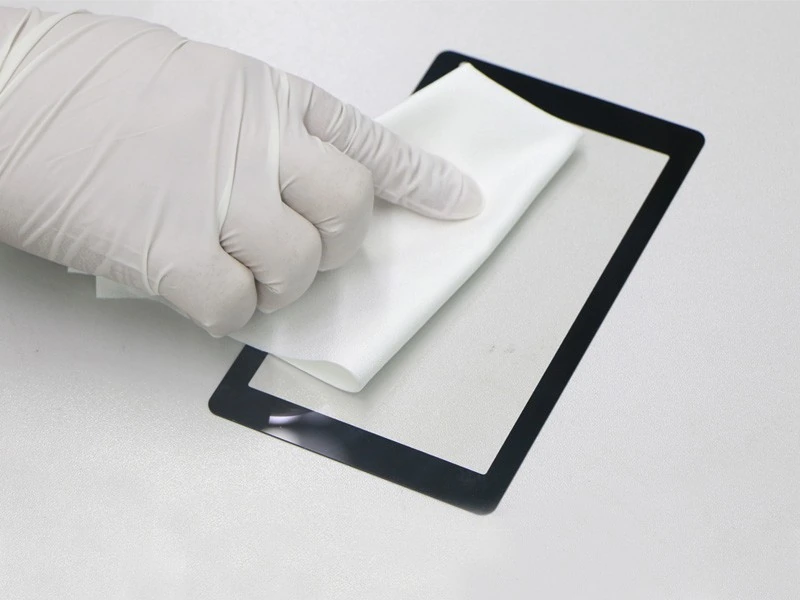

Small LCD parts can be awkward to clean with a loose, oversized sheet. A firm fold of 5009 presents a manageable contact area while keeping unused material away from adjacent fixtures. Choose a sheet size that can be handled without dragging its edge across the part.
The closely knitted surface is useful for evaluating repeated wiping contact. It does not make every coated surface scratch resistant: remove hard debris first and qualify the approved liquid on the actual finish.
Separate preparation from final cleaning
Use one sheet to remove the initial contamination and another for the final pass before assembly. A cloth carrying visible soil should not return to the critical surface simply because its remaining area still looks white.
Keep the workstation clean
Protect open packs from nearby cutting, carton handling and powder-generating work. The selected washing condition can be lost through poor dispensing even when the incoming package is intact.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 100 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Liquid particle count (LPC); Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Glass products; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
