Cleanroom Wipes
Polyester Cleanroom Wipes 3009D Straight Texture 126 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 126 g/m² |
| Thickness | 0.46 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

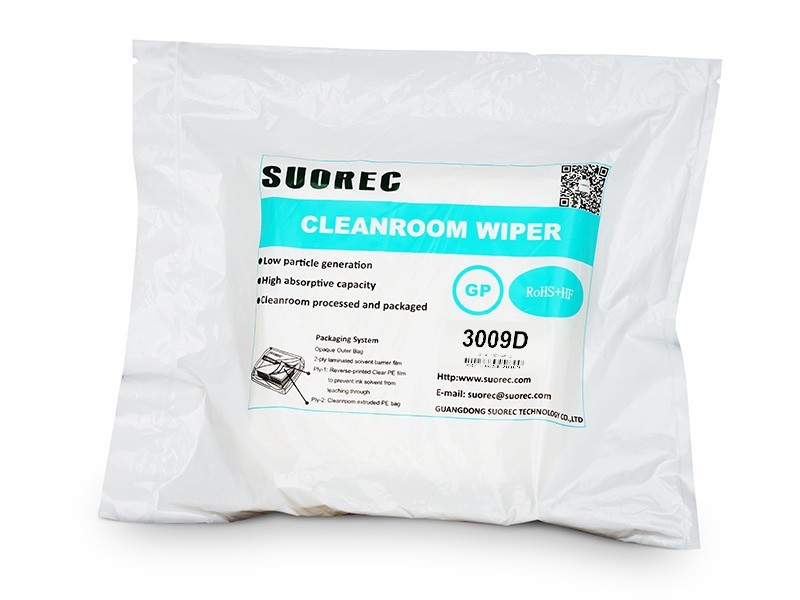

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

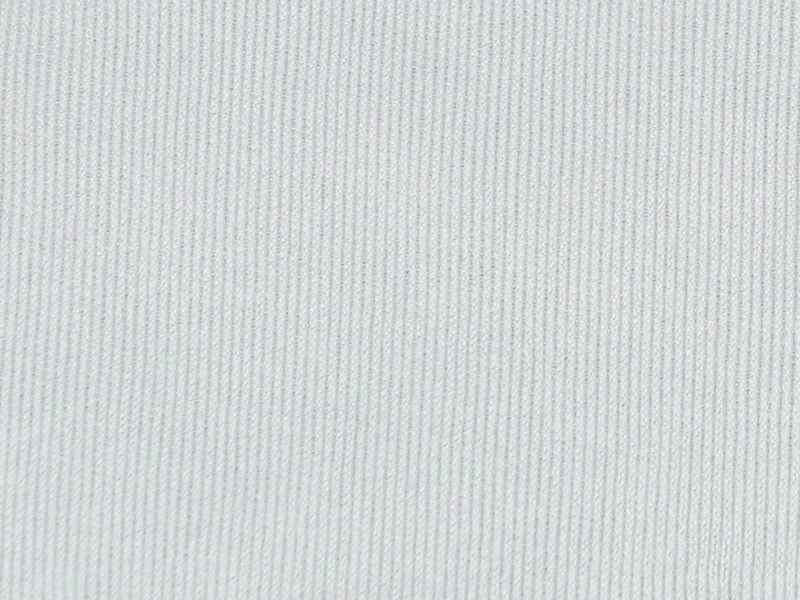

3009D combines a straight-texture polyester face with a relatively lofty feel for glass and PCB exposure-area cleaning. It is an option where operators need liquid pickup and a flexible folded sheet.

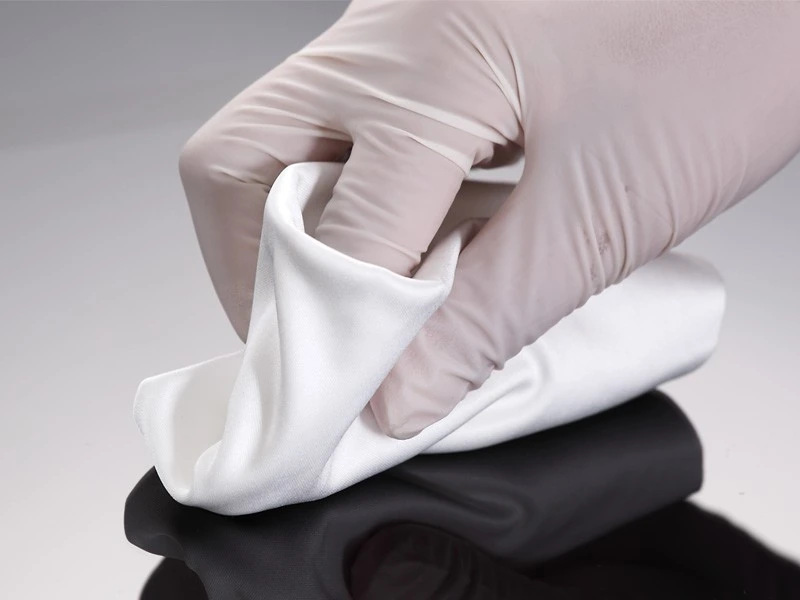

A fresh face for each glass-cleaning pass
Glass cleaning is often undermined by reusing a cloth after it has collected dust. The fabric spaces in 3009D help collect displaced soil, but the cleaning sequence must carry that soil away from the work. Fold into separate working faces and move systematically across the surface.
- Remove loose grit before wet contact.
- Moisten the working face with an approved cleaner rather than flooding the panel.
- Make a controlled pass and turn to an unused face.
- Check the dried glass under the inspection lighting used by the process.
Select the finished pack quantity explicitly: different published packing descriptions exist for this model, so the order should state the accepted sheet count.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Packing shown follows the detailed specification. A separate listing gives different sheet counts; confirm the selected pack before ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Glass products; Semiconductor processes; Optical products; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
