Cleanroom Wipes
Polyester Cleanroom Wipes 2009D Straight Texture 140 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 140 g/m² |
| Thickness | 0.40 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

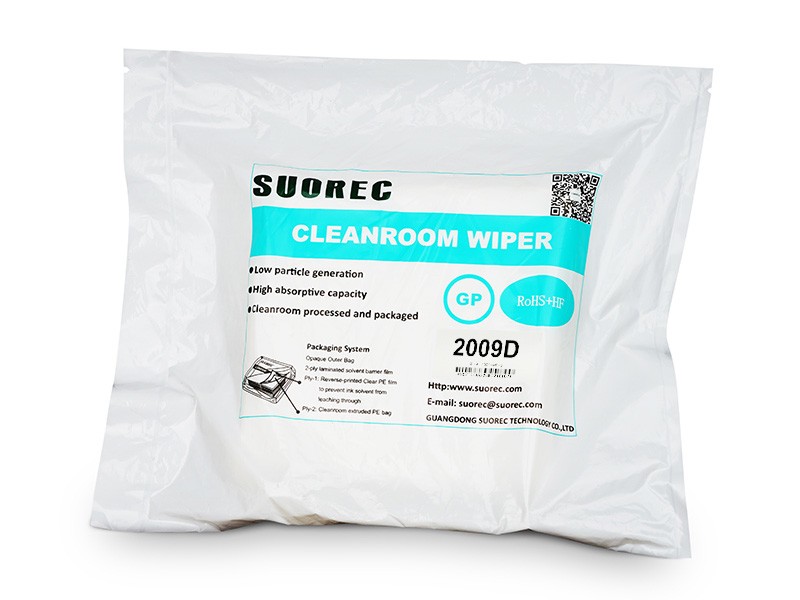

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

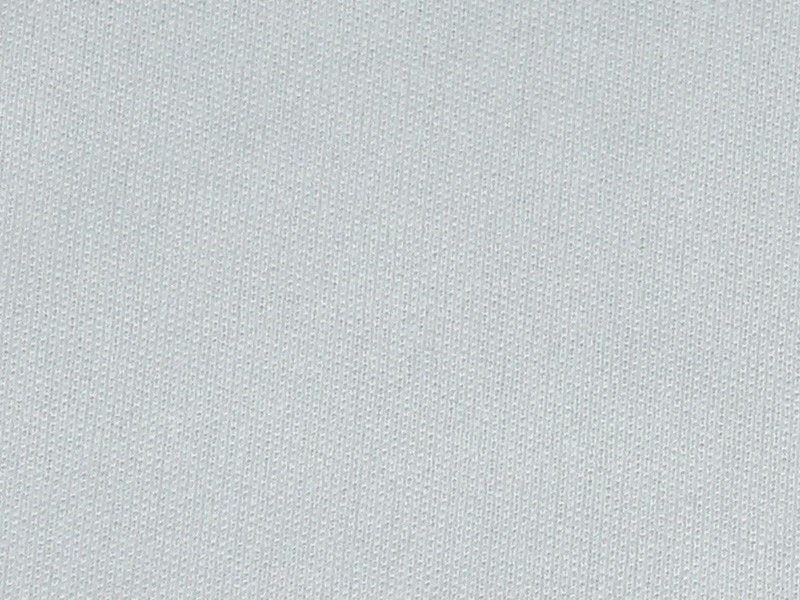

2009D has a close knitted, straight-texture polyester surface for wiping small LCD-related parts and production fixtures. Its construction is intended to support repeated contact without the open mesh feel of the 1009 family.
A closer fabric face for controlled contact

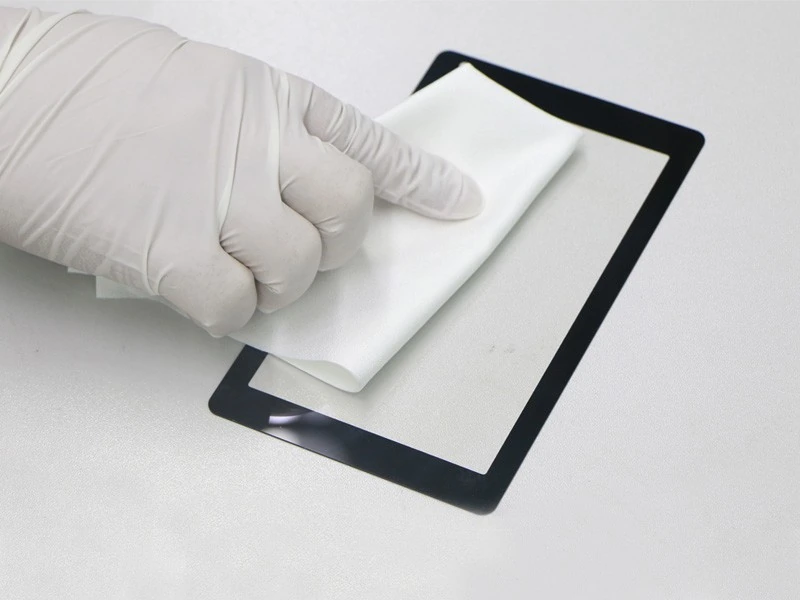

For a small display-related surface, consistency of contact can matter more than the size of an open mesh. The closely knitted face of 2009D provides a regular wiping surface that can be folded to fit the work area.
Before lamination or assembly, remove loose hard particles first. A clean cloth cannot prevent scratching if an abrasive particle is trapped between the wipe and the part. Use the approved cleaning liquid and inspect the surface after evaporation.
Useful trial observations
- Does the sheet lie flat against the part without bunching?
- Does the selected edge stay outside the critical contact area?
- Are particles, streaks or visible fibres present after the defined number of passes?
- Can operators repeat the folding and replacement procedure?
These observations help compare 2009D with a mesh alternative. Keep the washing designation and package handling identical during the comparison so the effect of the fabric construction is not obscured.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Glass products; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
