Cleanroom Wipes
Polyester Cleanroom Wipes 1009W Mesh 148 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 148 g/m² |
| Thickness | 0.48 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

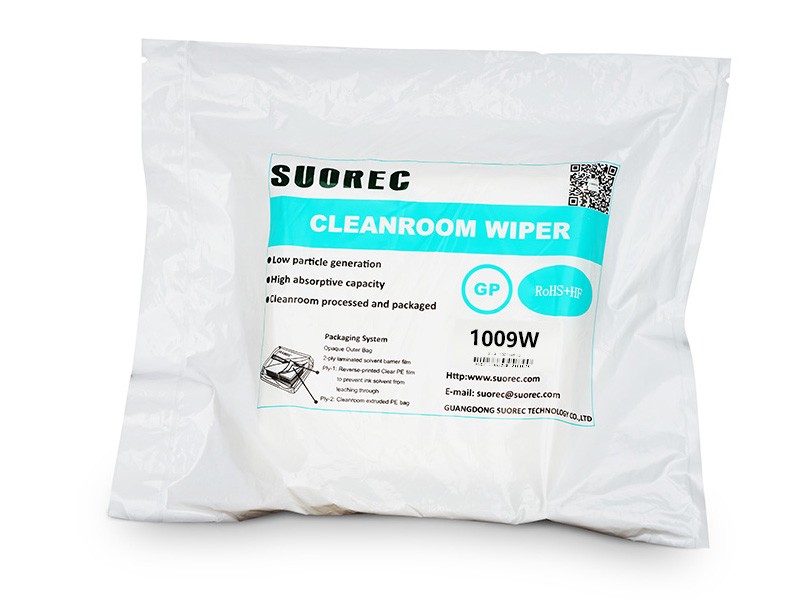

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
1009W is a polyester mesh wipe with a soft, open surface for particle pickup and wet cleaning. It is a candidate for PCB exposure-room equipment, glass surfaces and related controlled workstations.
Reduce residue transfer between passes

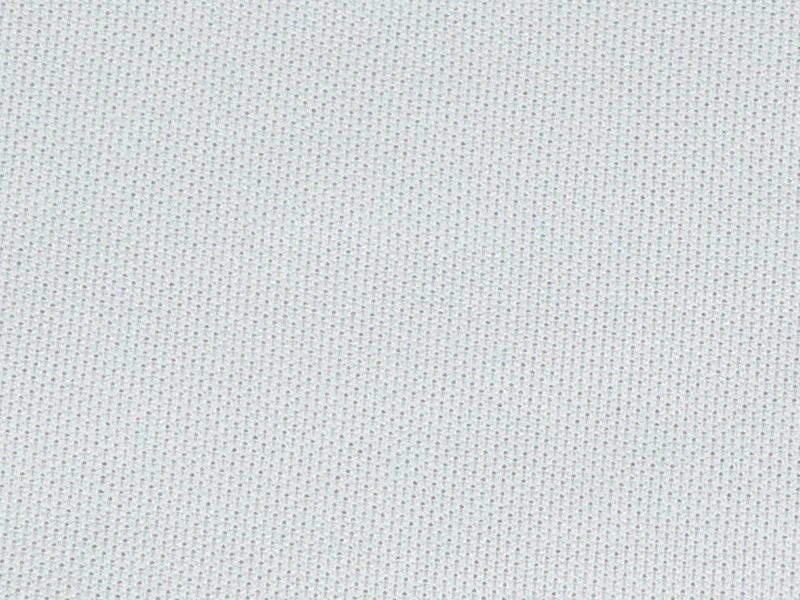

When a cloth retains particles effectively, it must also be replaced at the right point. The open mesh of 1009W offers spaces for collected soil, but a loaded wipe can release that soil if it is pressed onto another surface.
Work from cleaner areas toward dirtier areas and use a fresh face for the final pass. For exposure equipment, include surrounding fixtures in the cleaning plan so dust from an adjacent area does not immediately return to the cleaned surface.
Glass cleaning

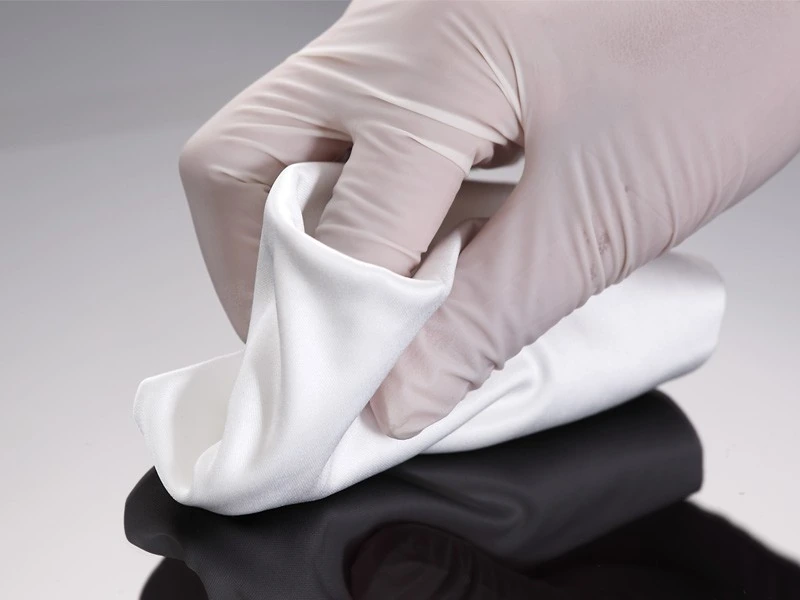

Check streaks after the approved liquid has evaporated. Excess solvent or contamination remaining in the cloth can leave a film even when the fabric itself is low lint.
Ordering by size
A small sheet gives precise control, while a larger sheet provides more usable folded faces. Select the format around the area cleaned per change, not simply the largest available sheet.
Qualify the selected washing and edge finish before assigning the wipe to an especially sensitive optical or semiconductor contact surface.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
