Cleanroom Wipes
Polyester Cleanroom Wipes 1009N Mesh 170 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 170 g/m² |
| Thickness | 0.53 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

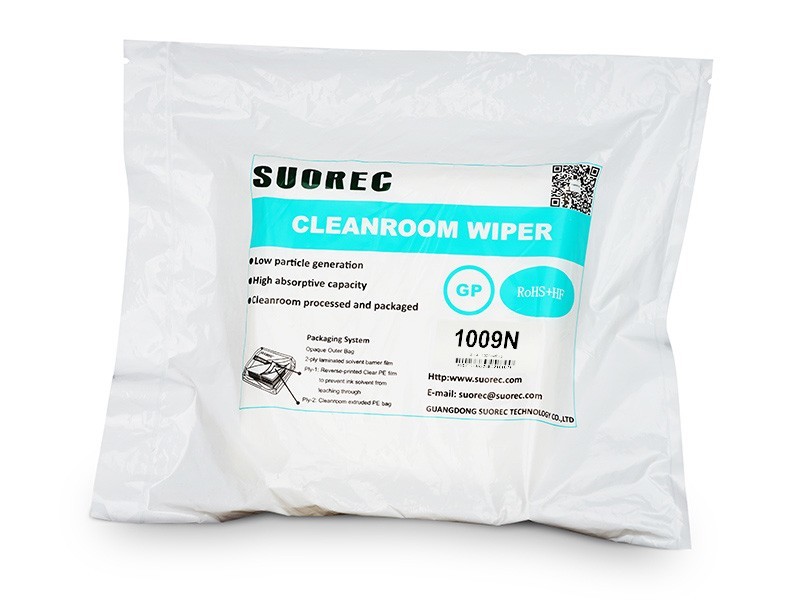

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

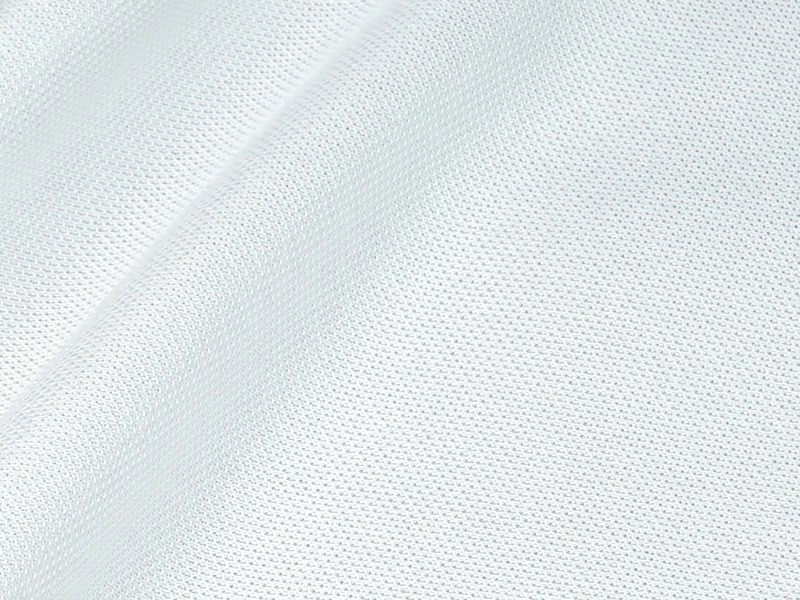

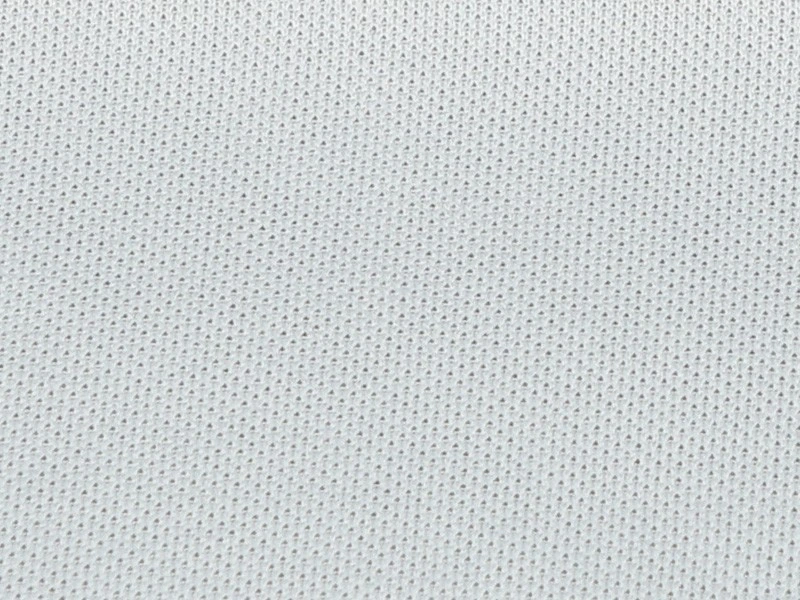

1009N uses a relatively open polyester mesh intended to pick up larger particles and loosened adhesive residue. Its stronger fabric construction supports controlled manual cleaning of suitable production surfaces.
Adhesive removal is a two-stage task

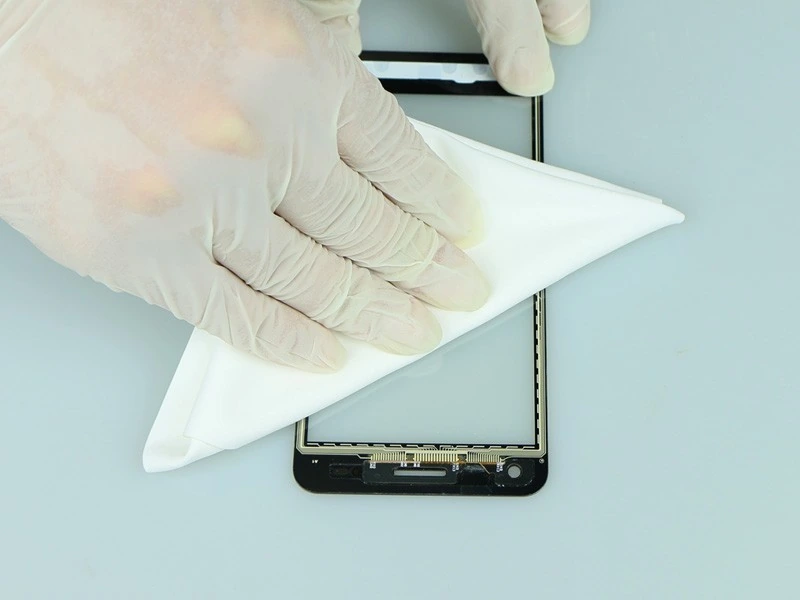

A wipe can collect softened adhesive, but it does not make an incompatible solvent safe for the part. First establish the cleaner and dwell conditions that loosen the residue without attacking the substrate. Then use a fresh section of 1009N mesh to lift the material away.
The relatively open texture is helpful when the contaminant includes larger particles. It can also retain abrasive grit, so inspect the working face and replace it before moving to a delicate or already-clean surface.
- Loosen: use the approved chemistry and allow the specified contact time.
- Collect: lift residue with short controlled passes rather than spreading it over a wider area.
- Finish: use a separate clean wipe for the final pass and inspect for remaining film.
For high-gloss coatings or soft plastics, test the complete cloth-and-cleaner combination on an appropriate sample. Do not treat a durable mesh as a universal polishing cloth.
Sheet packing
9 in: 150 sheets/bag; 6 in: 150 sheets/bag; 4 in: 600 sheets/bag. Carton quantity to be confirmed.
Fabric and product details
Documentation to request
RoHS; Halogens; Silicone oil; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
