Cleanroom Wipes
Polyester Cleanroom Wipes 1009K Mesh 180 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 180 g/m² |
| Thickness | 0.53 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

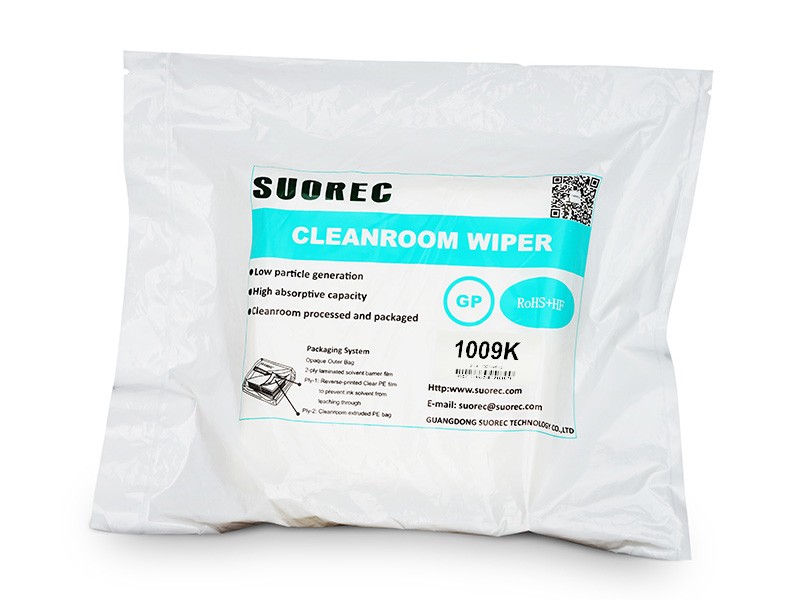

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
1009K is the heavier mesh option for cleaning deposits from precision printing equipment and similar process surfaces. Its substantial polyester fabric is useful where operators need a durable folded working face.
Cleaning deposits without excessive scrubbing
Printing residues can load a cloth quickly. The heavier mesh of 1009K gives the operator a more substantial folded pad, while the open texture helps collect displaced material. Use the appropriate cleaner to soften compatible residues before increasing mechanical pressure.
Pressure is not a substitute for changing a saturated or contaminated wipe. Once the working face is loaded, further rubbing can spread ink or drag trapped particles across the finish.

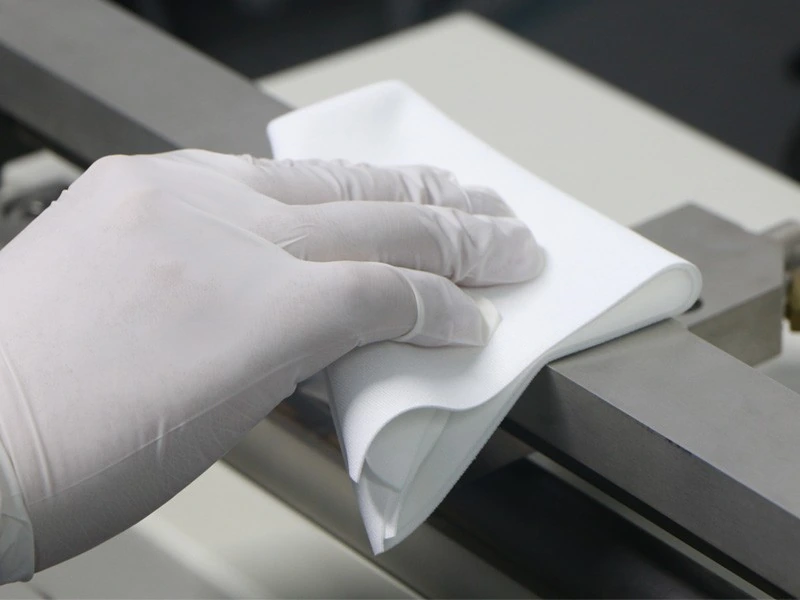

At the cleaning station
Keep separate sheets for the initial soil-removal pass and final cleaning. Inspect accessible corners and joints where the mesh can bridge a recess rather than contact it.
Before specifying a heavier cloth
Check that the folded thickness fits the available clearance and that liquid retention does not leave the surface too wet. A smaller sheet may improve control without changing the fabric grade.
The purchase description should include the washing designation, finished edge and required package size. Equipment compatibility and the approved cleaning chemical remain part of the process specification.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Silicone oil; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
