Cleanroom Wipes
Polyester Cleanroom Wipes 1009F Mesh 135 g/m²
| Material | Polyester yarn |
|---|---|

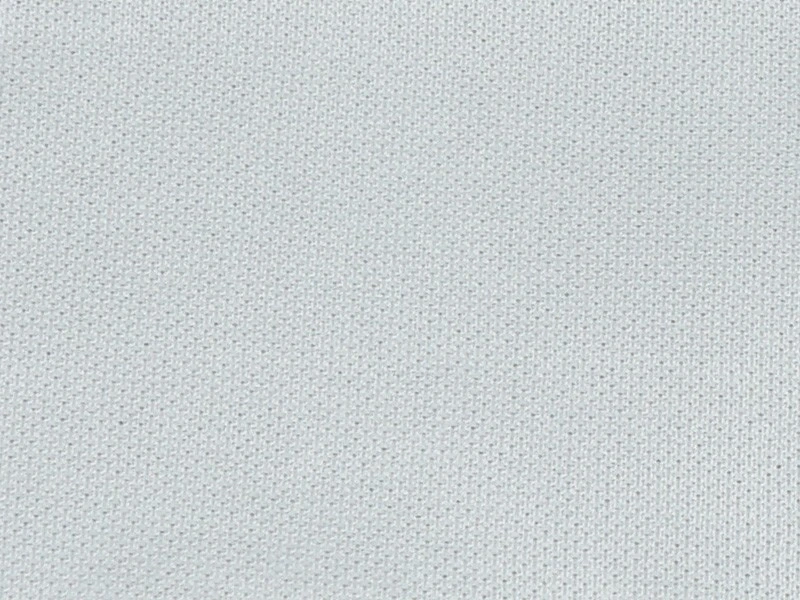

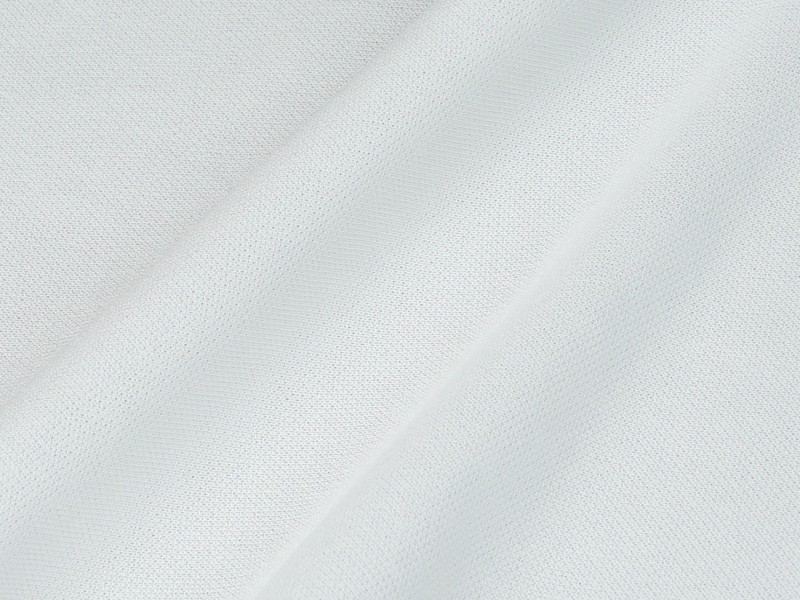

| Construction | Knitted mesh |
| Basis weight | 135 g/m² |
| Thickness | 0.44 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

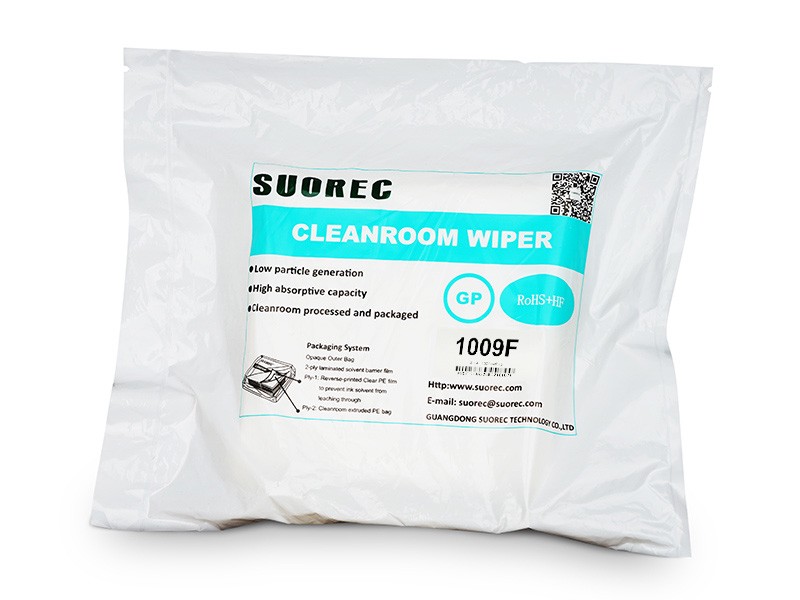

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
1009F is a polyester mesh wipe for day-to-day controlled cleaning where a medium-weight cloth is preferred. It is available with multiple edge treatments and washing designations for different handling requirements.
Keep a routine cleaning step repeatable

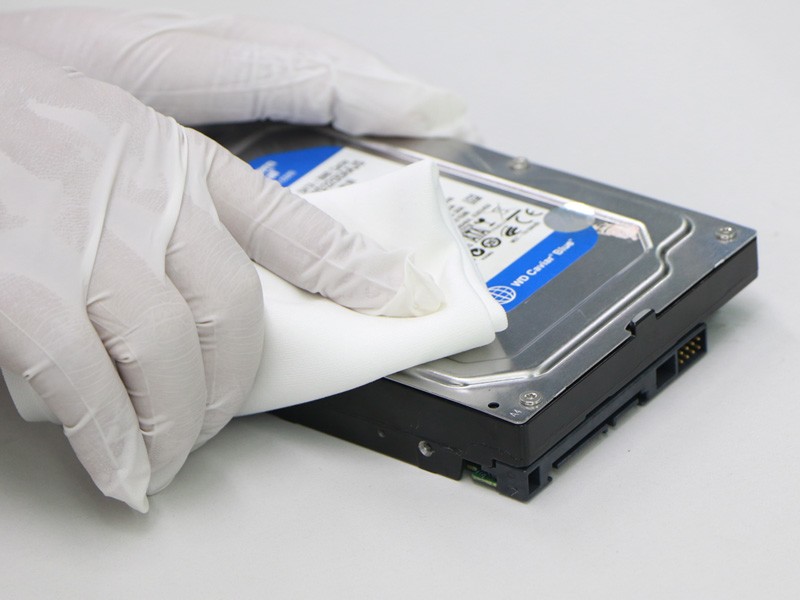

For repeated maintenance tasks, the wipe should be easy to fold, wet and replace in a consistent way. The 1009F mesh is useful for collecting displaced residue while a folded face gives the operator control over the area touching the surface.
Standardize the amount of cleaning fluid, direction of travel and change frequency. Using the same cloth for several unrelated surfaces can carry contamination between them, even when the initial wipe is cleanroom processed.
Do not confuse the two 1009F descriptions
This page covers the standard polyester mesh product. The separate low-ion 1009F listing represents a different procurement requirement. A matching model prefix alone is not evidence that the finished products have the same ionic-residue performance.
Match the edge to contact conditions
Laser sealing helps retain yarn ends, but the sealed rim should be kept away from a delicate finish where possible. An alternative edge can be requested when the task involves small unfolded pieces or a specific handling fixture. Validate the finished edge together with the cloth.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Silicone oil; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
