Cleanroom Wipes
Polyester Cleanroom Wipes 1009D Mesh 125 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 125 g/m² |
| Thickness | 0.41 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

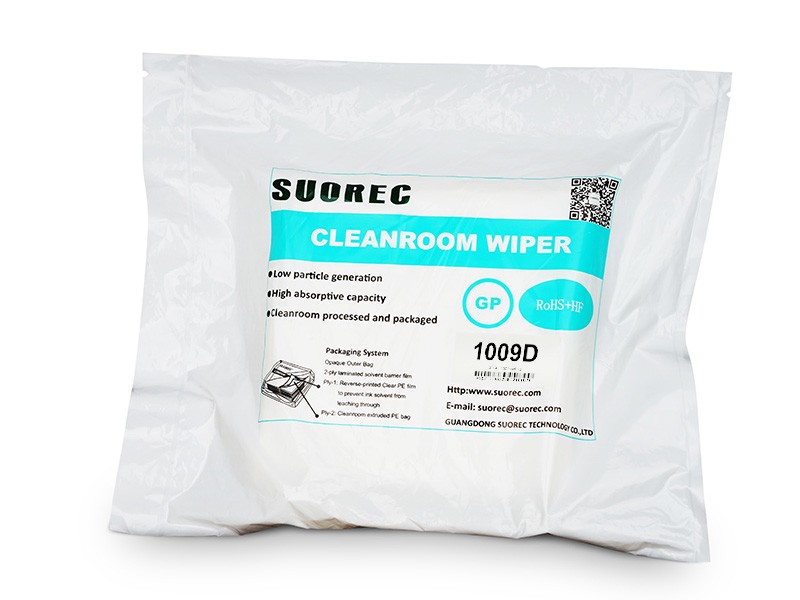

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
1009D offers a lighter polyester mesh alternative within the 1009 family for controlled wiping of equipment and process surfaces. It provides a flexible sheet where users do not need the bulk of a heavier cloth.
A flexible cloth for smaller contact areas
When a wipe is folded around a narrow fixture or held against an edge, excess fabric can obstruct the working area. 1009D is a candidate where a lighter mesh is easier to position and a fresh sheet is used frequently.
The sheet should follow the surface without bunching. Avoid pulling a loaded edge back across the cleaned area; turn the cloth or replace it before starting the next component.
What to compare with 1009C
The difference in fabric weight does not establish a better cleanliness class. Compare handling, liquid retention and residue removal using the same approved chemistry, then check the contamination data for each selected washing option.
A lighter wipe may suit low soil loads, while a heavier cloth may hold its folded shape more firmly. Trial results on the actual part are more useful than assuming the two model codes are interchangeable.
For procurement, identify the sheet dimensions and pack count as well as the model. Agree whether laser, ultrasonic or another listed edge treatment is required before production samples are evaluated.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.

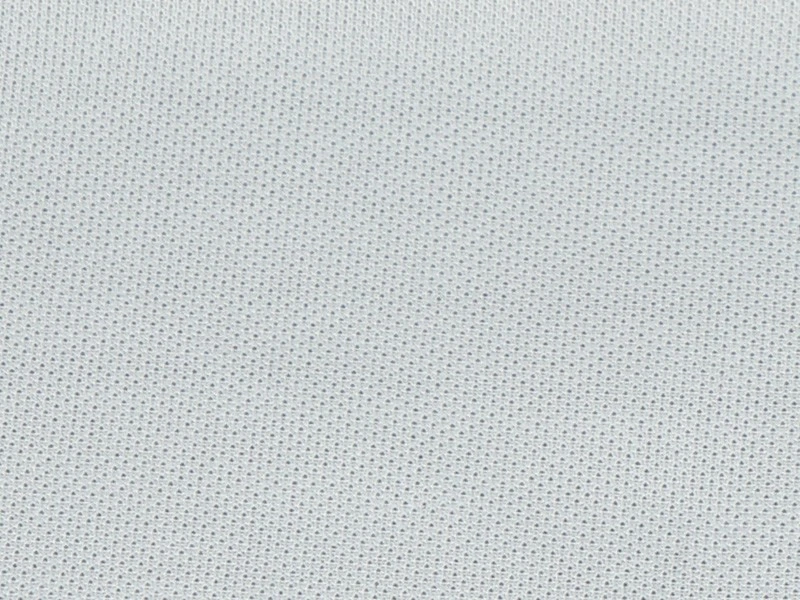

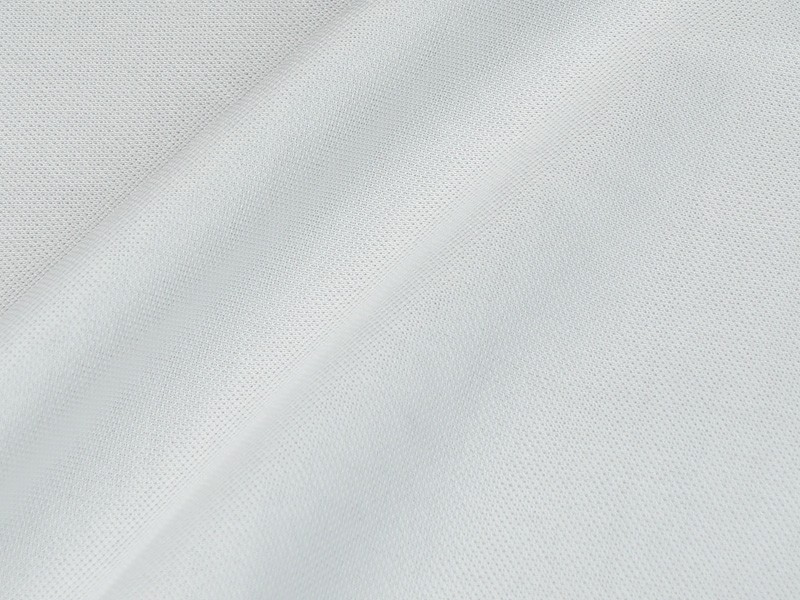

Fabric and product details
Documentation to request
RoHS; Halogens; Silicone oil; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
