Cleanroom Wipes

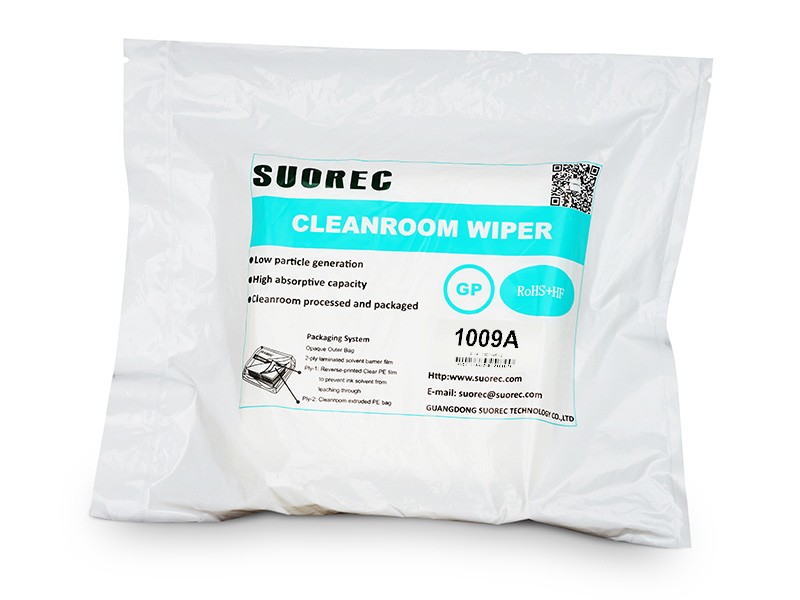

Polyester Cleanroom Wipes 1009A Mesh 150 g/m²
| Material | Polyester yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 150 g/m² |
| Thickness | 0.48 mm |

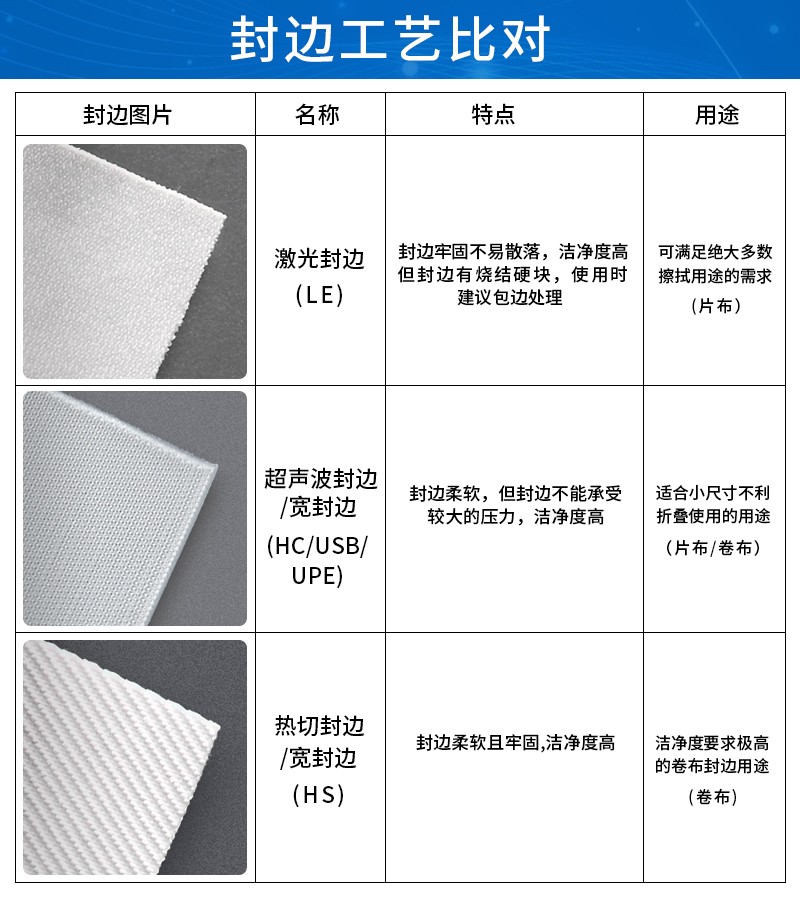

| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥230 — unit/method to confirm |

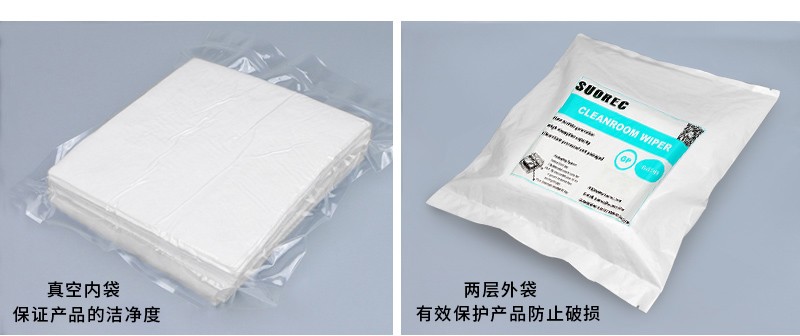

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

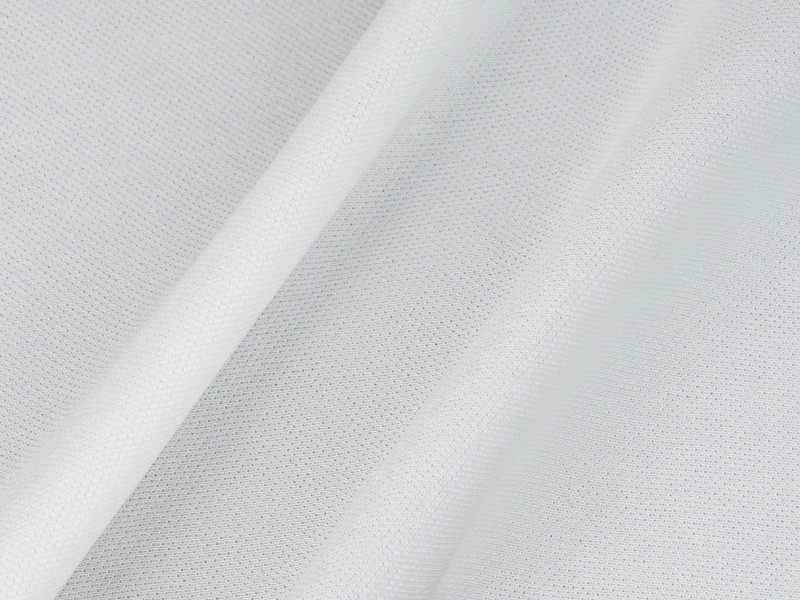

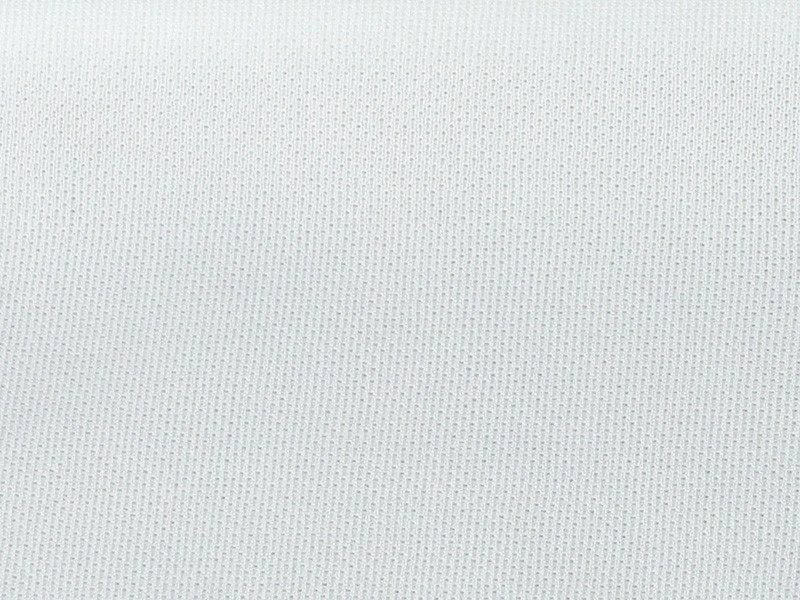

1009A is a knitted polyester mesh wipe for removing visible residue from process surfaces, printing equipment and the edges or backs of suitable workpieces. The textured fabric provides a practical contact surface while the sealed edge helps contain loose yarn ends.
Mesh contact for residue removal

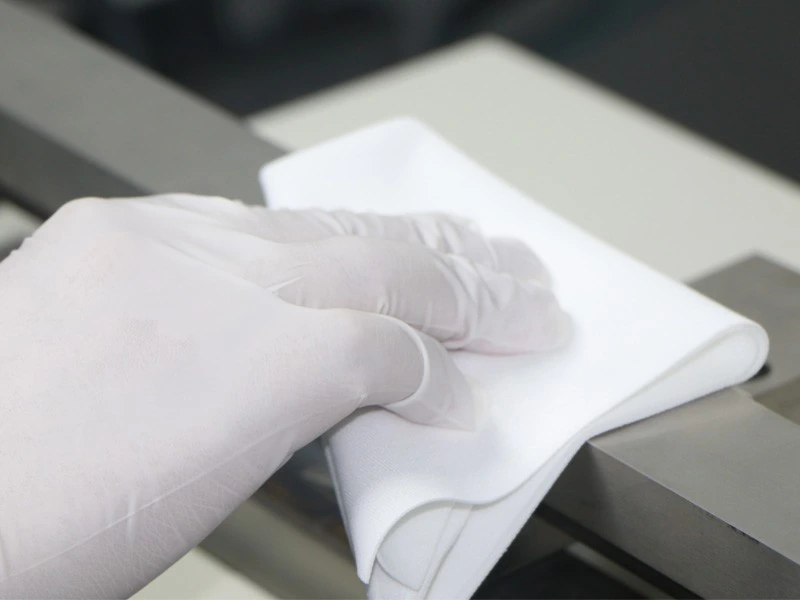

During equipment cleaning, a smooth cloth can spread deposits across a surface before picking them up. The open mesh of 1009A gives displaced particles somewhere to collect between yarns. Fold the sheet to present a clean working face and turn it before the loaded area touches the next surface.
This construction is suited to manual cleaning and accessible surfaces on semi-automatic equipment. For a wafer-related process, qualify the specific contact location, chemistry and contamination limit; an edge or backside cleaning application does not establish suitability for contact with an active device surface.
Protect the working face
Keep the cut edge inside the fold when wiping delicate finishes. Lift away hard particles before applying pressure, and use a new face when the cloth begins to drag.
Specify the complete pack
Choose the sheet size, edge treatment and washing designation together. Vacuum inner packaging supports controlled transfer, but a washed wipe is not automatically sterile.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 600 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 150 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Silicone oil; Ionic contamination; Liquid particle count (LPC); Composition; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
