Cleanroom Wipes
Microfiber Cleanroom Wipes HK509A 195 g/m²
| Material | Polyester and nylon |
|---|---|
| Construction | Knitted straight texture |
| Basis weight | 195 g/m² |
| Thickness | 0.38 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥300 — unit/method to confirm |

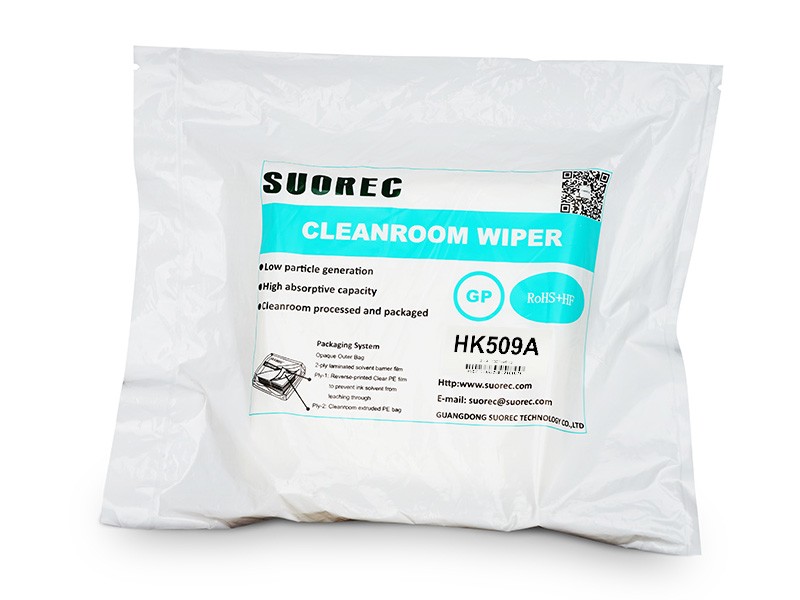

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

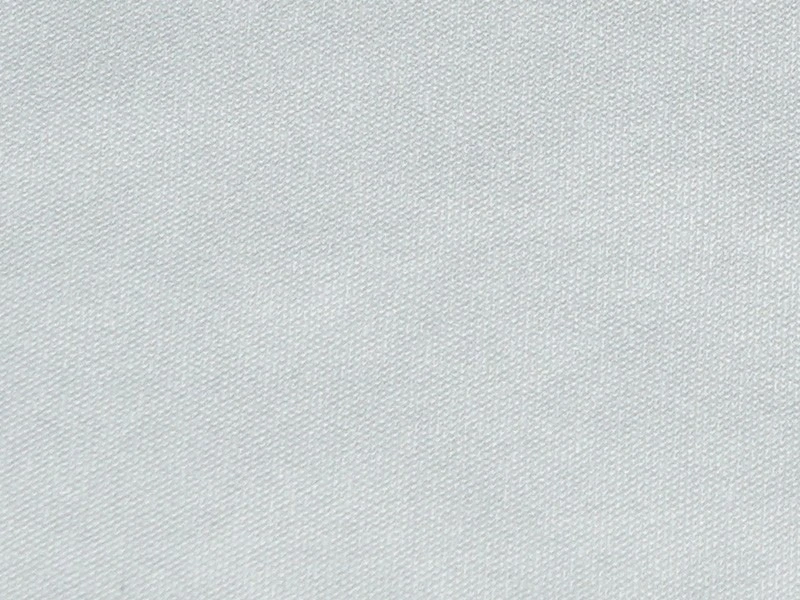

HK509A is a soft straight-texture microfiber wipe made from polyester and nylon. It is intended for evaluating fingerprint and oily-film removal on suitable optical glass and precision production surfaces.

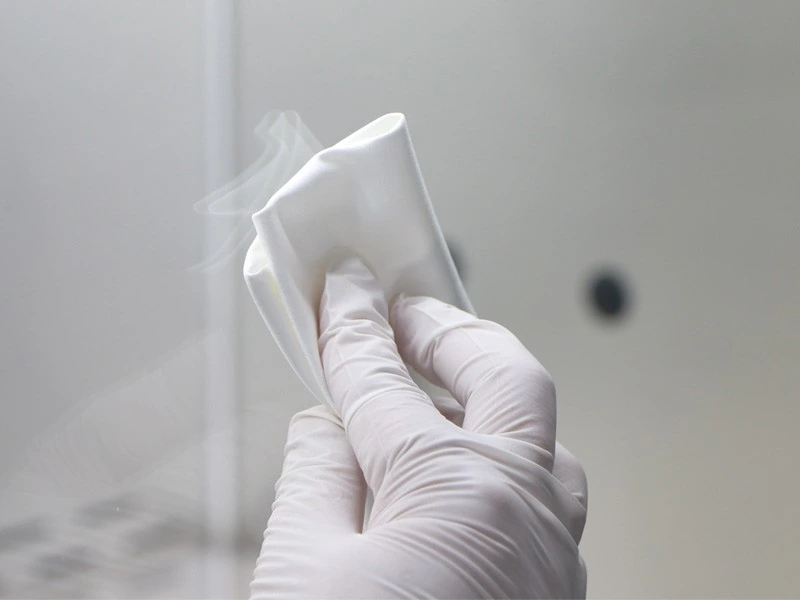

For a controlled wet-cleaning pass
HK509A provides a fine knitted contact face that can collect loosened film from a suitable surface. Use enough approved cleaner to release the contaminant while avoiding liquid running into edges, mounts or assemblies.
For a separate finishing pass
Present an unused section of cloth after the initial removal step. Reusing the same loaded face can spread a thin residue that becomes visible only after drying.
Evaluate handling, not just softness
Softness is useful only if the cloth remains easy to control. Trial the actual sheet size, fold and glove combination. Check for bunching, loss of contact and snagging at the perimeter.
Where the process has defined particle or ionic limits, request evidence for the finished washed wipe. Keep the selected edge finish and packaging in the specification so subsequent batches are comparable to the trial sample.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 100 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Silicone oil; Liquid particle count (LPC); Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
