Cleanroom Wipes

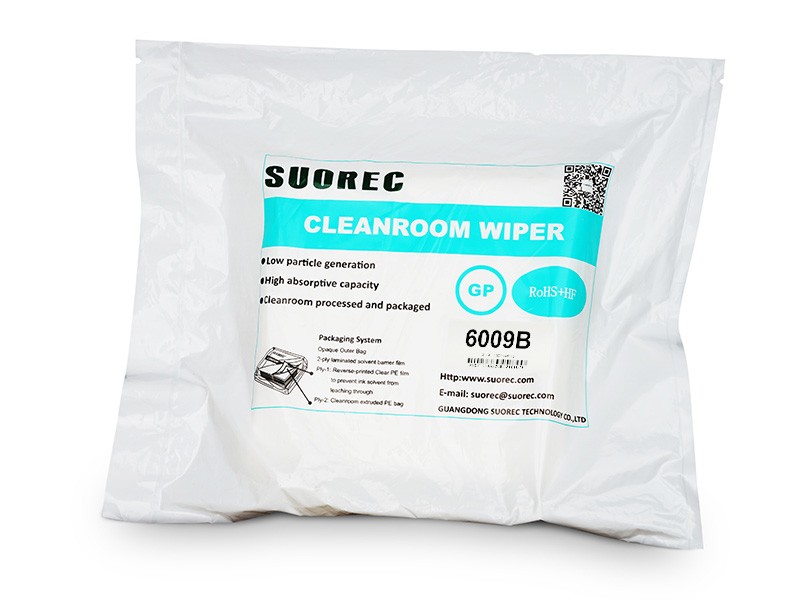

Microfiber Cleanroom Wipes 6009B 180 g/m²
| Material | Polyester and nylon |
|---|---|

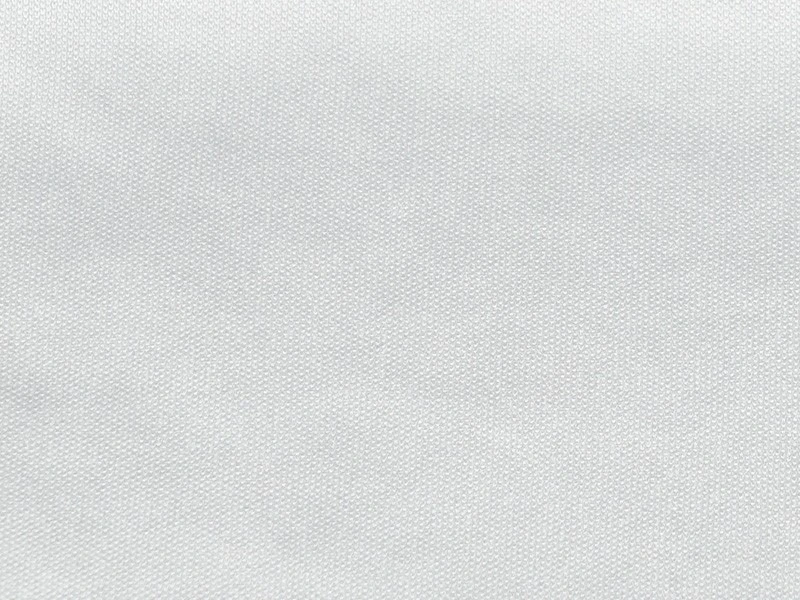

| Construction | Knitted straight texture |
| Basis weight | Nominal 180 g/m² |
| Thickness | 0.42 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in |
| Listed water absorption | ≥300 — unit/method to confirm |
| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
6009B is a polyester-nylon microfiber wipe for controlled removal of handprints and surface film. It offers a soft straight-knit contact face for precision cleaning trials.
Protect the cleaned surface from a second deposit
Removing a fingerprint is only part of the task. The cloth and cleaning liquid must also leave the surface within the required residue limit. Evaluate 6009B using the intended cleaner and an agreed final inspection rather than judging the wet surface alone.
Turn the wipe as it loads, keep the sealed rim away from the working face and use a fresh sheet when moving to a more sensitive surface.
Cleanliness is a finished-product requirement
Choose the washing process and packaging that match the transfer procedure. General cleanroom terminology is not a substitute for a particle, residue or ionic test relevant to the actual cleaning operation.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 100 | 20 |
| 9 × 9 in | 100 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Halogens; Ionic contamination; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
