Cleanroom Wipes
Blended Microfiber Cleanroom Wipes SH809L Mesh 156 g/m²
| Material | Polyester yarn blended with nylon composite yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 156 g/m² |
| Thickness | 0.40 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 10; Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥300 — unit/method to confirm |

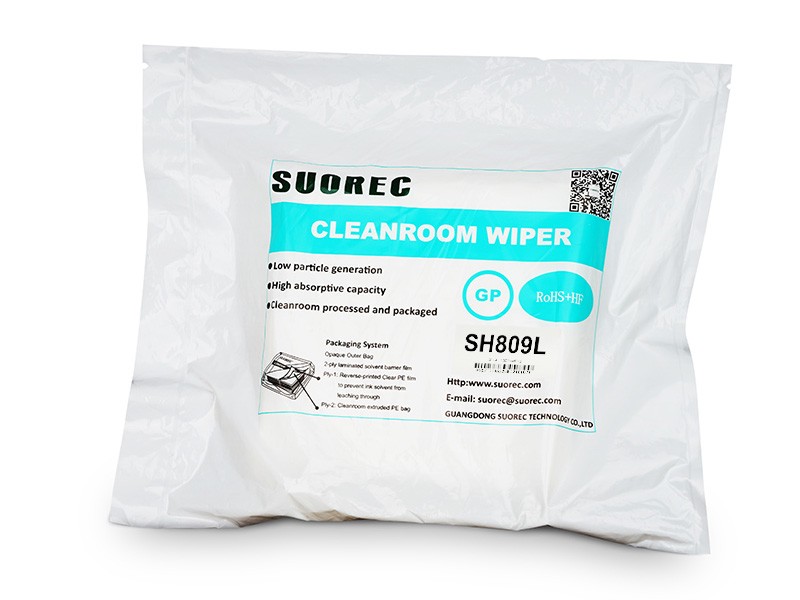

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.
SH809L is a blended polyester and microfiber mesh wipe for controlled surface cleaning. It provides a middle-weight option within the SH range, with pack formats for small and larger working areas.
A working fold for mixed contamination
Some cleaning steps involve fine dust followed by a residual oily film. SH809L can be evaluated as a blended mesh option for this combination, using an initial removal pass and a separate clean face for finishing.
Keep the cloth flat enough to contact the whole intended area. A bunched corner can concentrate pressure and leave an uneven result, particularly on a display or polished surface.
Sheet selection
A small sheet can be easier to control around fixtures, while a larger format offers more fresh folded faces. Choose around the area cleaned before replacement.
Pack planning
This model's published small-sheet packing differs from several neighbouring grades. Specify the sheet count and carton quantity explicitly rather than assuming the same pack across the whole SH family.
Qualify the finished washed product under the intended cleaner and handling conditions. The material blend is a construction choice, not a substitute for a cleanliness acceptance criterion.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 150 | 30 |
| 6 × 6 in | 150 | 20 |
| 9 × 9 in | 100 | 10 |
Packing shown follows the detailed specification. A separate listing gives different sheet counts; confirm the selected pack before ordering.
Fabric and product details
Documentation to request
RoHS; Silicone oil; Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
