Cleanroom Wipes
Blended Microfiber Cleanroom Wipes SH809G Mesh 130 g/m²
| Material | Polyester yarn blended with nylon composite yarn |
|---|---|
| Construction | Knitted mesh |
| Basis weight | 130 g/m² |
| Thickness | 0.37 mm |
| Edge options | Laser sealed; Ultrasonic sealed; Hot cut; Wide ultrasonic seal |
| Washing designations | Class 10; Class 100; Class 1000 |
| Size options | 4 in; 6 in; 9 in; 12 in; Custom sizes |
| Listed water absorption | ≥300 — unit/method to confirm |

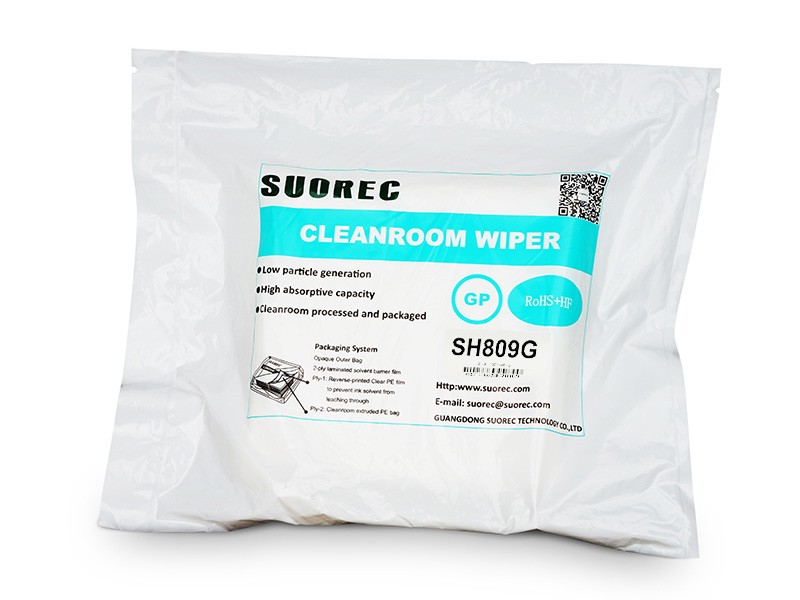

| Packaging | Vacuum inner pack with two-layer outer packaging |
Washing designations describe processing options, not sterility. Absorption figures require a confirmed test unit and method before comparison.

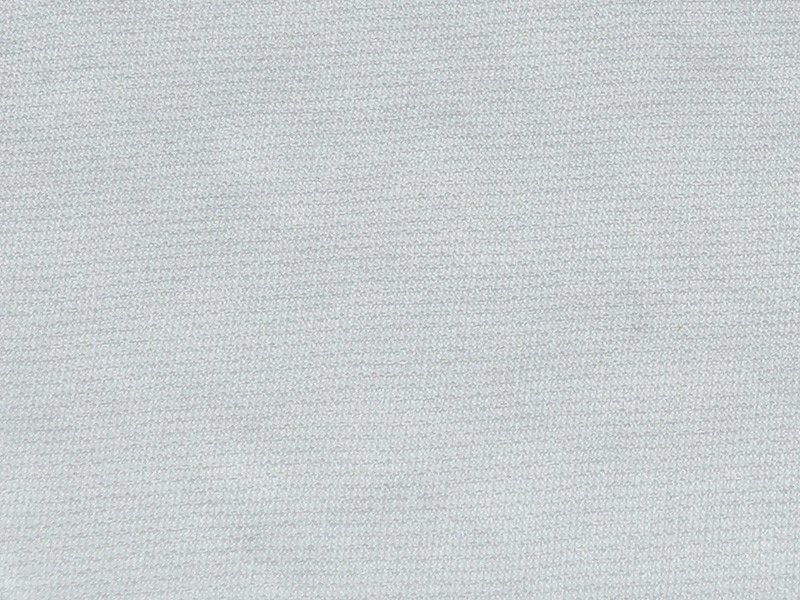

SH809G combines polyester yarn with a microfiber composite yarn in a knitted mesh. It is a lighter blended option for buyers comparing fabric durability, handling and residue-removal performance.
Compare the blend on the cleaning task
The SH809G construction combines an open mesh with fine-fibre contact. This gives a useful alternative to evaluate against a conventional polyester wipe or an all-microfiber construction when the task involves both loose particles and surface film.
Use the same contaminant, cleaner and wiping method for each sample. Compare the dried surface and the condition of the cloth after a defined number of passes; material descriptions alone cannot establish which option will last longer in a particular operation.
Keep the lighter mesh controllable

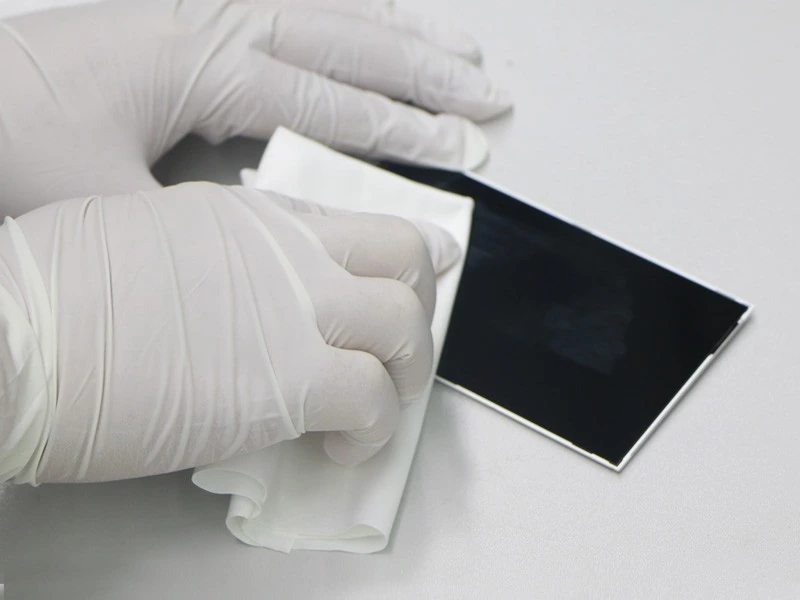

Fold the sheet into a flat contact area and change the face as soil accumulates. If the mesh catches on a feature, review the edge finish or the holding method instead of pulling it across the part.
Ordering the tested configuration
Record the chosen washing designation and edge treatment together. The blended fabric does not remove the need for finished-wipe particle or residue evidence where the process has defined limits.
Sheet sizes and packing
| Sheet size | Sheets / bag | Bags / carton |
|---|---|---|
| 4 × 4 in | 400 | 20 |
| 6 × 6 in | 100 | 20 |
| 9 × 9 in | 100 | 10 |
Confirm the selected size, edge, washing condition and packing together when ordering.
Fabric and product details
Documentation to request
RoHS; Liquid particle count (LPC); Cleanliness.
Confirm report availability, test method and applicability to the selected finished product before ordering.
Application areas
Electronics production; Medical inspection work areas; Chemical processing; Assembly; Glass products; Laboratory research; Semiconductor processes; LCD panels; Optical products; Precision electronics; Pharmaceutical production; Biomedical work areas.
Choose the contact surface, cleaner and acceptance criteria for the actual task. An application listing does not establish sterile or medical-device status.
Contact shengtongjh to discuss the sheet size, finishing and packing required for your application.
