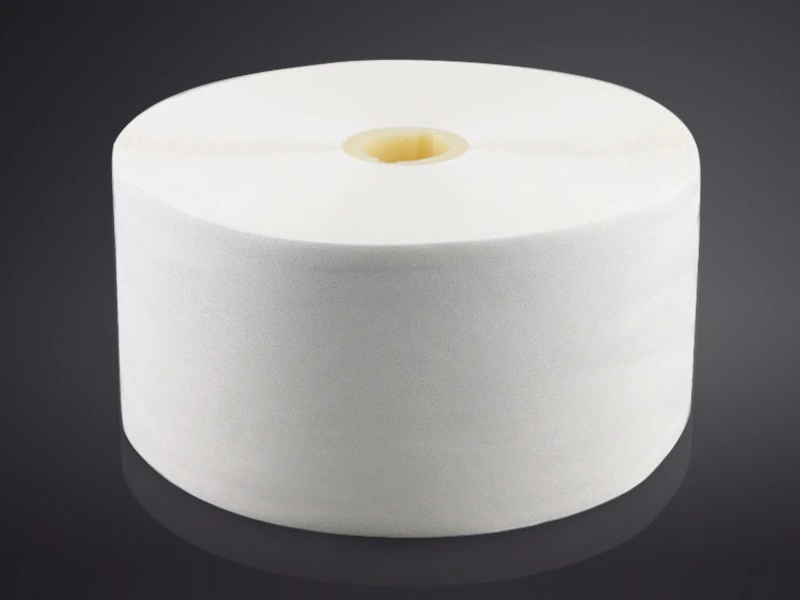

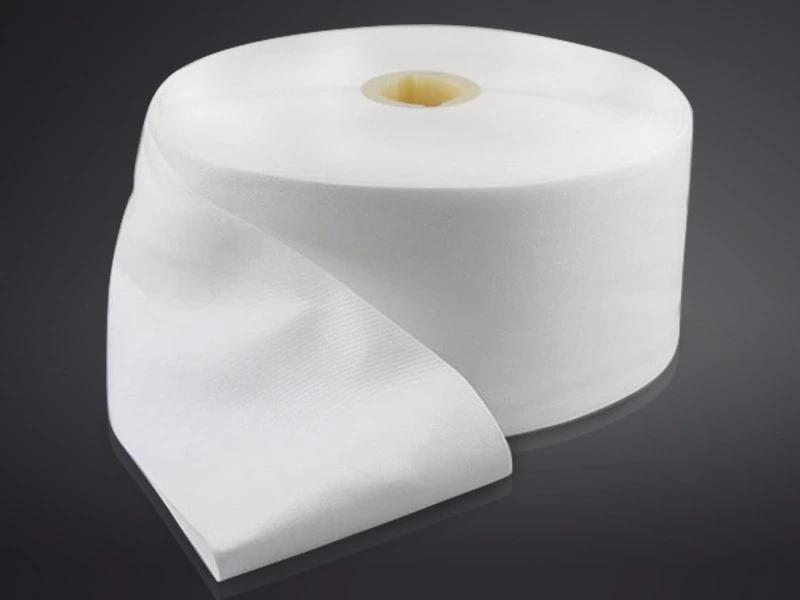

Roll presentation for S5009
Photos show product, fabric and converting views from this roll range. Final roll size and core follow the approved order.
Cleanroom Wiper Rolls

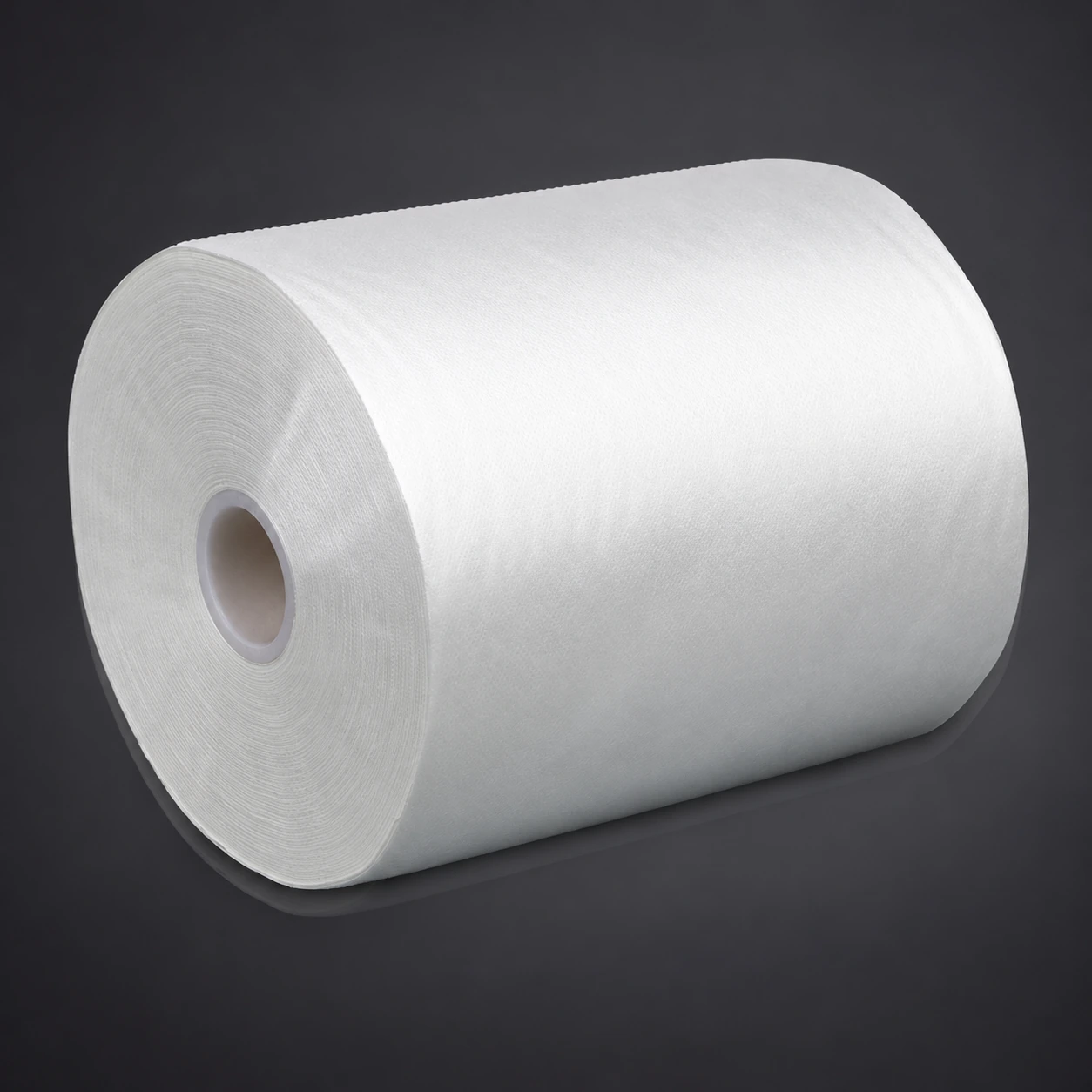

S5009 Plain-Woven Microfiber Wiper Roll
| Product code | S5009 |
|---|---|
| Fabric / surface | Woven microfiber; Irregular pattern; confirm against approved sample |
| Fabric weight | 103 g/m² |
| Cloth thickness | 0.25 mm |
| Edge finish | Ultrasonic |
| Custom roll sizes | Width 8–250 mm; length 10–200 m, subject to fabric and machine fit |
| Core interface | 25.2 mm bore shown; core sizes 25–76 mm listed. Confirm bore and core length by drawing. |
| Clean-processing options | Class 10 / 100 / 1000; agree supply protocol |
| Water absorption (listed) | ≥230 — unit and test method require confirmation |
| Packaging | 1 roll/bag; box and carton quantity by order. Range packing: 10 rolls/box, 8 boxes/carton. |
| Documentation | Request current RoHS report for the selected supply |
| Applications | LCD panels; optical products |
Weave confirmation: the product title says plain weave; the texture field says irregular pattern. Approve a current fabric sample. Clean-processing labels are supply options; confirm the absorption test before order.
S5009 is a woven microfiber roll for repeated optical and LCD cleaning. Confirm the intended fabric pattern against a current sample when approving the material and machine settings.
Match the weave to the approved sample
S5009 is named as plain-woven microfiber in the product title, while its texture field describes an irregular pattern. Confirm the intended weave against a current fabric sample before ordering. The material code should identify the approved sample and converting specification together.
Continuous wiping for optical production
This woven microfiber roll is listed for LCD-panel and optical-product cleaning, with ultrasonic edge sealing. A continuous web can bring clean cloth into the contact zone without handling individual sheets at each cycle. The advance step must still be long enough to move the used area away from the next part.
When introducing S5009, check the cloth path with both dry and wetted material. Look at the guide entry, head contact and take-up winding as one system. A stable roll at the spindle can still develop a fold after passing a misaligned guide.
Keep acceptance criteria measurable
- Identify the surface and residue used in the cleaning trial.
- Record the approved liquid, wetting quantity and inspection method.
- Confirm fabric construction, thickness and edge finish against the sample.
- Check roll width, core interface, length and maximum winding diameter.
- Define the clean-processing and documentation requirements for the selected supply.
These checks provide a practical basis for approval without inferring a guaranteed result from a weave name or a general cleanroom designation.
S5009 roll format and packaging can be customized after the fabric construction and application are agreed.
